GAC Trumpchi S9

GAC Trumpchi S9

$33,900

*Low configuration price, for reference only, contact us for specific prices



The GAC Trumpchi S9 is a new high-end new energy SUV to be launched by GAC Trumpchi in 2025, positioned as a mid-sized plug-in hybrid model with a body length of over 5 meters and a wheelbase of 2,930mm, offering 5-seat and 6-seat versions. The vehicle adopts Ningde Times Snapdragon Super Hybrid battery technology, with a combined range of over 1,000 kilometers and a pure electric range of 202 kilometers, and is equipped with Huawei’s Qian Kun Intelligent Driving System and the Hongmeng Cockpit, which supports the L3-level Smart Driving function.

If you are interested in this model or have any other automotive needs, please feel free to contact us using the form below. With over ten years of experience in the automotive trade, we are here to solve all your problems and provide the best solutions for your requirements.



Category: Tags: ,

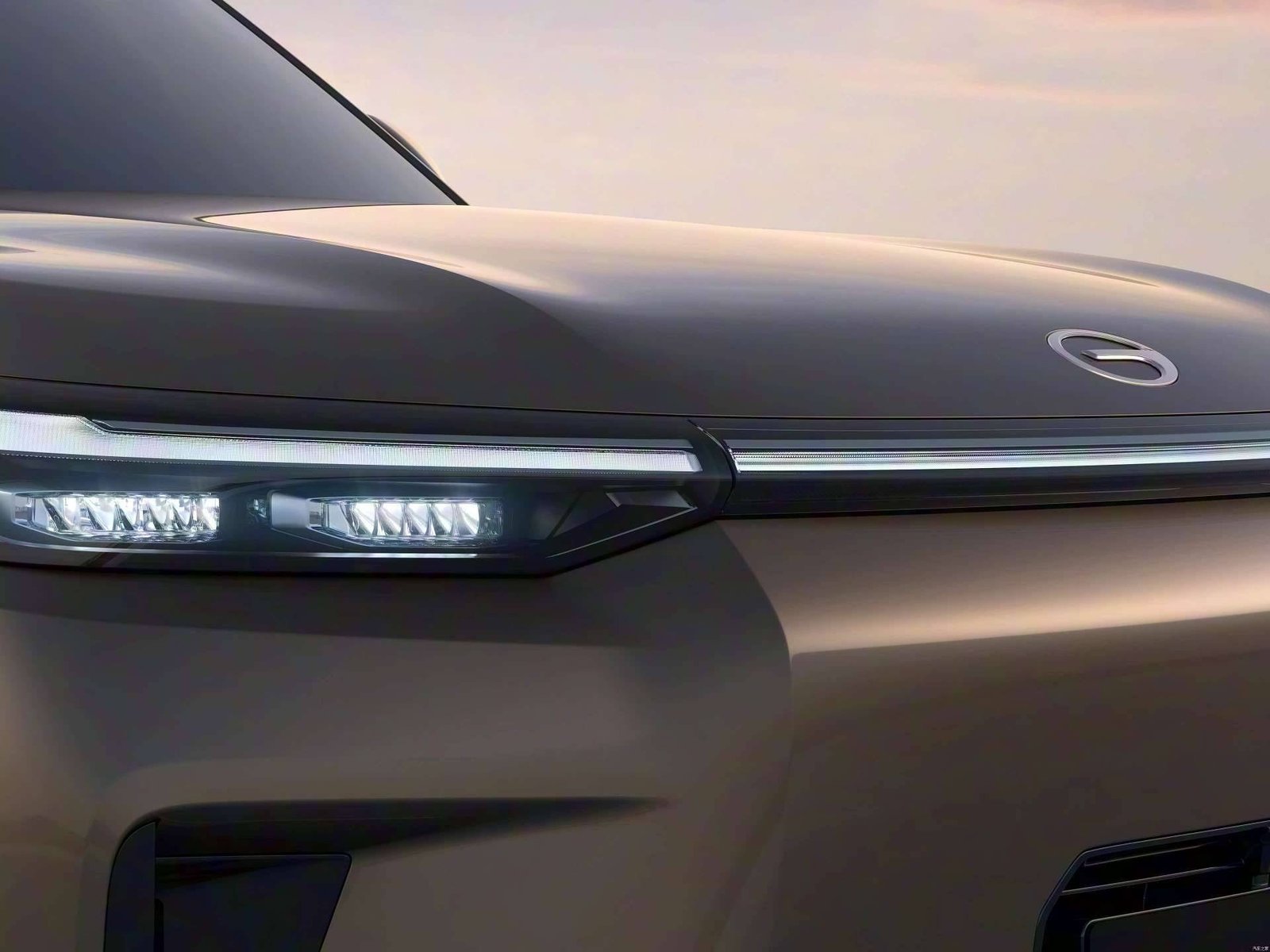

Exterior Design

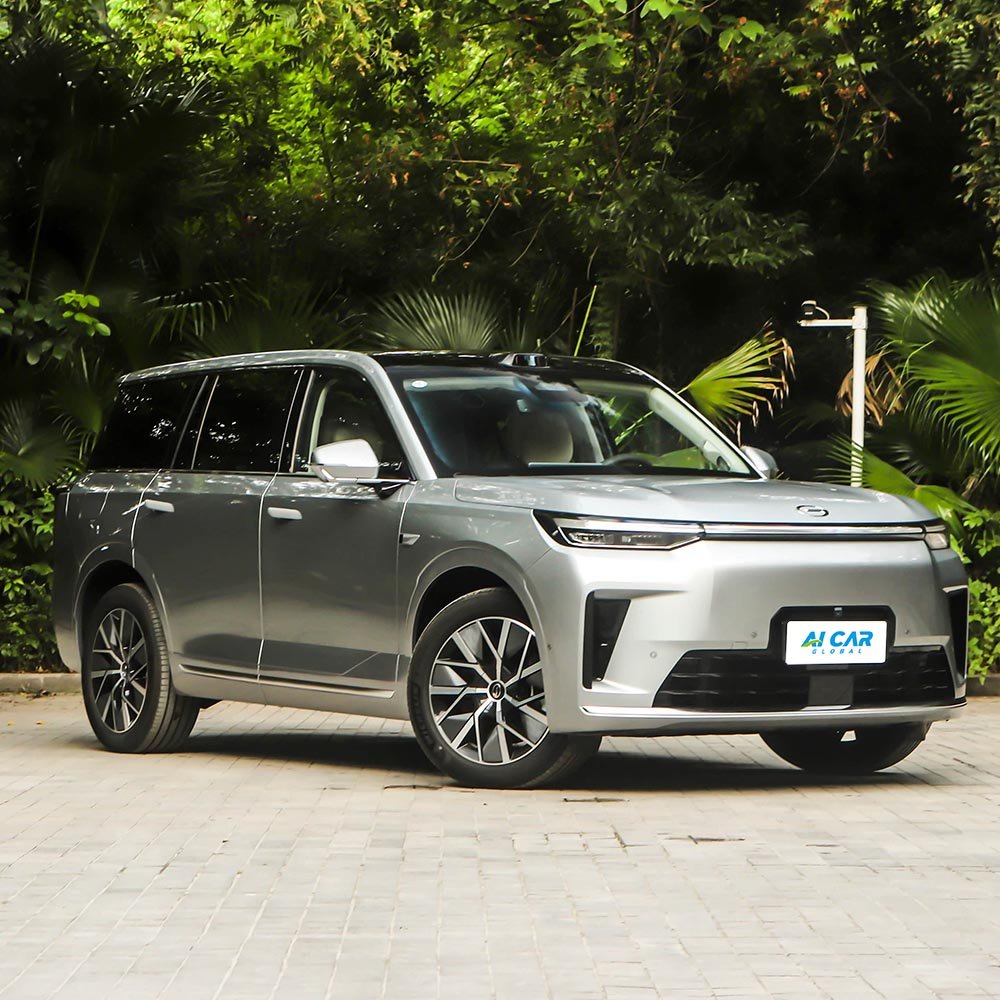

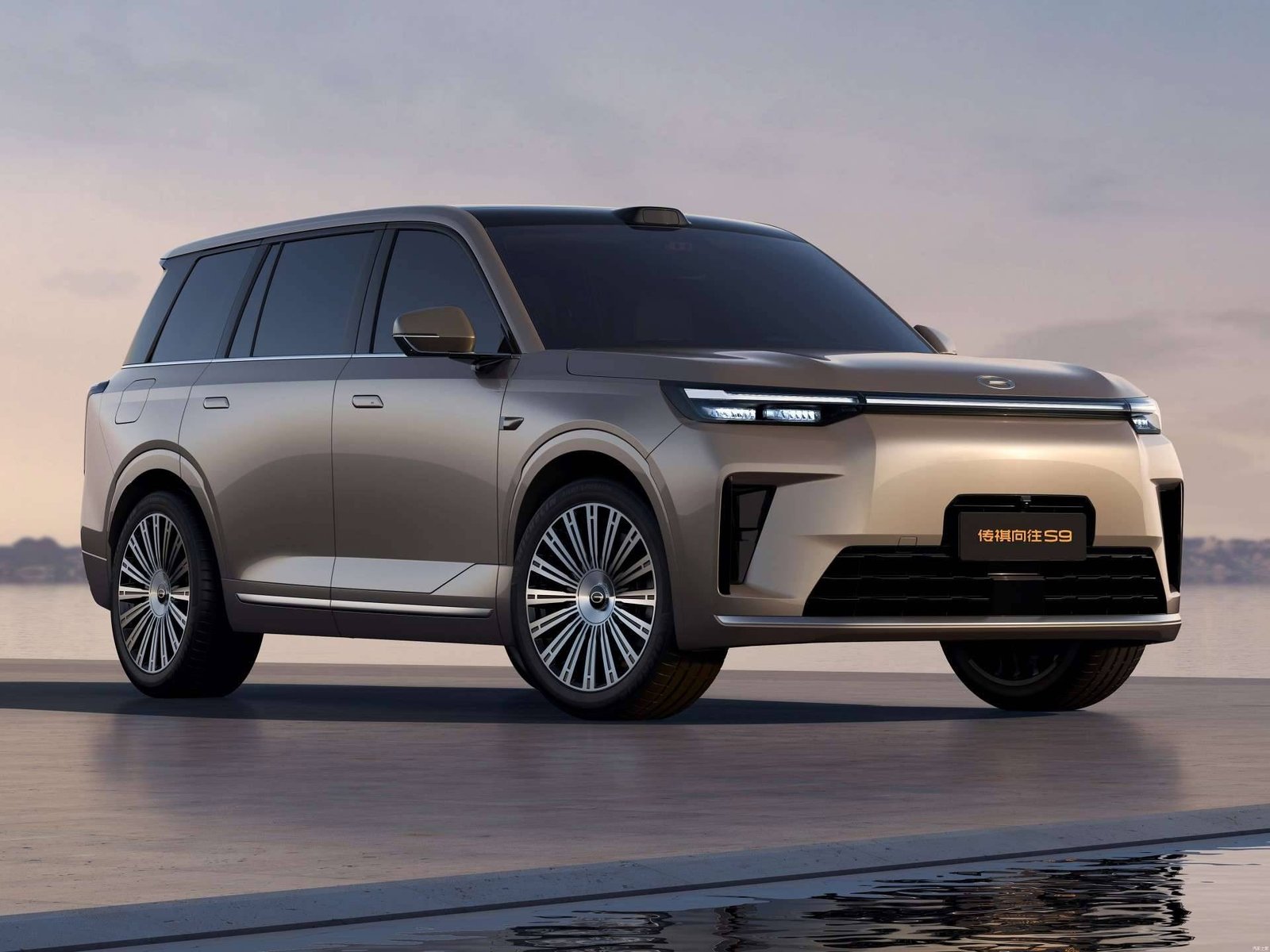

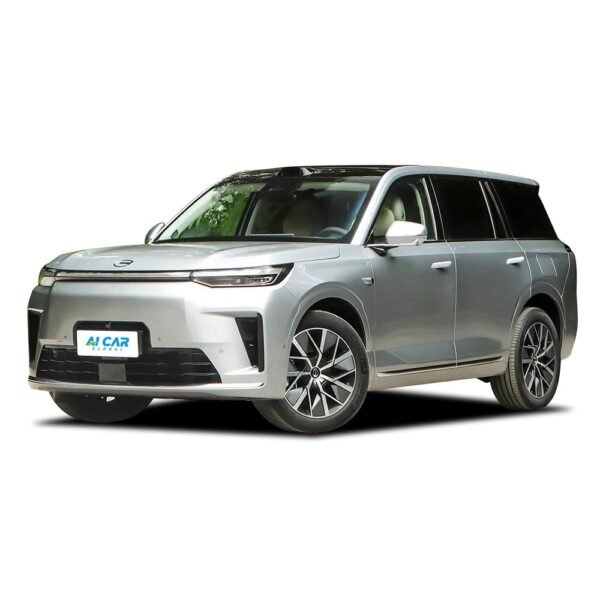

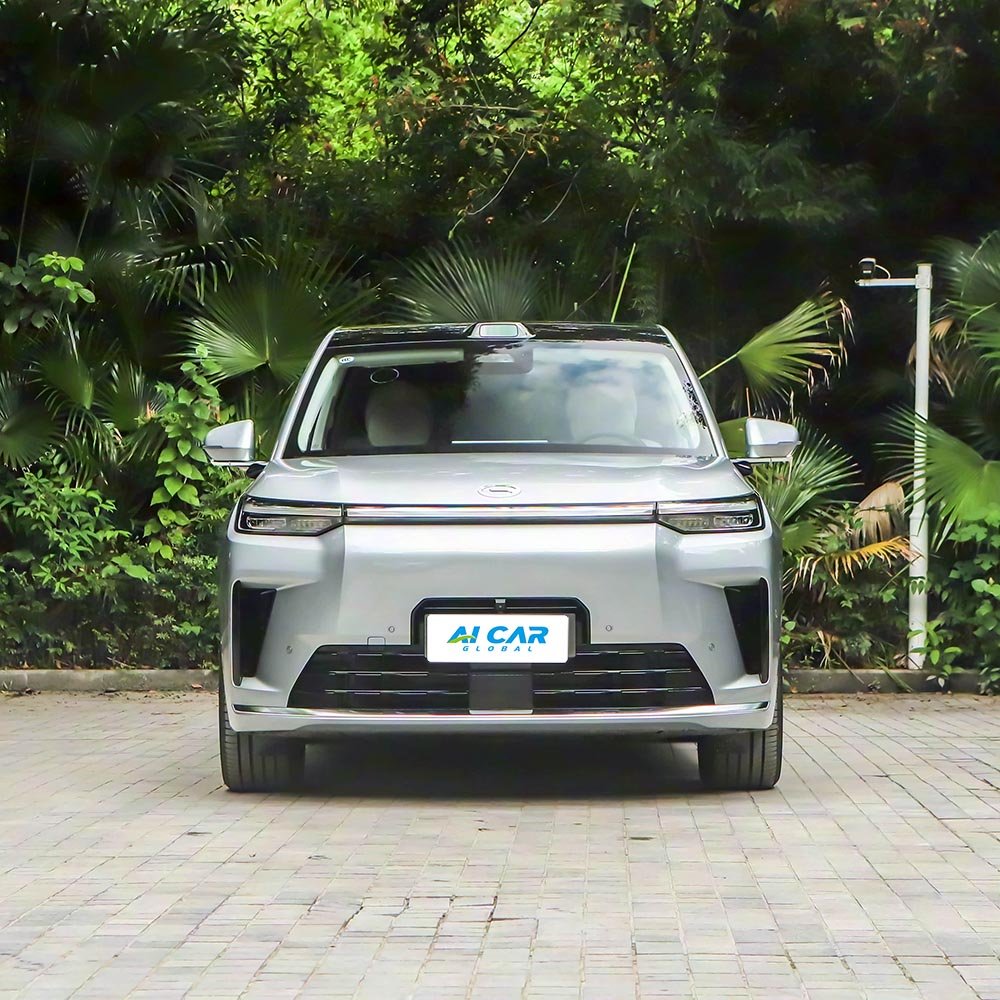

GAC Trumpchi S9 is a large-size SUV, similar to the design language of GAC Trumpchi S7, the overall body adopts a more square silhouette, the front end is a closed style, the headlamps are implanted with a penetrating LED light band, which is quite a sense of science and technology when it is lit up, and the transverse light bands show a strong sense of science and technology.

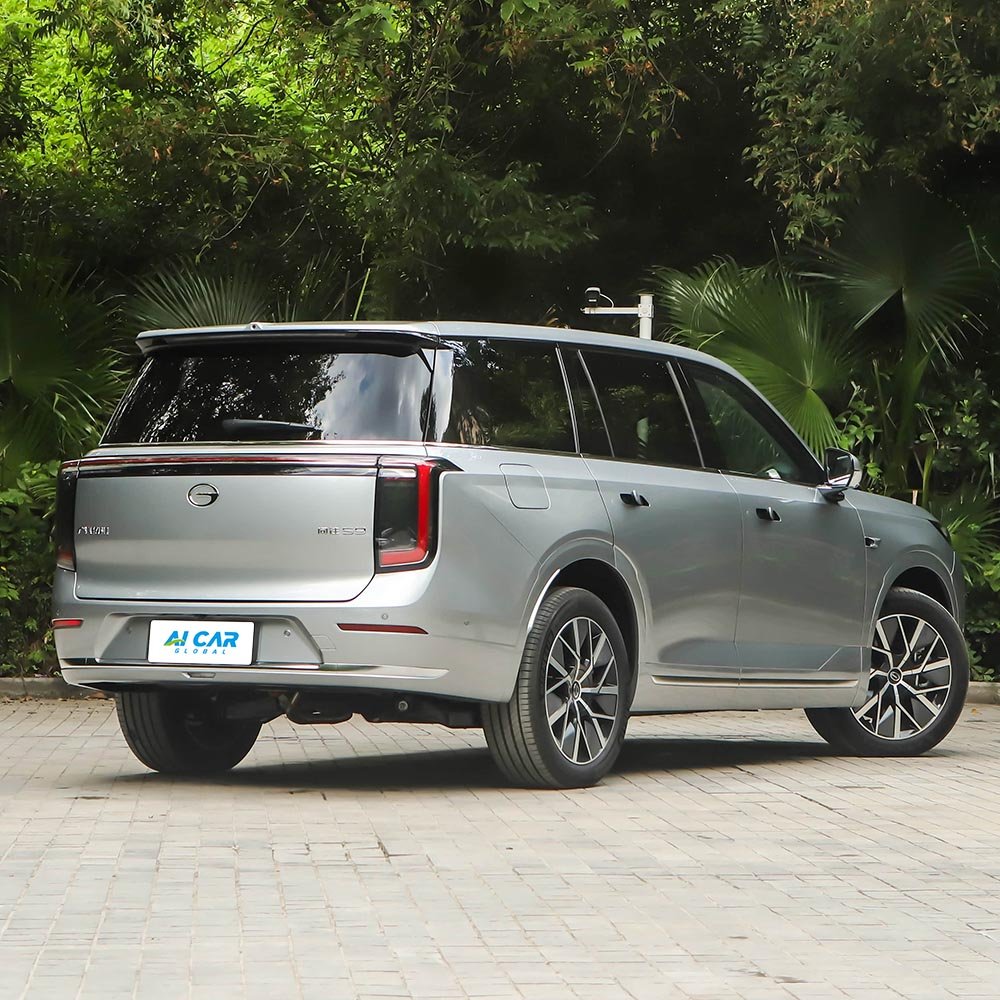

The side body of the S9 is tall and heavy, with a luxurious double color design, equipped with hidden door handles, wheels and Maybach’s “big cake wheels” are very similar to provide three different styles of rims to choose from, matching tire specifications of 255/50 R20 and 265/45 R21 two kinds of, the main focus on a sense of luxury. Dimensions, length, width and height dimensions of 5060 × 1950 × 1760mm, wheelbase of 2930mm, in the medium and large SUV size is more obvious.

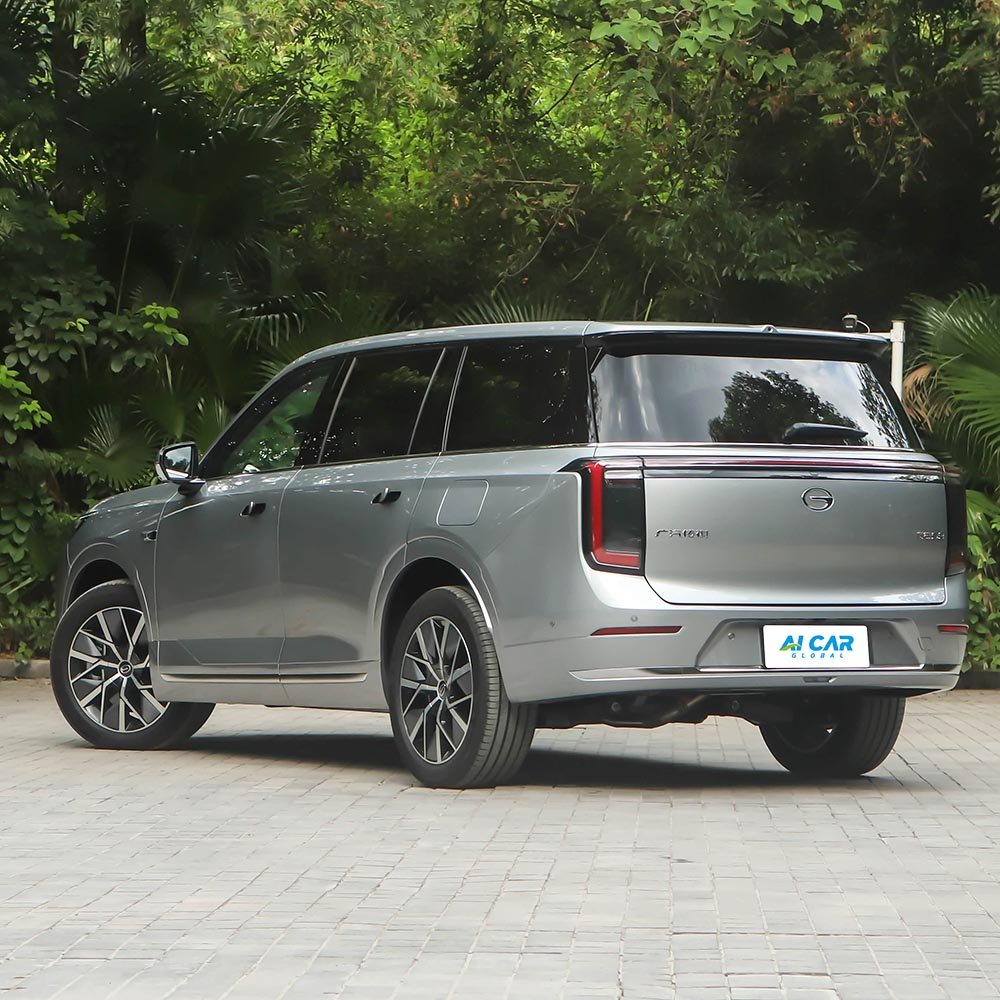

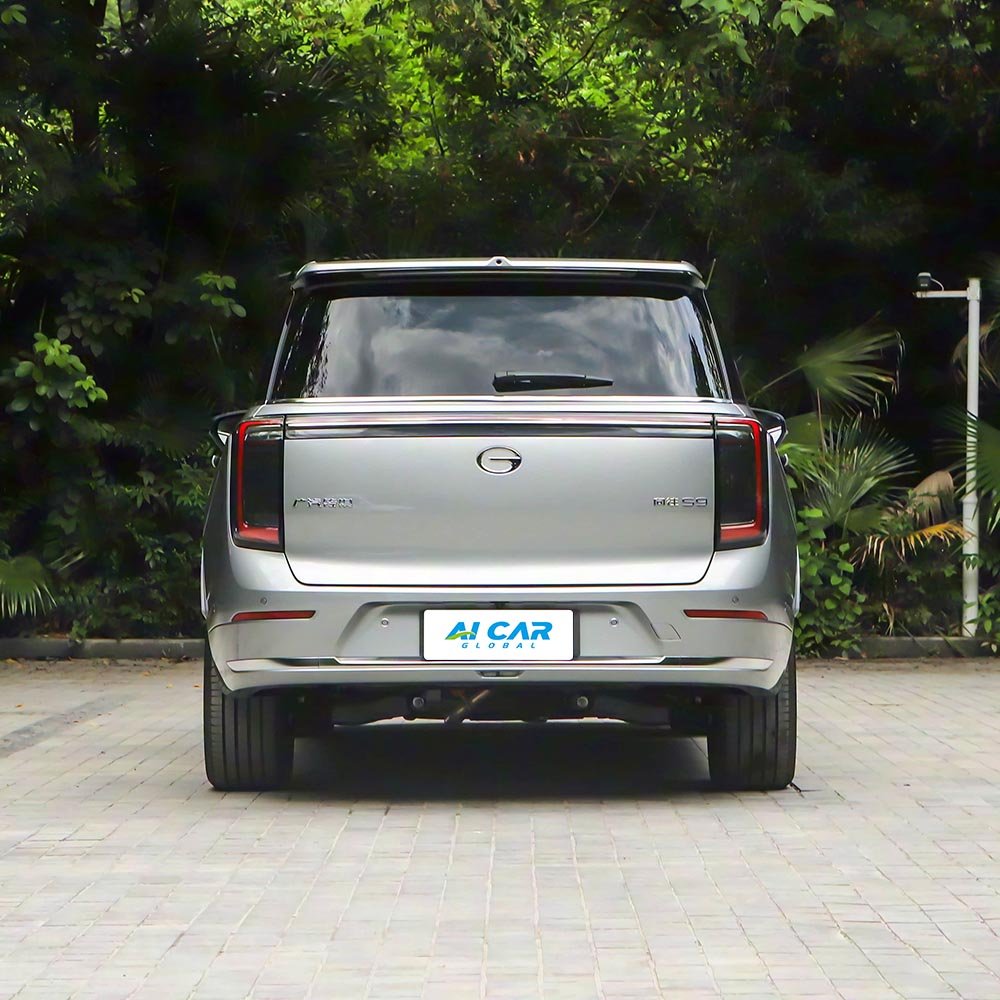

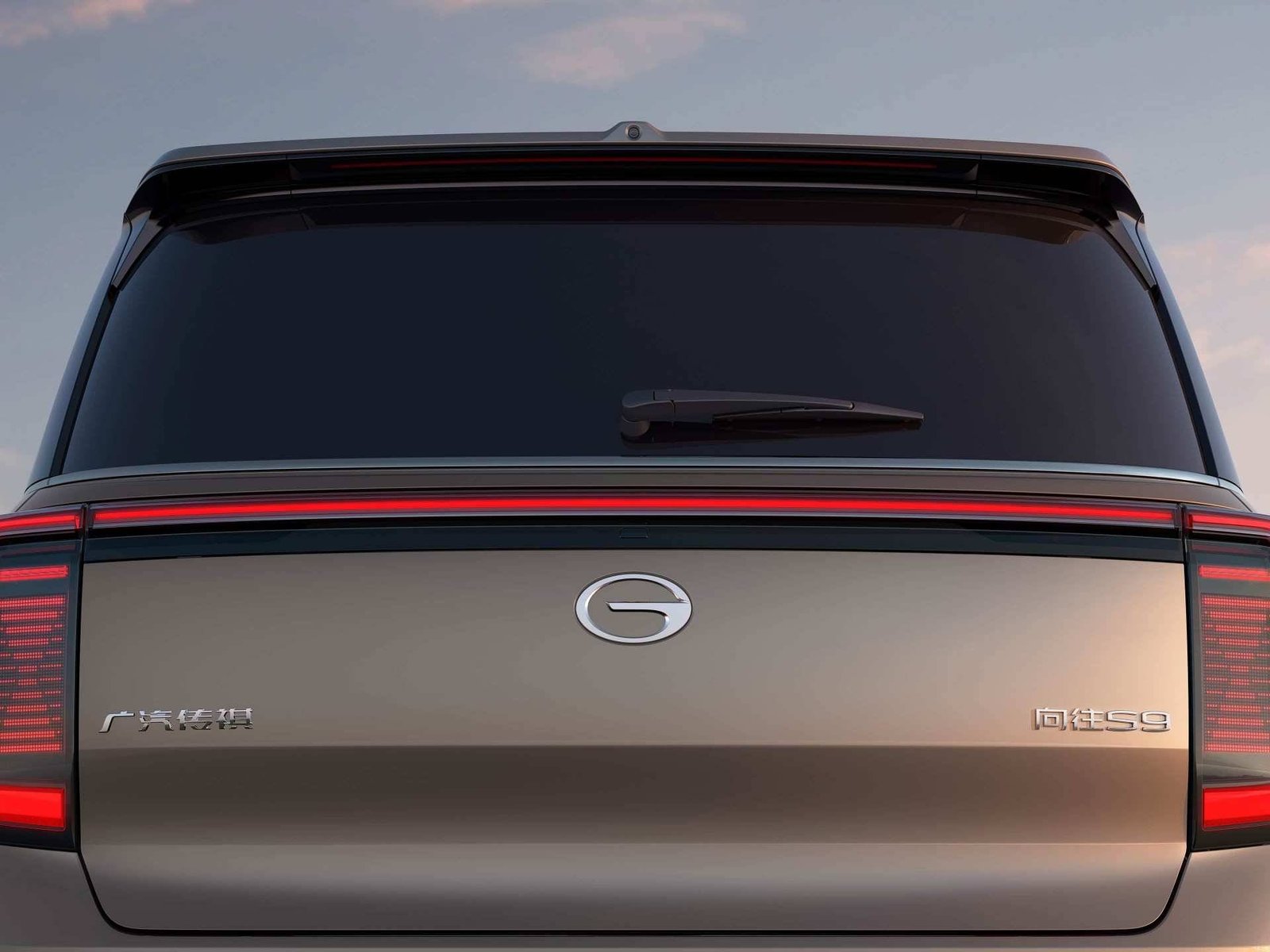

The rear part of the style is very similar to that of the S7, but the shape is more square, the type is very simple, and the tail window area is large. The taillights still adopt a through-type design and bend downward on both sides, bringing a C-shaped light band that is very recognizable and echoes well with the front end of the car.

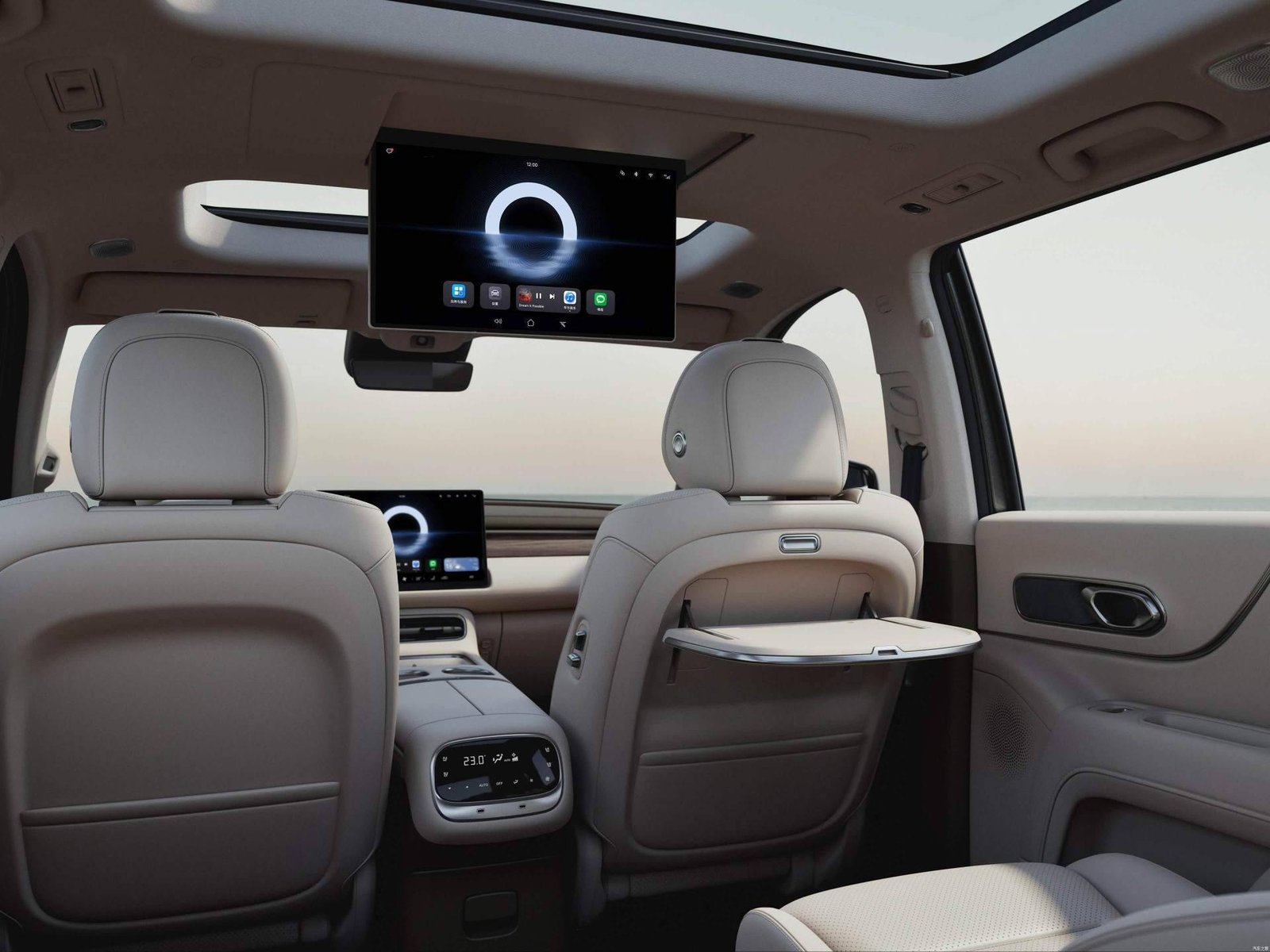

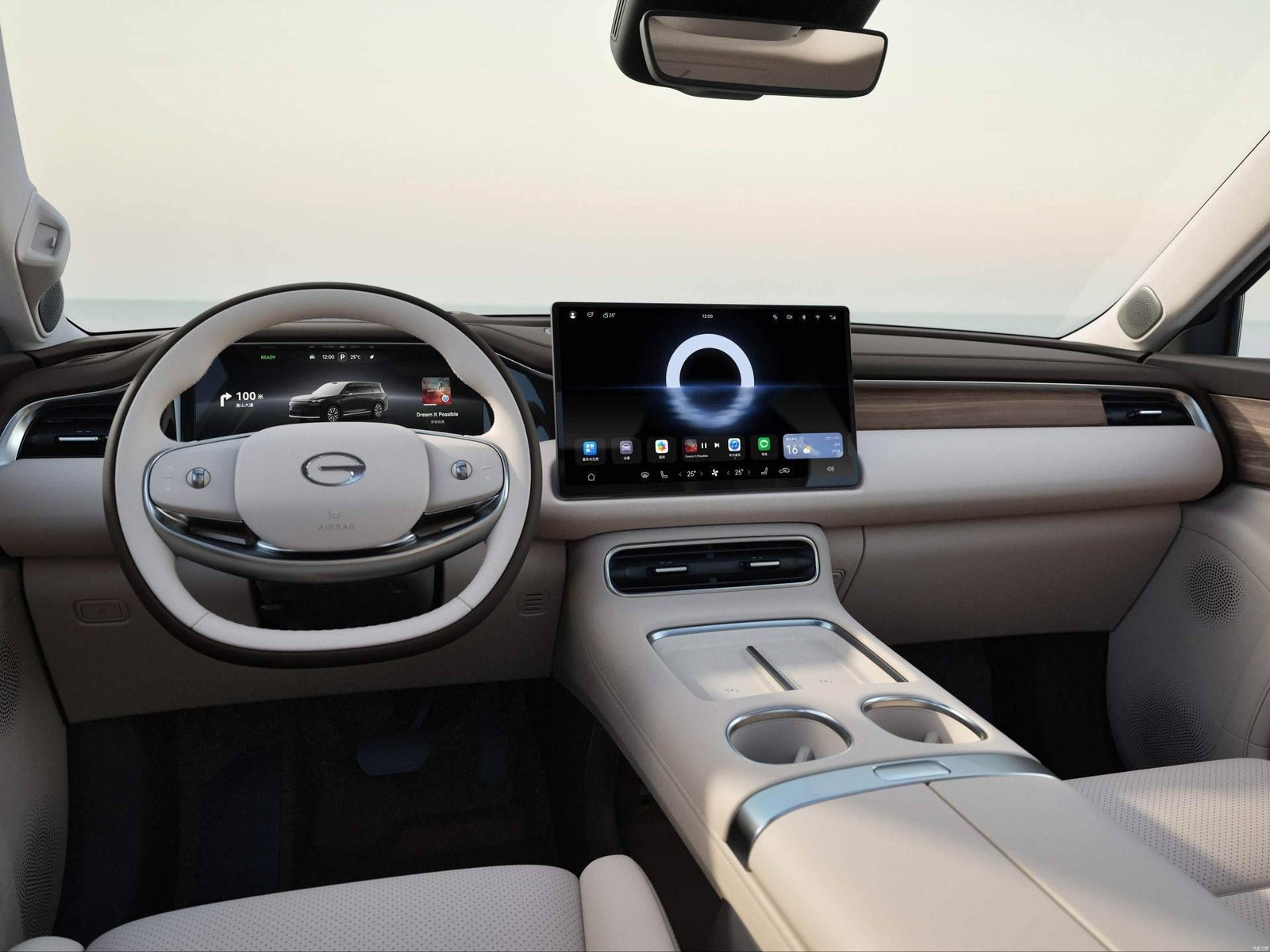

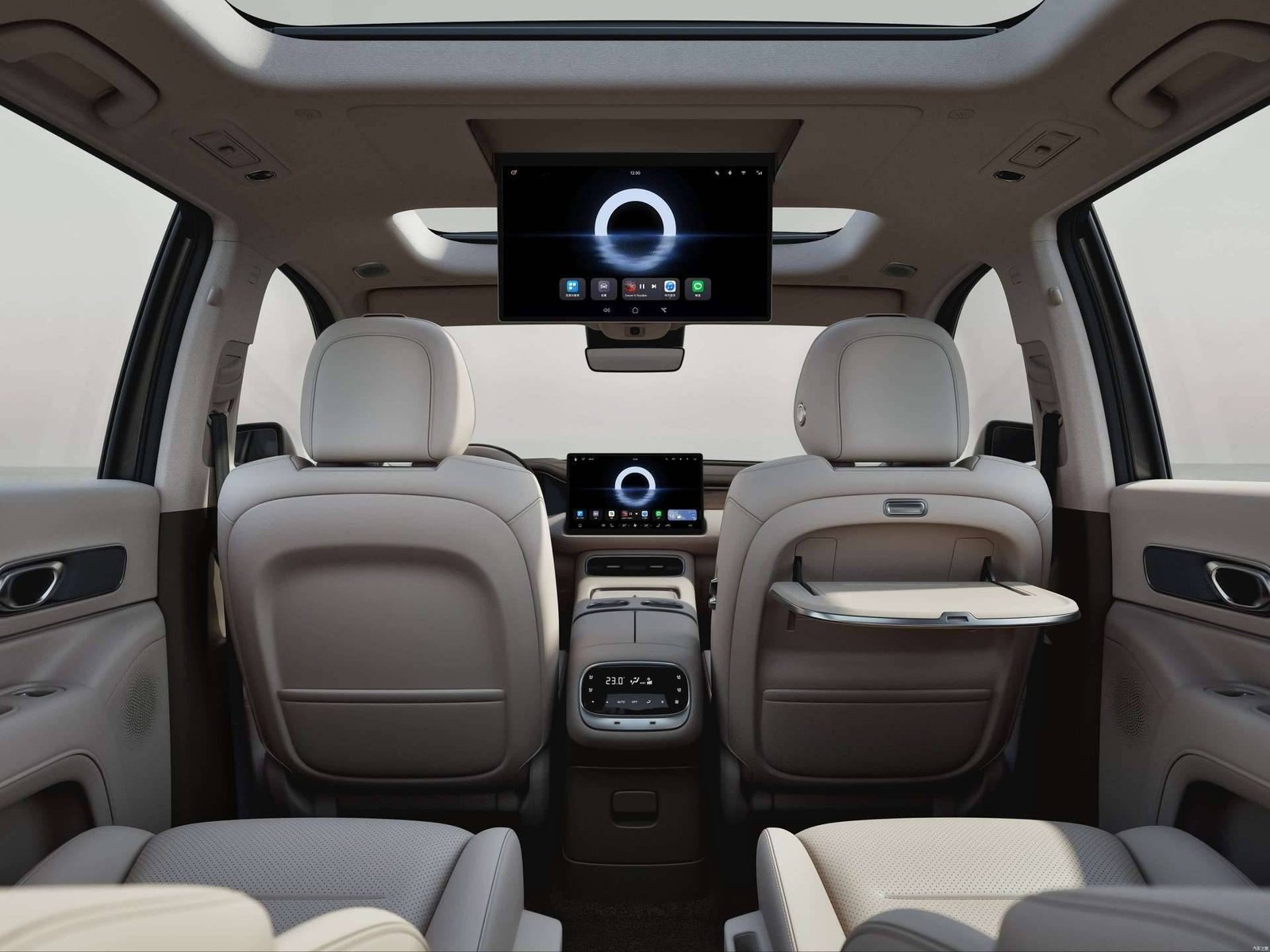

Interior Design

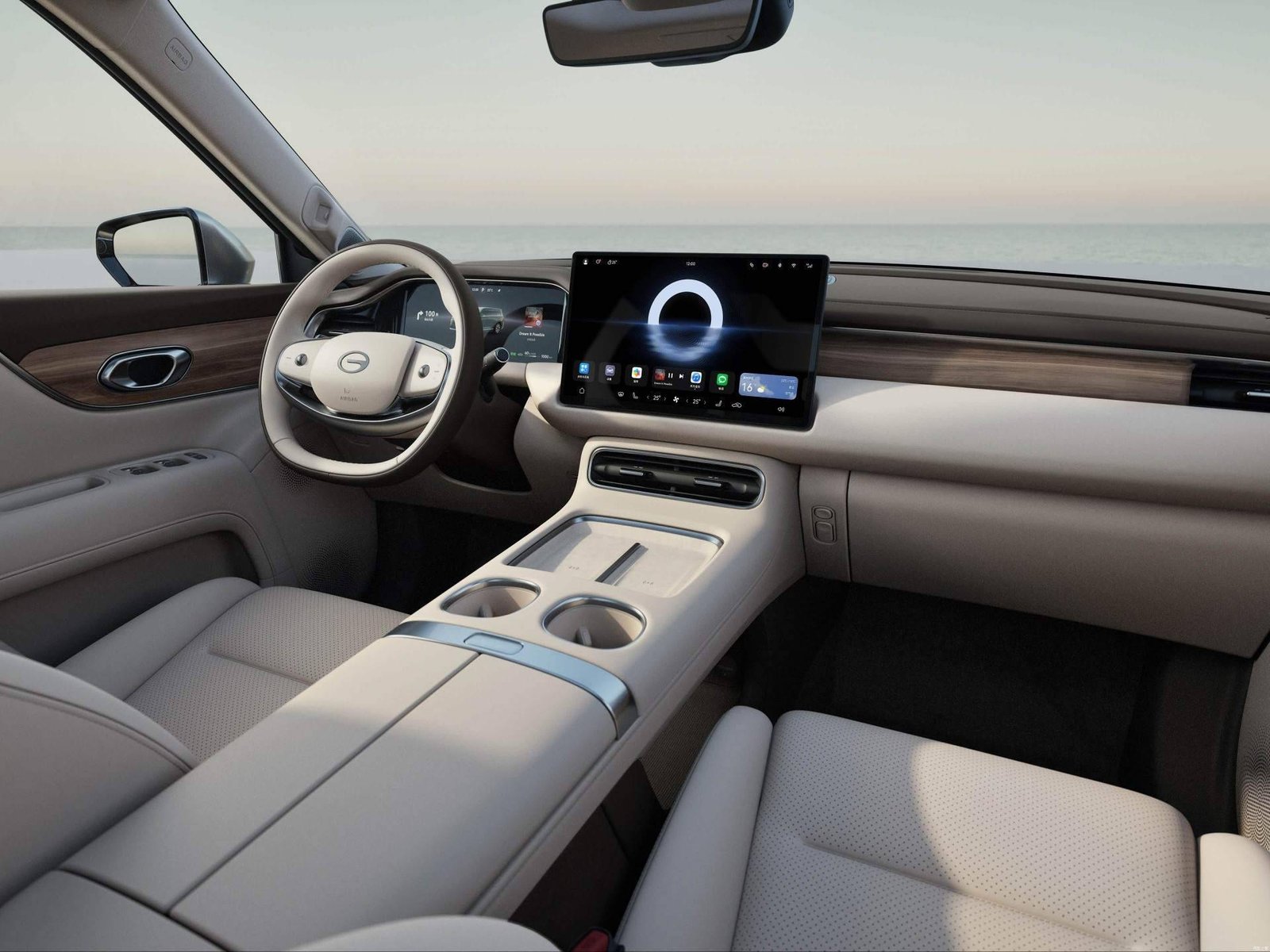

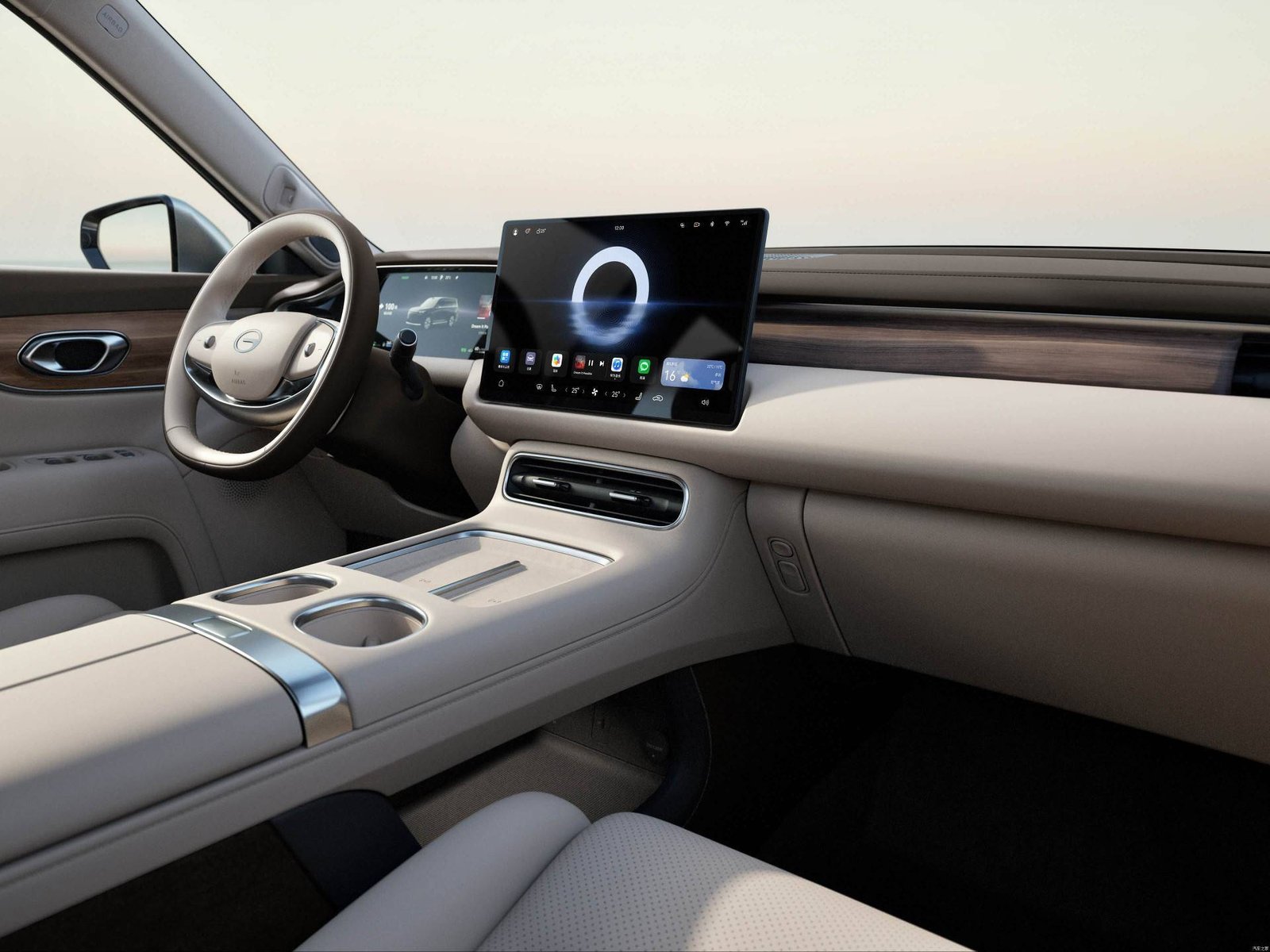

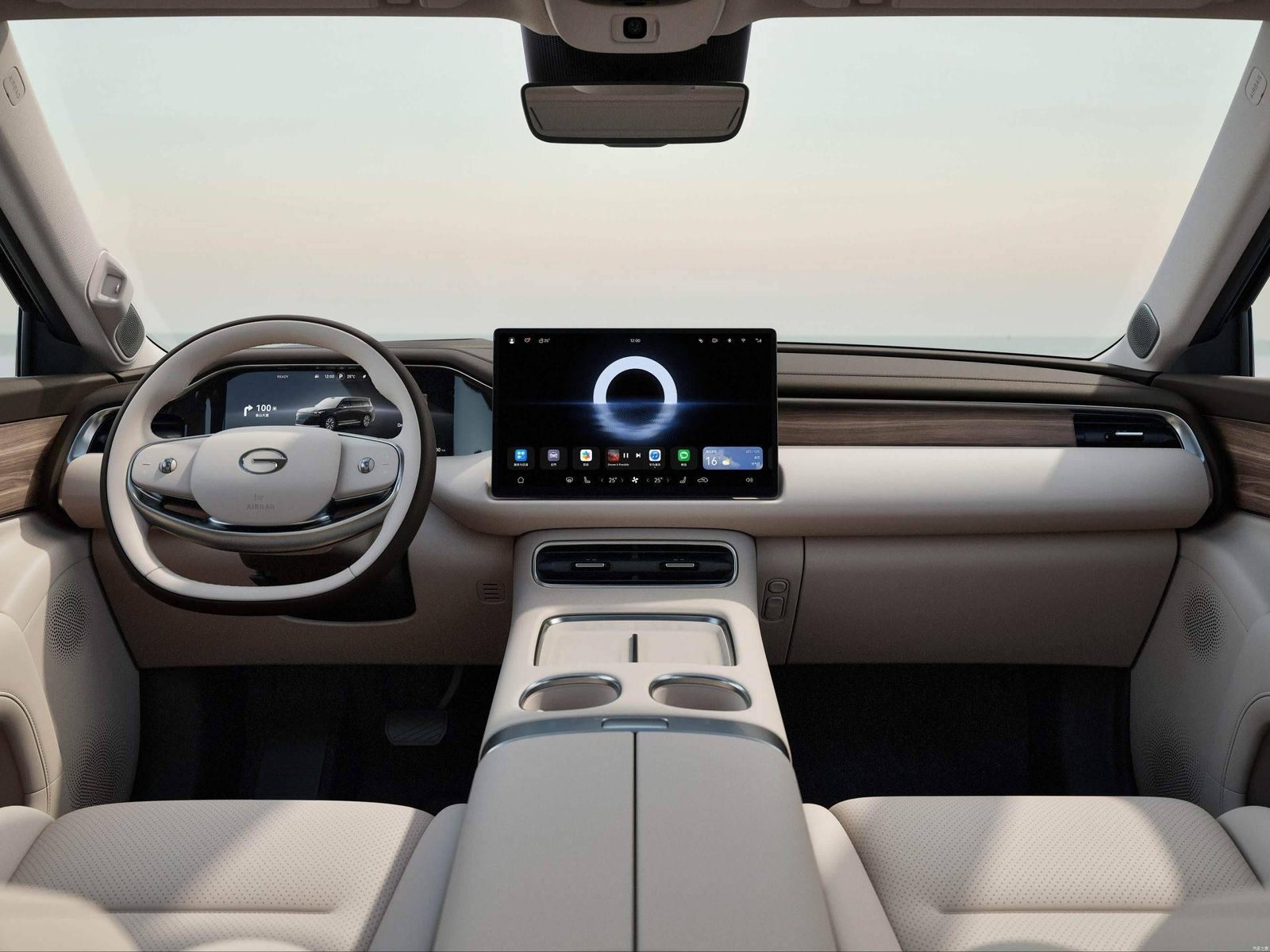

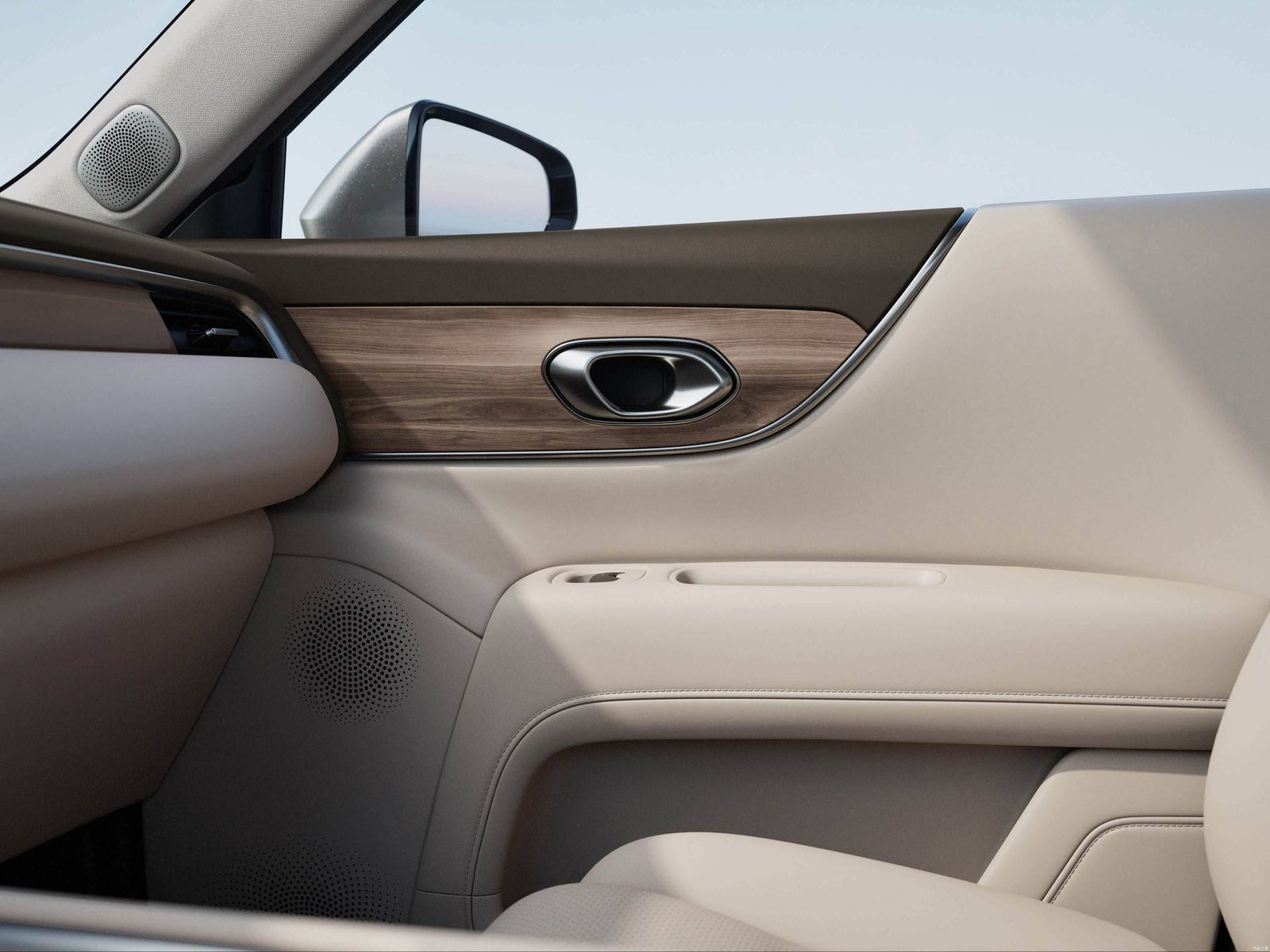

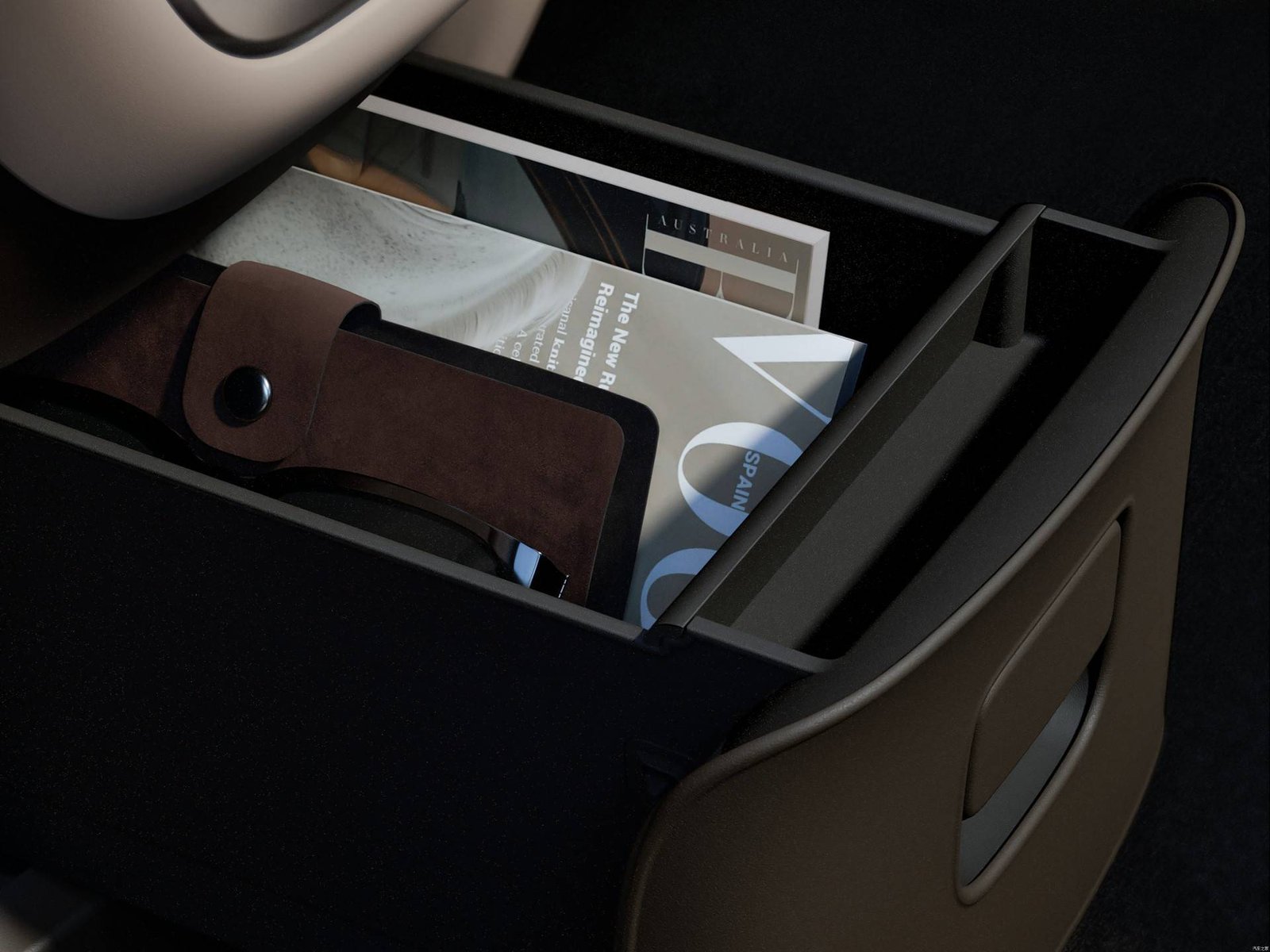

The interior design of the GAC Trumpchi S9 is also a simple new energy style, the center console adopts a floating T-shaped layout, the full LCD instrumentation embedded, the center control screen adopts an independent floating layout, the size is more substantial. The cockpit is made of exquisite materials, and large areas are covered with soft materials. The seats are wrapped in leather, and the passenger seat has a zero gravity mode and is equipped with massage, a small table board on the back of the seat and a boss button. The second row dual independent seats are equipped with armrests and 148-degree backrest angle adjustment, while the three rows of seats are provided with full electric adjustment. The top is equipped with front and rear dual-segment sunroofs, a rear ceiling screen, reversible cup holders, and storage drawers.

Power

GAC Trumpchi S9 is equipped with a plug-in hybrid powertrain consisting of a 1.5T engine plus an electric motor, with a maximum engine power of 118 kW; in terms of batteries, the new car will be equipped with a ternary lithium battery pack from Era GAC Power Battery Co. with a capacity of 44.568 kWh, and the pure electric range of the Ministry of Industry and Information Technology (MIIT) is 202 kilometers.





2025 GAC Trumpchi S9 Qiankun Max 5-seater2025 GAC Trumpchi S9 Qiankun Max 6-seater2025 GAC Trumpchi S9 Qiankun Ultra 5-seater2025 GAC Trumpchi S9 Qiankun Ultra 6-seater
Basic Information
Time to market2025.092025.092025.092025.09
Body levelmid-to-large SUVsmid-to-large SUVsmid-to-large SUVsmid-to-large SUVs
Length*Width*Height(mm)5060*1950*17605060*1950*17605060*1950*17605060*1950*1760
Energy typeplug-in hybridplug-in hybridplug-in hybridplug-in hybrid
WLTC pure electric range (km)202202202202
CLTC pure electric range (km)252252252252
System total power (kW)368368368368
System comprehensive torque (N·m)613613613613
engine1.5T / 160 hp / inline 4-cylinder1.5T / 160 hp / inline 4-cylinder1.5T / 160 hp / inline 4-cylinder1.5T / 160 hp / inline 4-cylinder
Maximum power (kW)118118118118
Maximum torque (N·m)220220220220
Number of gears1111
gearboxDedicated hybrid transmission (DHT)Dedicated hybrid transmission (DHT)Dedicated hybrid transmission (DHT)Dedicated hybrid transmission (DHT)
Maximum speed (km/h)190190190190
0-100km/h acceleration (s)6.66.66.66.6
WLTC comprehensive fuel consumption (L/100km)0.560.560.560.56
Battery TypeTernary lithium batteryTernary lithium batteryTernary lithium batteryTernary lithium battery
Battery capacity (kWh)44.544.544.544.5
Fast charging time (h)0.230.230.230.23
Fast charging capacity (%)30-8030-8030-8030-80
Warranty PolicyFive years or 150,000 kilometersFive years or 150,000 kilometersFive years or 150,000 kilometersFive years or 150,000 kilometers
body
Length (mm)5060506050605060
Width (mm)1950195019501950
Height(mm)1760176017601760
Wheelbase (mm)2930293029302930
Front wheelbase (mm)1664166416641664
Rear wheelbase (mm)1676167616761676
Curb mass (kg)2365236523652365
Maximum full load mass (kg)2915291529152915
Luggage compartment volume (L)960-1950255-1005960-1950255-1005
Fuel tank capacity (L)60606060
Number of doors5555
Number of seats5656
Approach angle (°)17171717
Departure angle (°)twenty twotwenty twotwenty twotwenty two
engine
Displacement (mL)1498149814981498
Engine model4A15M34A15M34A15M34A15M3
Maximum horsepower (Ps)160160160160
Maximum power (kW)118118118118
Maximum net power (kW)115115115115
Maximum power speed (rpm)5500550055005500
Maximum torque (N·m)220220220220
Maximum torque speed (rpm)2750-35002750-35002750-35002750-3500
cylinderinline 4-cylinderinline 4-cylinderinline 4-cylinderinline 4-cylinder
Engine locationPrePrePrePre
Intake formturbochargedturbochargedturbochargedturbocharged
Valve structuredual overhead camshaftsdual overhead camshaftsdual overhead camshaftsdual overhead camshafts
Oil supply methodDirect injectionDirect injectionDirect injectionDirect injection
Cylinder materialaluminum alloyaluminum alloyaluminum alloyaluminum alloy
Fuel grade92#92#92#92#
Environmental standardsNational VINational VINational VINational VI
electric motor
Total motor power (kW)250250250250
Total torque of the motor (N·m)393393393393
Maximum power of front motor (kW)170170170170
Maximum torque of front motor (N·m)250250250250
Maximum power of rear motor (kW)80808080
Maximum torque of rear motor (N·m)143143143143
System total power (kW)368368368368
System comprehensive torque (N·m)613613613613
WLTC pure electric range (km)202202202202
CLTC pure electric range (km)252252252252
Battery capacity (kWh)44.544.544.544.5
Power consumption per 100 kilometers (kWh/100km)21.621.621.621.6
Fast charging time (h)0.230.230.230.23
Motor structurepermanent magnetpermanent magnetpermanent magnetpermanent magnet
How a motor workssynchronoussynchronoussynchronoussynchronous
Number of drive motorsDual motorsDual motorsDual motorsDual motors
Motor layoutFront and rearFront and rearFront and rearFront and rear
Battery TypeTernary lithium batteryTernary lithium batteryTernary lithium batteryTernary lithium battery
Battery cell brandTimes GACCATLCATLCATL
Battery cooling methodLiquid CoolingLiquid CoolingLiquid CoolingLiquid Cooling
Battery energy density (Wh/kg)172172172172
Fast charging functionsupportsupportsupportsupport
Fast charging capacity (%)30-8030-8030-8030-80
Energy recovery
Battery Pack WarrantyEight years or 160,000 kilometersEight years or 160,000 kilometersEight years or 160,000 kilometersEight years or 160,000 kilometers
Battery preheating
Discharge to the outside
Electric configuration
Fast charging power (kW)133133133133
Chassis/Steering
Drive typeFour-wheel driveFour-wheel driveFour-wheel driveFour-wheel drive
Front suspension typeMcPherson independent suspensionMcPherson independent suspensionMcPherson independent suspensionMcPherson independent suspension
Rear suspension typeMulti-link independent suspensionMulti-link independent suspensionMulti-link independent suspensionMulti-link independent suspension
Adjustable suspension
Power steering formElectric power steeringElectric power steeringElectric power steeringElectric power steering
Magic Carpet Intelligent Suspension

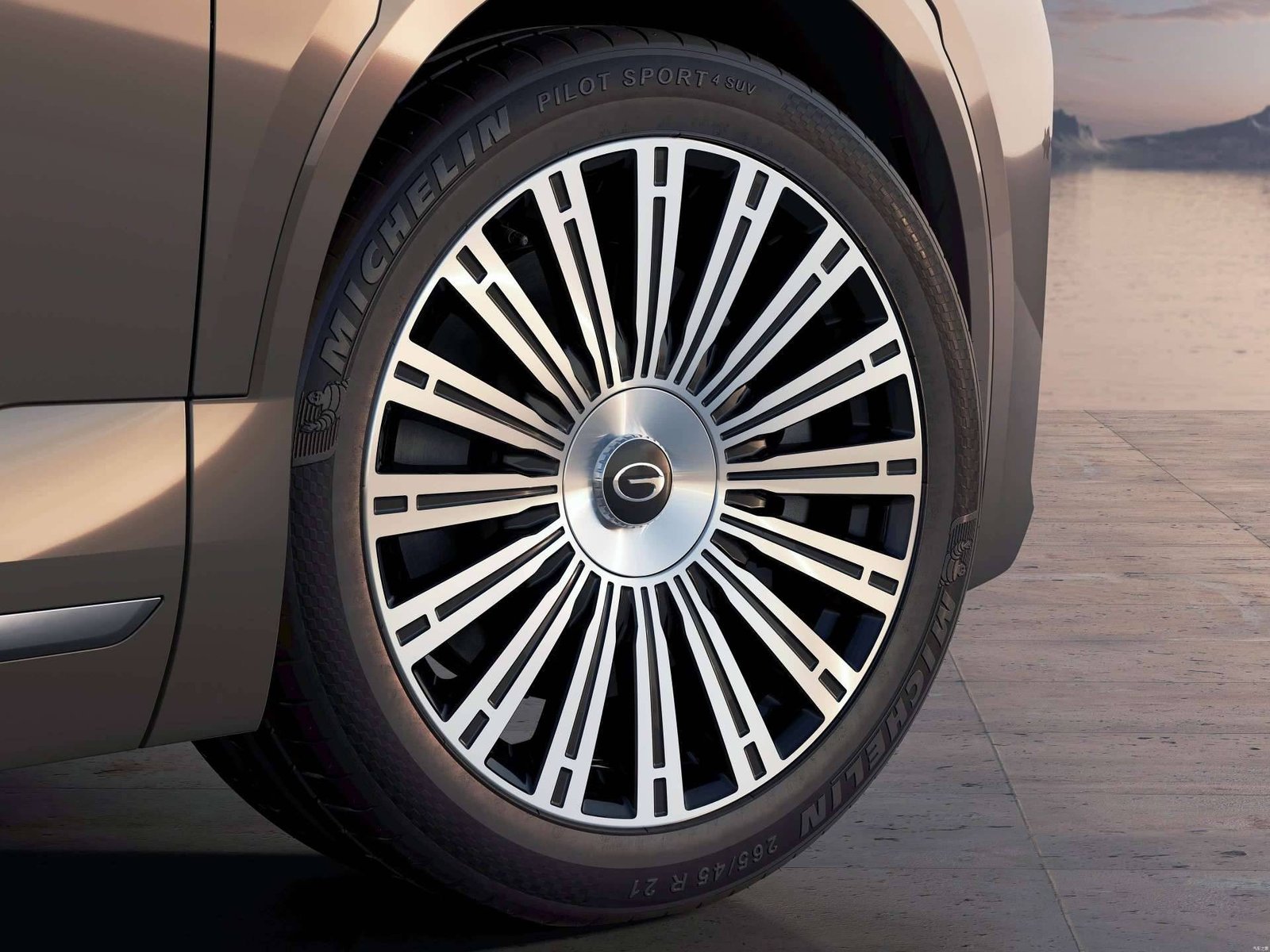

Wheels/Brakes
Front/rear brake typeVentilated disc/discVentilated disc/discVentilated disc/discVentilated disc/disc
Parking brake typeElectronic parking brakeElectronic parking brakeElectronic parking brakeElectronic parking brake
Front tire specifications255/50 R20255/50 R20255/50 R20255/50 R20
Rear tire specifications255/50 R20255/50 R20255/50 R20255/50 R20
Wheel materialaluminum alloyaluminum alloyaluminum alloyaluminum alloy
Spare tire specificationsTire repair toolsTire repair toolsTire repair toolsTire repair tools
Active/passive safety configuration
ABS anti-lock braking system
Braking force distribution (EBD/CBC, etc.)
Brake assist (BA/EBA/BAS, etc.)
Traction control (ASR/TCS/TRC, etc.)
Vehicle stability control (ESC/ESP/DSC, etc.)
Active braking/safety systems
Lane change assistance
Lane Keeping Assist System
Lane centering
Lane Departure Warning
Road traffic sign recognition
Low speed warning
Fatigue driving tips
DOW door opening warning
Front airbags●Driver's airbag●Driver's airbag●Driver's airbag●Driver's airbag
●Passenger's airbag●Passenger's airbag●Passenger's airbag●Passenger's airbag
●Center airbag●Center airbag●Center airbag●Center airbag
●Side airbag●Side airbag●Side airbag●Side airbag
●Head airbag (air curtain)●Head airbag (air curtain)●Head airbag (air curtain)●Head airbag (air curtain)
rear airbags●Side airbags●Side airbags●Side airbags●Side airbags
●Head airbags (curtain airbags)●Head airbags (curtain airbags)●Head airbags (curtain airbags)●Head airbags (curtain airbags)
Tire pressure detection deviceDisplayDisplayDisplayDisplay
Seat belt not fastened reminder●Front row●Front row●Front row●Front row
●Second row●Second row●Second row●Second row
ISOFIX child seat
Forward Collision Warning
Rear Collision Warning
Anti-rollover system
Sentry Mode/Clairvoyance
Auxiliary/control configuration
parking radar●Front●Front●Front●Front
●Back●Back●Back●Back
Maximum front detection distance250 meters250 meters250 meters250 meters
LiDAR brandHuaweiHuaweiHuaweiHuawei
LiDAR line count192 lines192 lines192 lines192 lines
Driving assistance images360-degree panoramic images360-degree panoramic images360-degree panoramic images360-degree panoramic images
Transparent chassis/540-degree imaging
Reversing side warning system
Cruise control system●Full-speed adaptive cruise control●Full-speed adaptive cruise control●Full-speed adaptive cruise control●Full-speed adaptive cruise control
Driving mode switch●Sports●Sports●Sports●Sports
●Economy●Economy●Economy●Economy
●Standard/Comfort●Standard/Comfort●Standard/Comfort●Standard/Comfort
●Snow●Snow●Snow●Snow
●Off-road●Off-road●Off-road●Off-road
●Custom/Personalized●Custom/Personalized●Custom/Personalized●Custom/Personalized
Steep slope descent
Hill-start assist
Automatic parking
Remote control parking
Memory Parking
Track reverse
variable steering ratio
Driving assistance levelL2L2L2L2
Assisted driving systemHuawei Qiankun Intelligent Driving ADSHuawei Qiankun Intelligent Driving ADSHuawei Qiankun Intelligent Driving ADSHuawei Qiankun Intelligent Driving ADS
Remote Summon
Traffic light recognition
External/anti-theft configuration
Skylight●Sectional non-openable skylight●Sectional non-openable skylight●Sectional non-openable skylight●Sectional non-openable skylight
Active closed grille
Hidden electric door handles
Side pedals○Electric○Electric○Electric○Electric
Trunk opening method●Electric●Electric●Electric●Electric
Electric trunk position memory
Key type●Remote control key●Remote control key●Remote control key●Remote control key
●Bluetooth key●Bluetooth key●Bluetooth key●Bluetooth key
Keyless entry
Keyless start system
Remote start function
Central locking system in the car
Engine electronic immobilizer
Internal Configuration
Steering wheel materialGenuine leatherGenuine leatherGenuine leatherGenuine leather
Steering wheel adjustment●Manually●Manually●Manually●Manually
adjustable up and down,adjustable up and down,adjustable up and down,adjustable up and down,
front and backfront and backfront and backfront and back
Steering wheel functions●Heating●Heating●Heating●Heating
●Multi-function●Multi-function●Multi-function●Multi-function
Hands-off steering wheel detection
Central armrest●Front●Front●Front●Front
●Back●Back●Back●Back
Gear shifting●Electronic hand-shift●Electronic hand-shift●Electronic hand-shift●Electronic hand-shift
Sun visor makeup mirror
Full LCD instrument panel
LCD instrument size12.3 inches12.3 inches12.3 inches12.3 inches
HUD Head-up Display
HUD head-up size27 inches27 inches27 inches27 inches
Built-in driving recorder
Active Noise Cancellation
Mobile phone wireless charging functionFront rowFront rowFront rowFront row
Smart Hardware
Forward perception cameraBinocularBinocularBinocularBinocular
Number of cameras11111111
Number of cameras in the car2222
Front perception camera pixels8 million8 million8 million8 million
Number of ultrasonic radars12121212
Number of millimeter-wave radars3333
Number of lidars1111
LiDAR 10% reflectivity detection distance250 meters250 meters250 meters250 meters
Number of lidar point clouds1.84 million/second1.84 million/second1.84 million/second1.84 million/second
Voice wake-up recognition by regionFour regionsFour regionsFour regionsFour regions
Surround view camera pixels2.5 million2.5 million2.5 million2.5 million

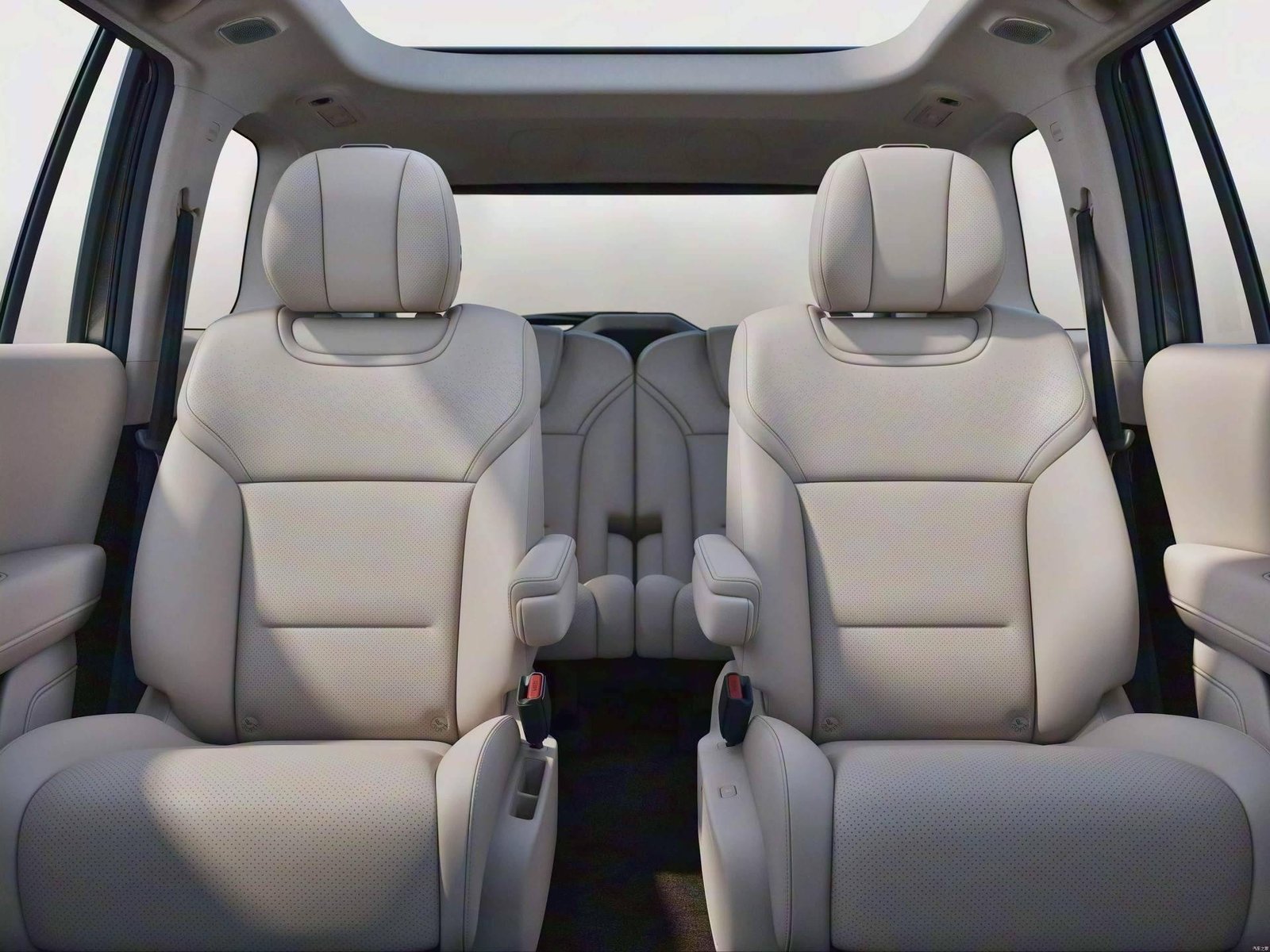

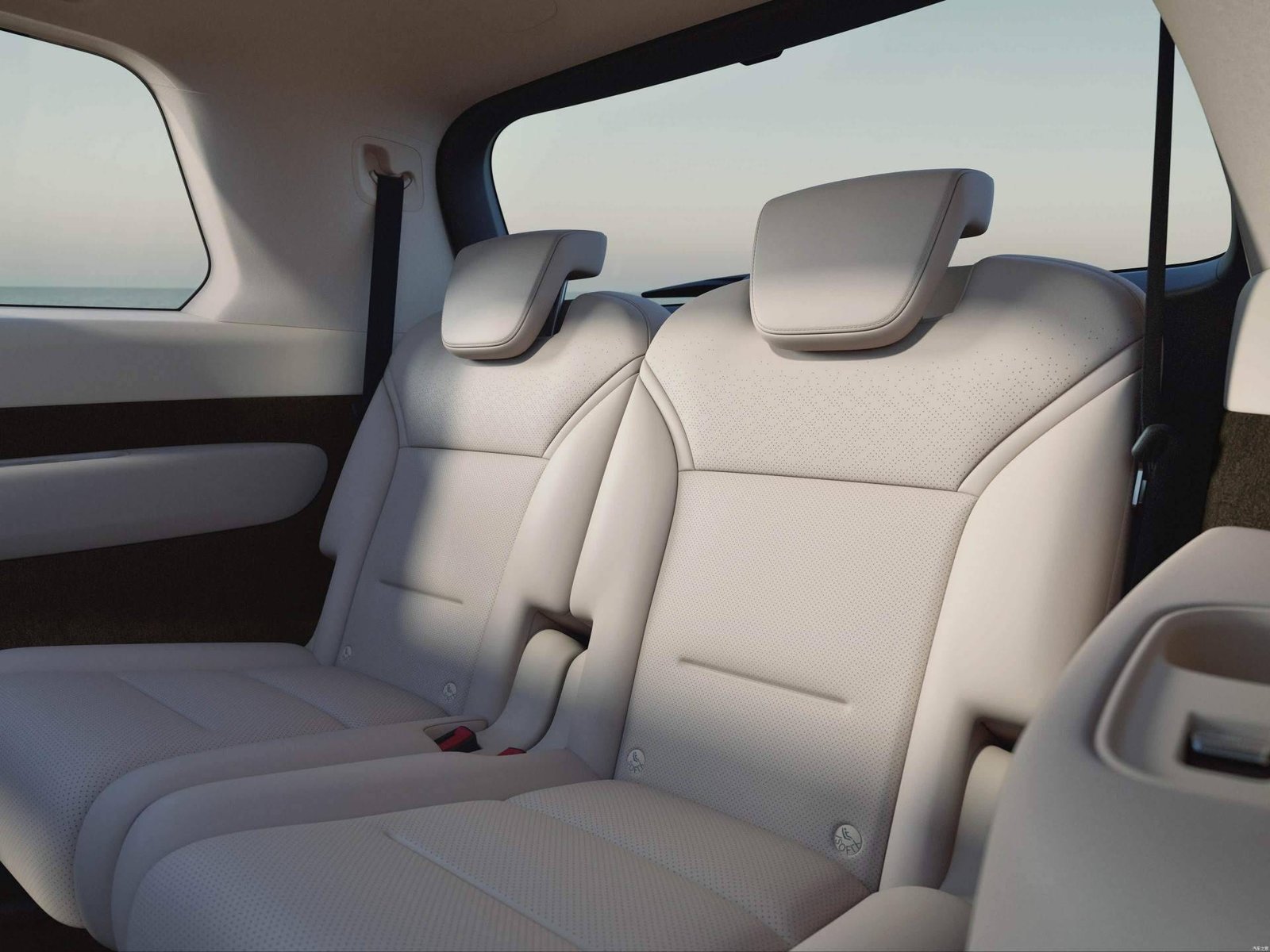

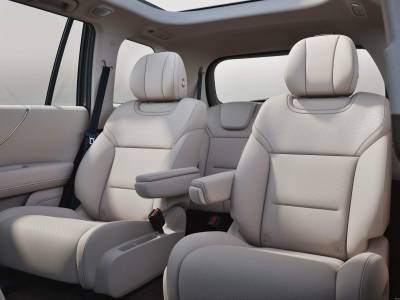

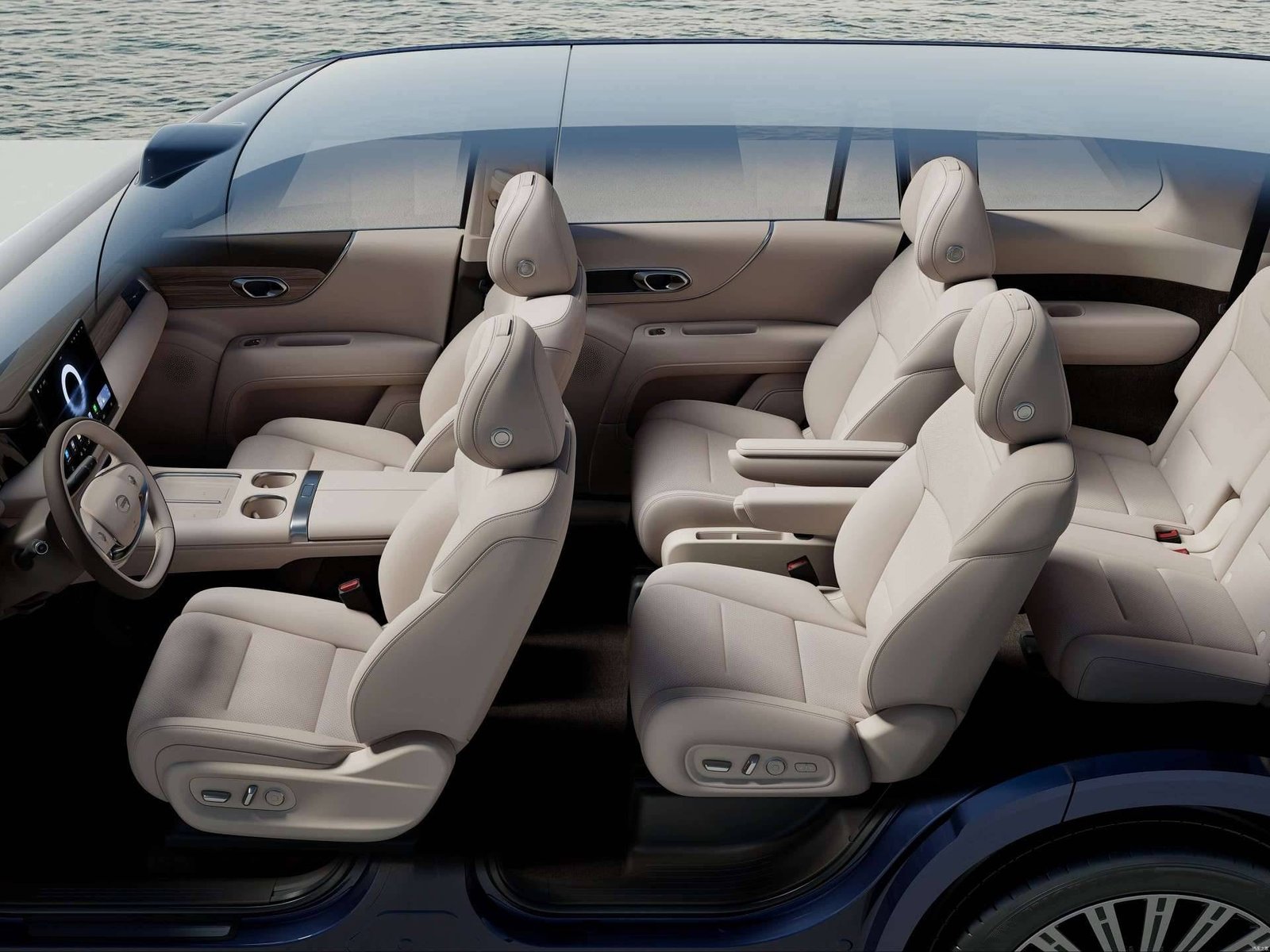

Seat
Seat materialImitation leatherImitation leather●Genuine leather●Genuine leather
●Imitation leather●Imitation leather
Zero Gravity Chair--Co-pilotCo-pilot
Front seat functions●Heating●Heating●Heating●Heating
●Ventilation●Ventilation●Ventilation●Ventilation
●Massage●Massage●Massage●Massage
●Headrest speakers (driver's seat only)●Headrest speakers (driver's seat only)●Headrest speakers (driver's seat only)●Headrest speakers (driver's seat only)
Second row seat functions●Heating●Heating●Heating●Heating
●Ventilation●Ventilation●Ventilation●Ventilation
●Massage●Massage
Electric seat adjustment●Driver●Driver●Driver●Driver
●Passenger●Passenger●Passenger●Passenger
Main seat adjustment method●Fore and aft adjustment●Fore and aft adjustment●Fore and aft adjustment●Fore and aft adjustment
●Backrest adjustment●Backrest adjustment●Backrest adjustment●Backrest adjustment
●Height adjustment (4 directions)●Height adjustment (4 directions)●Height adjustment (4 directions)●Height adjustment (4 directions)
●Lumbar support (2 directions)●Lumbar support (2 directions)●Lumbar support (2 directions)●Lumbar support (2 directions)
Passenger seat adjustment method●Fore and aft adjustment●Fore and aft adjustment●Front and rear adjustment●Front and rear adjustment
●Backrest adjustment●Backrest adjustment●Backrest adjustment●Backrest adjustment
●Lumbar support (2-way)●Lumbar support (2-way)●Height adjustment (2-way)●Height adjustment (2-way)
●Leg support adjustment●Leg support adjustment
●Lumbar support (2-way)●Lumbar support (2-way)
Second row seat adjustment●Adjustable angle●Angle adjustable●Adjustable angle●Angle adjustable
●Proportional tilt●Seat movable●Proportional tilt●Seat movable
●Proportional reclining●Proportional reclining
Second row seats electrically adjustable
Electric folding rear seats
Second row independent seats--
Co-pilot rear seat adjustable buttons
Rear small table--

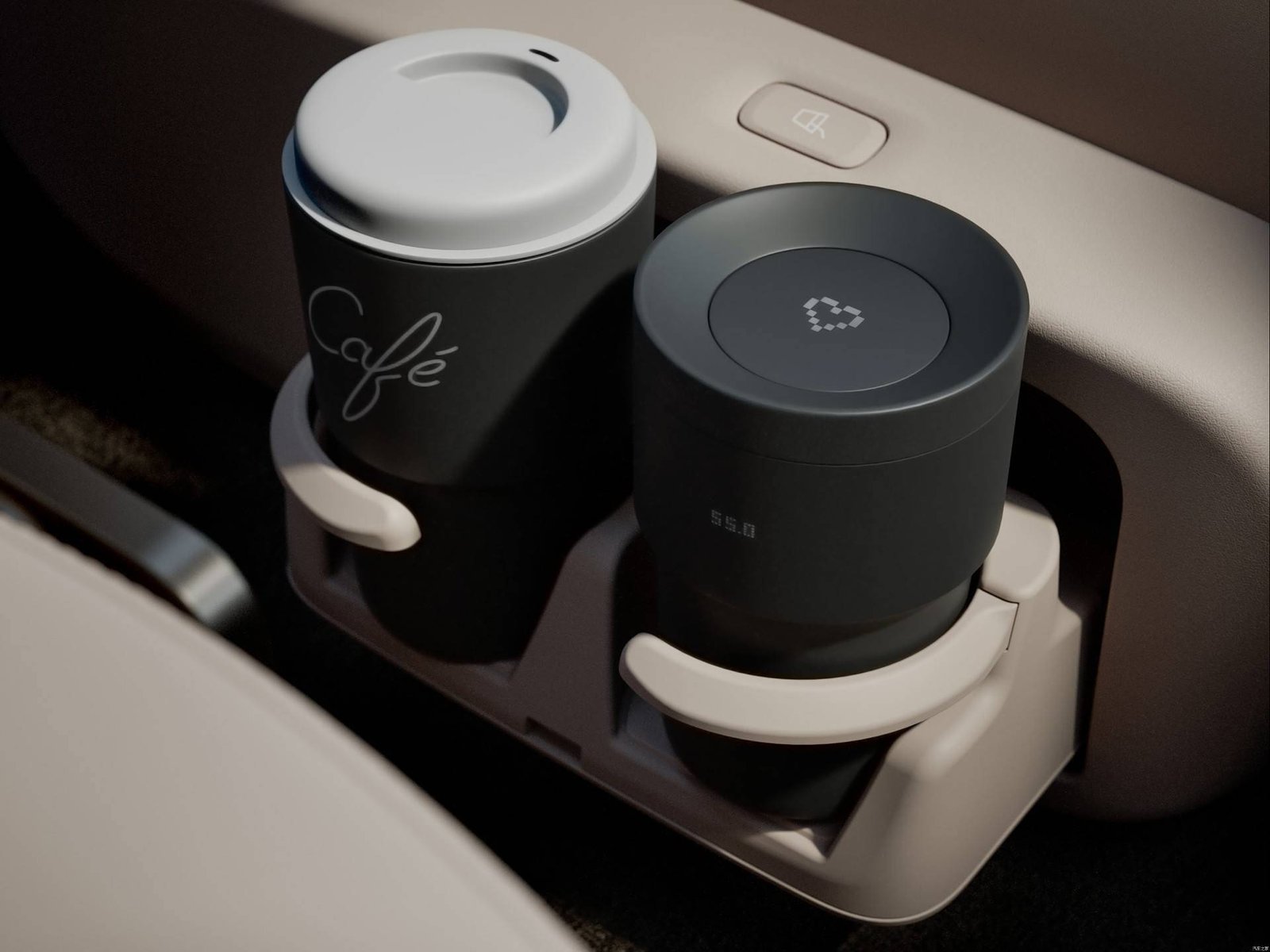

Rear cup holder
Third row seats--
Third row seat adjustment-Backrest adjustment-Backrest adjustment
Seat layout-2002-2-2-2002-2-2
multimedia
Large color screen on the center consoleTouch LCD screenTouch LCD screenTouch LCD screenTouch LCD screen
Satellite navigation system
Navigation traffic information display
Map BrandAutoNaviAutoNaviAutoNaviAutoNavi
Roadside assistance call
In-vehicle intelligent systemHarmonySpaceHarmonySpaceHarmonySpaceHarmonySpace
Mobile APP remote function● Door control● Door control● Door control● Door control
● Vehicle start● Vehicle start● Vehicle start● Vehicle start
● Charging management● Charging management● Charging management● Charging management
● Air conditioning control● Air conditioning control● Air conditioning control● Air conditioning control
● Seat heating● Seat heating● Seat heating● Seat heating
● Seat ventilation● Seat ventilation● Seat ventilation● Seat ventilation
● Vehicle condition inquiry/diagnosis● Vehicle condition inquiry/diagnosis● Vehicle condition inquiry/diagnosis● Vehicle condition inquiry/diagnosis
● Vehicle location/search● Vehicle location/search● Vehicle location/search● Vehicle location/search
● Owner services (find charging stations, gas stations, parking lots, etc.)● Owner services (find charging stations, gas stations, parking lots, etc.)● Owner services (find charging stations, gas stations, parking lots, etc.)● Owner services (find charging stations, gas stations, parking lots, etc.)
● Maintenance/repair reservations● Maintenance/repair reservations● Maintenance/repair reservations● Maintenance/repair reservations
Bluetooth/car phone
Mobile phone interconnection/mapping●Support HUAWEI HiCar●Support HUAWEI HiCar●Support HUAWEI HiCar●Support HUAWEI HiCar
Number of audio speakerstwenty onetwenty onetwenty onetwenty one
High-precision positioning
Voice recognition control system●Multimedia system●Multimedia system●Multimedia system●Multimedia system
●Navigation●Navigation●Navigation●Navigation
●Phone●Phone●Phone●Phone
●Air conditioning●Air conditioning●Air conditioning●Air conditioning
●Windows●Windows●Windows●Windows
●Heated seats●Heated seats●Heated seats●Heated seats
●Ventilated seats●Ventilated seats●Ventilated seats●Ventilated seats
●Massage seats●Massage seats●Massage seats●Massage seats
Central control screen typeLCDLCDLCDLCD
Central control screen size15.6 inches15.6 inches15.6 inches15.6 inches
Central control screen resolution2K2K2K2K
Voice wake-up word-free
Voice assistant wake-up wordHello, XiaoqiHello, XiaoqiHello, XiaoqiHello, Xiaoqi
Continuous Speech Recognition
Seeing is telling
Facial Recognition
In-vehicle biological monitoring system
4G/5G network5G5G5G5G
Internet of Vehicles
OTA upgrade
Multi-finger flying screen control
Rear LCD screen
Number of rear multimedia screens○1○111
Rear LCD screen size17.3 inches17.3 inches17.3 inches17.3 inches
Rear multimedia control
Interface support●Type-C interface●Type-C interface●Type-C interface●Type-C interface
●SD interface●SD interface●SD interface●SD interface
Number of USB/Type-C ports1 in the front row / 2 in the back row1 in the front row / 4 in the back row1 in the front row / 2 in the back row1 in the front row / 4 in the back row
USB/Type-C maximum charging power60W60W60W60W
Mobile phone wireless charging power50W50W50W50W
Power support12V power supply in luggage compartment12V power supply in luggage compartment12V power supply in luggage compartment12V power supply in luggage compartment
Vehicle system memory (GB)24242424
Vehicle system storage (GB)128128128128
App Store
light
low beamLEDLEDLEDLED
High beamLEDLEDLEDLED
LED daytime running lights
Adaptive high and low beam
Adjustable headlights
Automatic headlights
Headlight delayed off
Interior ambient lighting
Active ambient lighting
Scene Lighting--
Touch-sensitive reading light
Glass/rearview mirror
Power windows●Front●Front●Front●Front
●Back●Back●Back●Back
One-touch window lift●Full vehicle●Full vehicle●Full vehicle●Full vehicle
Car window anti-pinch finger
exterior rearview mirror●Electric adjustment●Electric adjustment●Electric adjustment●Electric adjustment
●Electric folding●Electric folding●Electric folding●Electric folding
●Memory●Memory●Memory●Memory
●Heating●Heating●Heating●Heating
●Automatic folding when locking the car●Automatic folding when locking the car●Automatic folding when locking the car●Automatic folding when locking the car
●Automatic downward folding when reversing●Automatic downward folding when reversing●Automatic downward folding when reversing●Automatic downward folding when reversing
Interior rearview mirrorAutomatic anti-glareAutomatic anti-glareAutomatic anti-glareAutomatic anti-glare
Glass function●Multi-layer sound insulation●Multi-layer sound insulation●Multi-layer sound insulation●Multi-layer sound insulation
●Rear side privacy●Rear side privacy●Rear side privacy●Rear side privacy
Side window multi-layer soundproof glass●Front row●Front row●Front row●Front row
●Back row●Back row●Back row●Back row
rain-sensing wipers
rear wiper
Air conditioning/refrigerator
Air conditioning control methodAutomatic controlAutomatic controlAutomatic controlAutomatic control
Independent air conditioning in the rear
rear air outlet
Temperature zone control
Air quality monitoring
Air purification
PM2.5 filtration
Negative ion generator







Fill out the form to receive a business quote

Ask your question now and receive an answer within one business day.



GAC Trumpchi S9 Details (2)
previous arrow
next arrow
GAC Trumpchi S9 Details (2)
GAC Trumpchi S9 Details (1)(1)
GAC Trumpchi S9 Details (2)(1)
GAC Trumpchi S9 Details (10)
GAC Trumpchi S9 Details (12)
GAC Trumpchi S9 Details (1)
GAC Trumpchi S9 Details (3)(1)
GAC Trumpchi S9 Details (3)
GAC Trumpchi S9 Details (4)
GAC Trumpchi S9 Details (5)
GAC Trumpchi S9 Details (6)
GAC Trumpchi S9 Details (7)
GAC Trumpchi S9 Details (8)
GAC Trumpchi S9 Details (9)
GAC Trumpchi S9 Details (11)
GAC Trumpchi S9 Details (13)
GAC Trumpchi S9 Details (14)
previous arrow
next arrow









Reviews

There are no reviews yet.

Be the first to review “GAC Trumpchi S9”

Your email address will not be published. Required fields are marked *

GAC Trumpchi S9GAC Trumpchi S9
$33,900
