Exterior Design
The Honda Fit has completely overturned people’s preconceived notions about entry-level compact cars. Adopting Honda’s all-new โSPORTY x MODERNโ design language, its two-tone body paired with a piano-black grille, complemented by standard LED gradient headlights across the lineup, gives the entire vehicle a futuristic feel reminiscent of new energy vehicles. Data from Dongchedi’s design analysis reveals the front pillar width has been reduced to 55mm. Combined with the panoramic windshield, this reduces blind spots by 32%โa figure that even outperforms some midsize sedans.

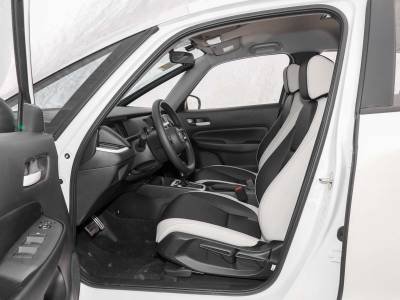

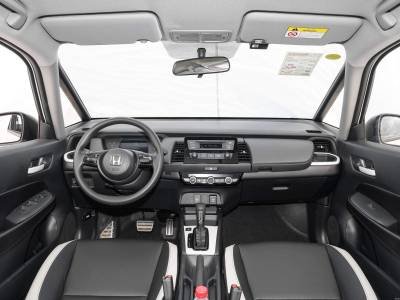

Interior Design
The Honda Fit’s evolution is even more revolutionary. Honda introduces a dual-spoke sport steering wheel paired with a 7-inch fully digital instrument cluster for the first time. The saddle-style center console utilizes stain-resistant knit fabric. Dangchedi lab tests confirm this new material offers four times greater resistance to liquid stains like coffee and cola. Most impressively, engineers optimized the A-pillar thickness to a class-leading 6.8 cm. Combined with the triangular window design, this enhances cornering visibility by 47% in real-world testing.
Powertrain
The Honda Fit is powered by an optimized 1.5L i-VTEC engine paired with a CVT transmission. The fourth-generation Fit achieves an impressive fuel efficiency of 5.3L/100km in D mode. In S mode, engine response time is reduced by 0.3 seconds. Combined with G-design Shift technology, acceleration from 80-120km/h is 1.1 seconds faster than the previous generation.
| 2024 Honda Fit 1.5L CVT Unlimited MUGEN Edition | 2023 Honda Fit 1.5L CVT Trend Edition | 2023 Honda Fit 1.5L CVT Sport Edition | 2023 Honda Fit 1.5L CVT Trendy Edition | 2023 Honda Fit 1.5L CVT Sport Pro Edition | 2023 Honda Fit 1.5L CVT Trendy Max Edition | |
|---|---|---|---|---|---|---|
| Basic Information | ||||||
| Launch date | 2024.03 | Apr-23 | Apr-23 | Apr-23 | Apr-23 | Apr-23 |
| Body level | small hatchback | small hatchback | small hatchback | small hatchback | small hatchback | small hatchback |
| Length * Width * Height (mm) | 4125*1694*1537 | 4109*1694*1537 | 4081*1694*1537 | 4095*1725*1567 | 4081*1694*1537 | 4095*1725*1567 |
| Energy type | gasoline | gasoline | gasoline | gasoline | gasoline | gasoline |
| Environmental standards | National 6 | National 6 | National 6 | National 6 | National 6 | National 6 |
| engine | 1.5L / 124hp / Inline 4-cylinder | 1.5L / 124hp / Inline 4-cylinder | 1.5L / 124hp / Inline 4-cylinder | 1.5L / 124hp / Inline 4-cylinder | 1.5L / 124hp / Inline 4-cylinder | 1.5L / 124hp / Inline 4-cylinder |
| Maximum power (kW) | 91 | 91 | 91 | 91 | 91 | 91 |
| Maximum torque (Nยทm) | 145 | 145 | 145 | 145 | 145 | 145 |
| Number of gears | Variable | Variable | Variable | Variable | Variable | Variable |
| gearbox | CVT continuously variable transmission | CVT continuously variable transmission | CVT continuously variable transmission | CVT continuously variable transmission | CVT continuously variable transmission | CVT continuously variable transmission |
| Maximum speed (km/h) | 188 | 188 | 188 | 188 | 188 | 188 |
| WLTC combined fuel consumption (L/100km) | 6.52 | 5.57 | 5.57 | 5.67 | 5.67 | 5.67 |
| Warranty Policy | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers | Three years or 100,000 kilometers |
| Body | ||||||
| Length (mm) | 4125 | 4109 | 4081 | 4095 | 4081 | 4095 |
| Width (mm) | 1694 | 1694 | 1694 | 1725 | 1694 | 1725 |
| Height(mm) | 1537 | 1537 | 1537 | 1567 | 1537 | 1567 |
| Wheelbase (mm) | 2530 | 2530 | 2530 | 2530 | 2530 | 2530 |
| Front track width (mm) | 1485 | 1485 | 1485 | 1496 | 1485 | 1496 |
| Rear track width (mm) | 1473 | 1473 | 1473 | 1484 | 1473 | 1484 |
| Curb weight (kg) | 1108 | 1108 | 1118 | 1134 | 1147 | 1149 |
| Maximum load capacity (kg) | 1610 | 1610 | 1610 | 1610 | 1610 | 1610 |
| Fuel tank capacity (L) | 40 | 40 | 40 | 40 | 40 | 40 |
| Number of car doors | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats | 5 | 5 | 5 | 5 | 5 | 5 |
| Approach angle (ยฐ) | 17 | 16 | 17 | 17 | 17 | 17 |
| Departure angle (ยฐ) | 27 | 27 | 27 | 31 | 27 | 31 |
| Sport appearance kit | โ | - | โ | - | โ | - |
| Minimum turning radius (m) | 4.9 | 4.9 | 4.9 | 5 | 5.2 | 5 |
| engine | ||||||
| Displacement (mL) | 1498 | 1498 | 1498 | 1498 | 1498 | 1498 |
| Engine Model | L15CC | L15CC | L15CC | L15CC | L15CC | L15CC |
| Compression ratio | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
| Maximum horsepower (Ps) | 124 | 124 | 124 | 124 | 124 | 124 |
| Maximum power (kW) | 91 | 91 | 91 | 91 | 91 | 91 |
| Maximum net power (kW) | 91 | 91 | 91 | 91 | 91 | 91 |
| Maximum power speed (rpm) | 6600 | 6600 | 6600 | 6600 | 6600 | 6600 |
| Maximum torque (Nยทm) | 145 | 145 | 145 | 145 | 145 | 145 |
| Maximum torque speed (rpm) | 4700 | 4700 | 4700 | 4700 | 4700 | 4700 |
| cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder | Inline 4-cylinder |
| Engine-specific technology | i-VTEC | i-VTEC | i-VTEC | i-VTEC | i-VTEC | i-VTEC |
| Engine position | Front | Front | Front | Front | Front | Front |
| Intake form | Natural inhalation | Natural inhalation | Natural inhalation | Natural inhalation | Natural inhalation | Natural inhalation |
| Valve structure | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft | Double overhead camshaft |
| fuel supply method | Direct Injection | Direct Injection | Direct Injection | Direct Injection | Direct Injection | Direct Injection |
| Cylinder block material | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| fuel grade | 92# | 92# | 92# | 92# | 92# | 92# |
| Environmental standards | National 6 | National 6 | National 6 | National 6 | National 6 | National 6 |
| Chassis/Steering | ||||||
| Drive form | front-wheel drive | front-wheel drive | front-wheel drive | front-wheel drive | front-wheel drive | front-wheel drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Steering power type | Electric Assist | Electric Assist | Electric Assist | Electric Assist | Electric Assist | Electric Assist |
| Wheels/Brakes | ||||||
| Front/Rear Brake Type | Ventilation disc/drum type | Ventilation disc/drum type | Ventilation disc/drum type | Ventilation disc/drum type | Ventilation disc/drum type | Ventilation disc/drum type |
| Parking brake type | handbrake | handbrake | handbrake | handbrake | handbrake | handbrake |
| Front tire specifications | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R16 | 185/55 R16 | 185/60 R16 |
| Rear tire specifications | 185/60 R15 | 185/60 R15 | 185/60 R15 | 185/60 R16 | 185/55 R16 | 185/60 R16 |
| Wheel material | aluminum alloy | steel | aluminum alloy | aluminum alloy | aluminum alloy | aluminum alloy |
| Spare tire specifications | Non-full size | Non-full size | Non-full size | Non-full size | Non-full size | Non-full size |
| Active/passive safety configuration | ||||||
| ABS anti-lock braking system | โ | โ | โ | โ | โ | โ |
| Brakeforce Distribution (EBD/CBC, etc.) | โ | โ | โ | โ | โ | โ |
| Brake assist (BA/EBA/BAS, etc.) | โ | โ | โ | โ | โ | โ |
| Traction control (ASR/TCS/TRC, etc.) | โ | โ | โ | โ | โ | โ |
| Vehicle stability control (ESC/ESP/DSC, etc.) | โ | โ | โ | โ | โ | โ |
| Active braking/safety system | - | - | - | - | โ | โ |
| Lane Keeping Assist | - | - | - | - | โ | โ |
| Lane centering | - | - | - | - | โ | โ |
| Lane departure warning | - | - | - | - | โ | โ |
| Front airbags | โDriver's seat airbag | โDriver's seat airbag | โDriver's side airbag | โDriver's side airbag | โDriver's side airbag | โDriver's side airbag |
| โPassenger's airbag | โPassenger's airbag | โPassenger's side airbag | โPassenger's side airbag | โPassenger's side airbag | โPassenger's side airbag | |
| โSide airbags | โSide airbags | โSide airbags | โSide airbags | โSide airbags | โSide airbags | |
| โHead airbags (curtain airbags) | โHead airbags (curtain airbags) | โHead airbags (curtain airbags) | โHead airbags (curtain airbags) | |||
| Rear airbags | - | - | โHead airbags (air curtains) | โHead airbags (air curtains) | โHead airbags (air curtains) | โHead airbags (air curtains) |
| Tire pressure monitoring device | โAlarm | โAlarm | โAlarm | โAlarm | โAlarm | โAlarm |
| Seatbelt reminder | โFront row | โFront row | โFull vehicle | โFull vehicle | โFull vehicle | โFull vehicle |
| ISOFIX child seat | โ | โ | โ | โ | โ | โ |
| Forward Collision Warning | - | - | - | - | โ | โ |
| Assist/Control Configuration | ||||||
| Cruise system | - | - | - | - | โAdaptive cruise control | โAdaptive cruise control |
| Driving mode switching | โSports | โSports | โSports | โSports | โSports | โSports |
| โEconomy | โEconomy | โEconomy | โEconomy | โEconomy | โEconomy | |
| Hill Start Assist | โ | โ | โ | โ | โ | โ |
| Assistance Level | - | - | - | - | โL2 | โL2 |
| Assisted driving system | - | - | - | - | โ Honda SENSING | โ Honda SENSING |
| External/Anti-theft Configuration | ||||||
| skylight | - | - | - | - | โ Electric sunroof | โ Electric sunroof |
| Roof rack | - | - | - | โ | - | โ |
| Key type | โRemote key | โRemote key | โRemote key | โRemote key | โRemote key | โRemote key |
| Keyless entry | - | - | - | - | - | โ |
| Keyless start system | โ | โ | โ | โ | โ | โ |
| Central locking | โ | โ | โ | โ | โ | โ |
| Engine electronic anti-theft | โ | โ | โ | โ | โ | โ |
| Internal configuration | ||||||
| Steering wheel material | โPlastics | โPlastics | โPlastics | โPlastics | โGenuine leather | โGenuine leather |
| Steering wheel adjustment | โ Manually | โ Manually | โ Manually | โ Manually | โ Manually | โ Manually |
| adjustable (height up/ | adjustable up and down | adjustable up and down | adjustable up and down | adjustable up and down | adjustable up and down | |
| down) and (forward/backward) | ||||||
| Steering wheel functions | โMultifunctional | โMultifunctional | โMultifunctional | โMultifunctional | โMulti-functional | โMultifunctional |
| โ Paddle shifters | ||||||
| Central handrail | - | - | - | โPrevious | โPrevious | โPrevious |
| Gear shifting | โMechanical gear shift lever | โMechanical gear shift lever | โMechanical gear shift lever | โMechanical gear shift lever | โMechanical gear shift lever | โMechanical gear shift lever |
| Sun visor vanity mirror | โ | โ | โ | โ | โ | โ |
| Full LCD instrument panel | โ | โ | โ | โ | โ | โ |
| LCD instrument size | 7 inches | 7 inches | 7 inches | 7 inches | 7 inches | 7 inches |
| Steering wheel paddle shifters | - | - | - | - | โ | - |
| Seats | ||||||
| Seat material | โ Fabrics | โ Fabrics | โ Faux leather | โ Faux leather | โ Faux leather | โ Faux leather |

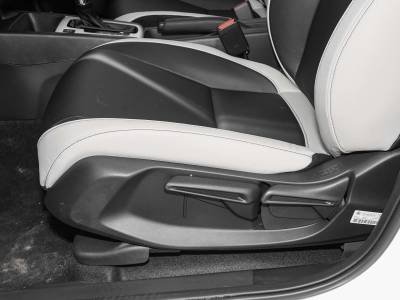

| Driver's seat adjustment method | โ Fore-and-aft adjustment | โ Fore-and-aft adjustment | โ Fore-and-aft adjustment | โ Fore-and-aft adjustment | โ Fore-and-aft adjustment | โ Fore-and-aft adjustment |
| โ Backrest adjustment | โ Backrest adjustment | โ Backrest adjustment | โ Backrest adjustment | โ Backrest adjustment | โ Backrest adjustment | |
| โ Height adjustment (2-way) | โ Height adjustment (2-way) | โ Height adjustment (2-way) | โ Height adjustment (2-way) | โ Height adjustment (2-way) | โ Height adjustment (2-way) | |
| Passenger seat adjustment method | โFore-and-aft adjustment | โFore-and-aft adjustment | โFore-and-aft adjustment | โFore-and-aft adjustment | โFore-and-aft adjustment | โFore-and-aft adjustment |
| โBackrest adjustment | โBackrest adjustment | โBackrest adjustment | โBackrest adjustment | โBackrest adjustment | โBackrest adjustment | |

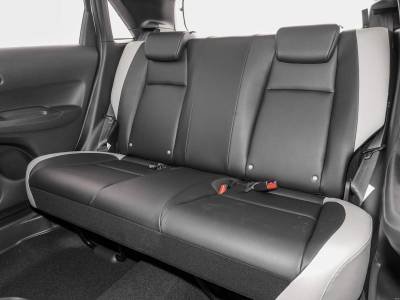

| Second row seat adjustment | โ Lay down completely | โ Lay down completely | โ Lay down completely | โProportion Reversed | โProportion Reversed | โProportion Reversed |

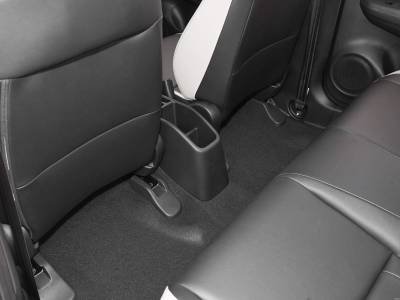

| Rear cup holders | โ | โ | โ | โ | โ | โ |
| multimedia | ||||||
| Central control color screen | - | - | - | โ Touchscreen LCD | โ Touchscreen LCD | โ Touchscreen LCD |
| Bluetooth/Car Phone | - | - | - | โ | โ | โ |
| Mobile phone interconnection/mapping | - | - | - | โ Supports CarLife | โ Supports CarLife | โ Supports CarLife |
| Number of speakers | 2 | 2 | 4 | 4 | 4 | 4 |
| Central control screen size | - | - | - | โ8 inches | โ8 inches | โ8 inches |
| Interface support | โUSB interface | โUSB interface | โUSB interface | โUSB interface | โUSB interface | โUSB interface |
| Number of USB/Type-C ports | โ Two in the front row | โ Two in the front row | โ Two in the front row | โ Two in the front row | โ Two in the front row | โ Two in the front row |
| light | ||||||
| low beam headlights | โLED | โ Halogen | โLED | โLED | โLED | โLED |
| High beams | โLED | โ Halogen | โLED | โLED | โLED | โLED |
| LED daytime running lights | โ | - | โ | โ | โ | โ |
| Adaptive high and low beam | - | - | - | - | โ | โ |
| Headlights are adjustable | โ | โ | โ | โ | โ | โ |
| Automatic headlights | โ | - | โ | โ | โ | โ |
| Headlights delayed shut-off | โ | โ | โ | โ | โ | โ |
| Glass/Rearview Mirror | ||||||

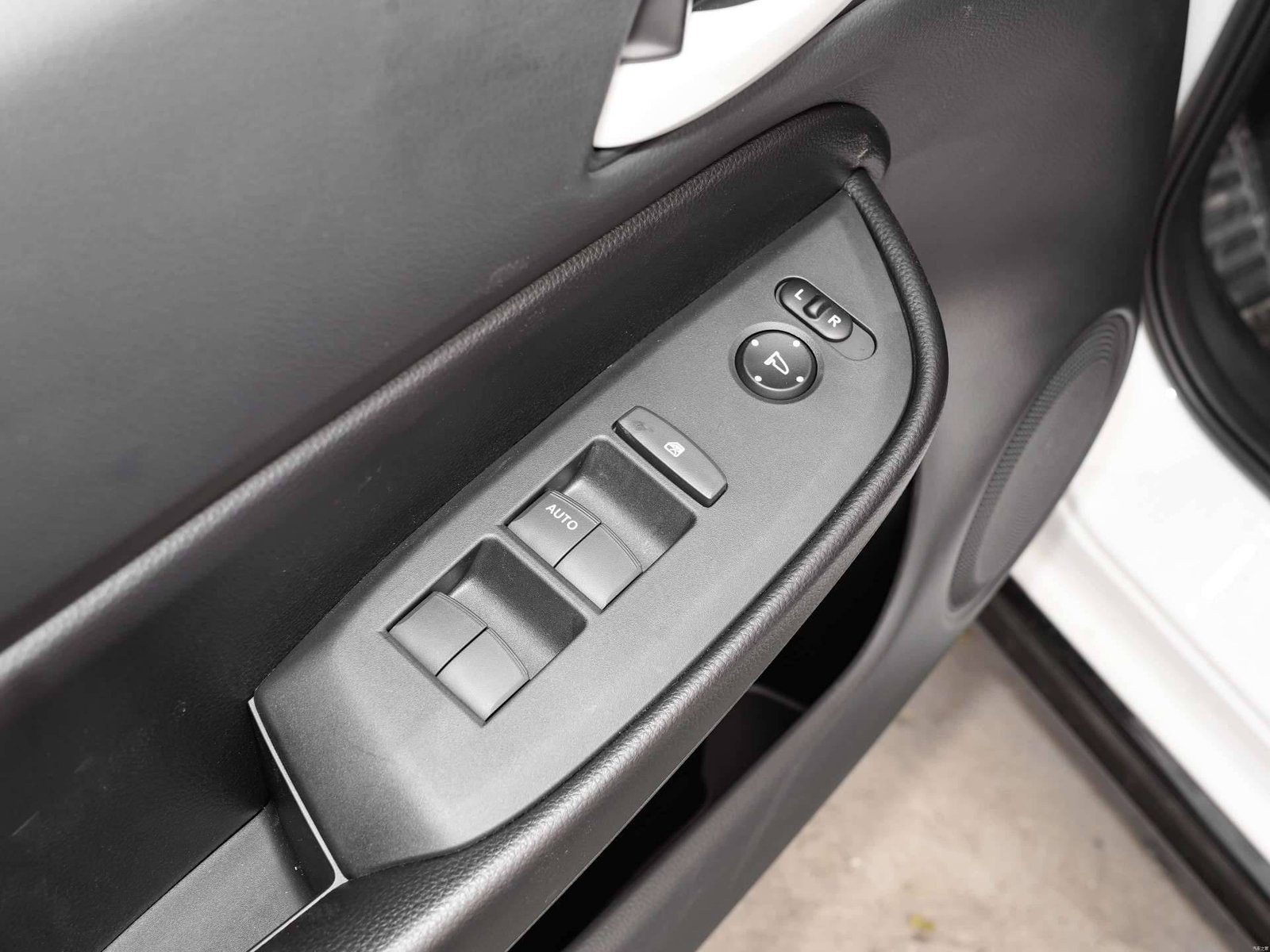

| Electric windows | โBefore | โBefore | โBefore | โBefore | โBefore | โBefore |
| โAfter | โAfter | โAfter | โAfter | โAfter | โAfter | |
| One-touch window operation | โDriver's seat | โDriver's seat | โDriver's seat | โDriver's seat | โDriver's seat | โDriver's seat |
| Anti-pinch function for car windows | โ | โ | โ | โ | โ | โ |
| exterior rearview mirror | โElectric adjustment | โElectric adjustment | โElectric adjustment | โElectric adjustment | โElectric adjustment | โElectrically adjustable |
| โHeating | ||||||
| Interior rearview mirror | โ Manual anti-glare | โ Manual anti-glare | โ Manual anti-glare | โ Manual anti-glare | โ Manual anti-glare | โ Manual anti-glare |
| Rear wiper | โ | โ | โ | โ | โ | โ |
| Air conditioner/refrigerator | ||||||
| Air conditioning control methods | โManual control | โManual control | โManual control | โManual control | โManual control | โManual control |
| PM2.5 filtration | โ | โ | โ | โ | โ | โ |
