Lingbox Box, the first new energy vehicle under Jiangsu Jimax New Energy Vehicle Industry Co., Ltd, has attracted the attention of many consumers since its official mass production rolled off the production line on April 20, 2020, with its positioning as an A00-class new energy passenger car. With a length, width and height of 3460/1475/1615 millimeters and a wheelbase of 2455 millimeters, the vehicle displays small and exquisite body dimensions, while providing an unimaginable amount of space, combining the dual qualities of convenience and comfort.

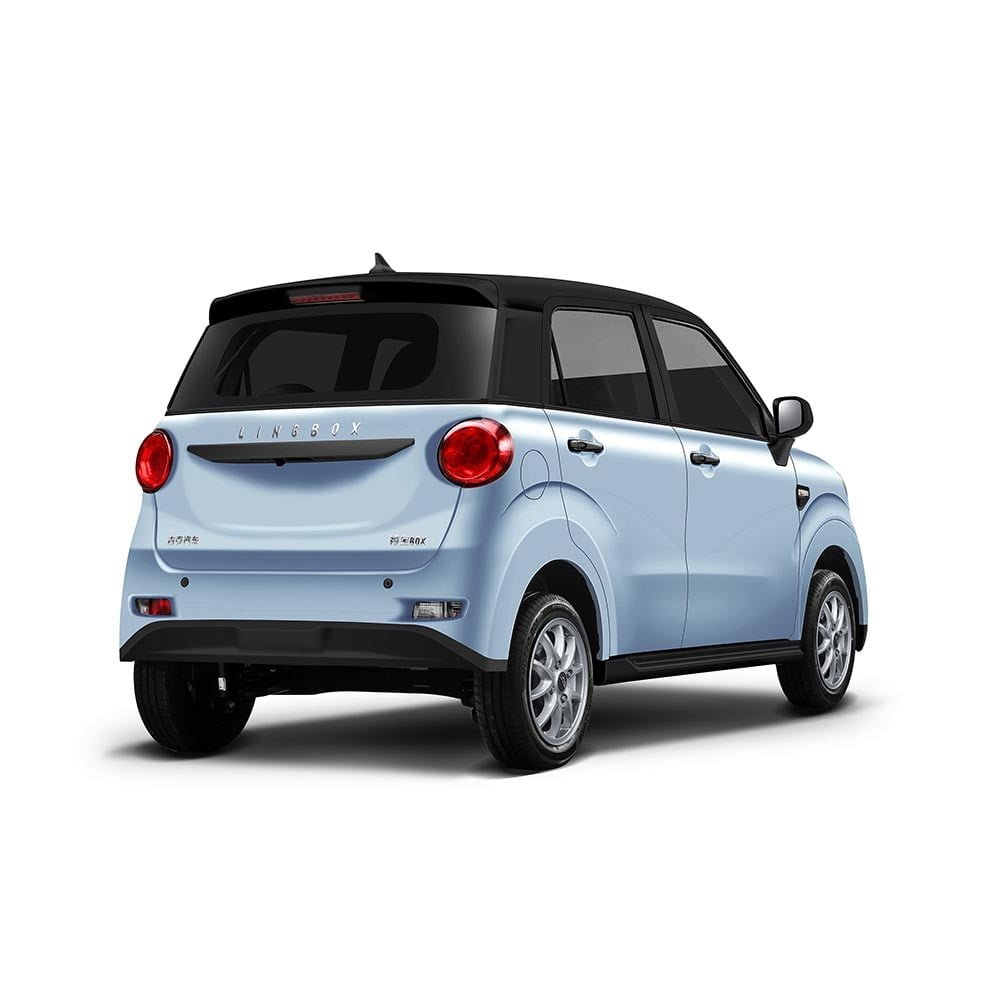

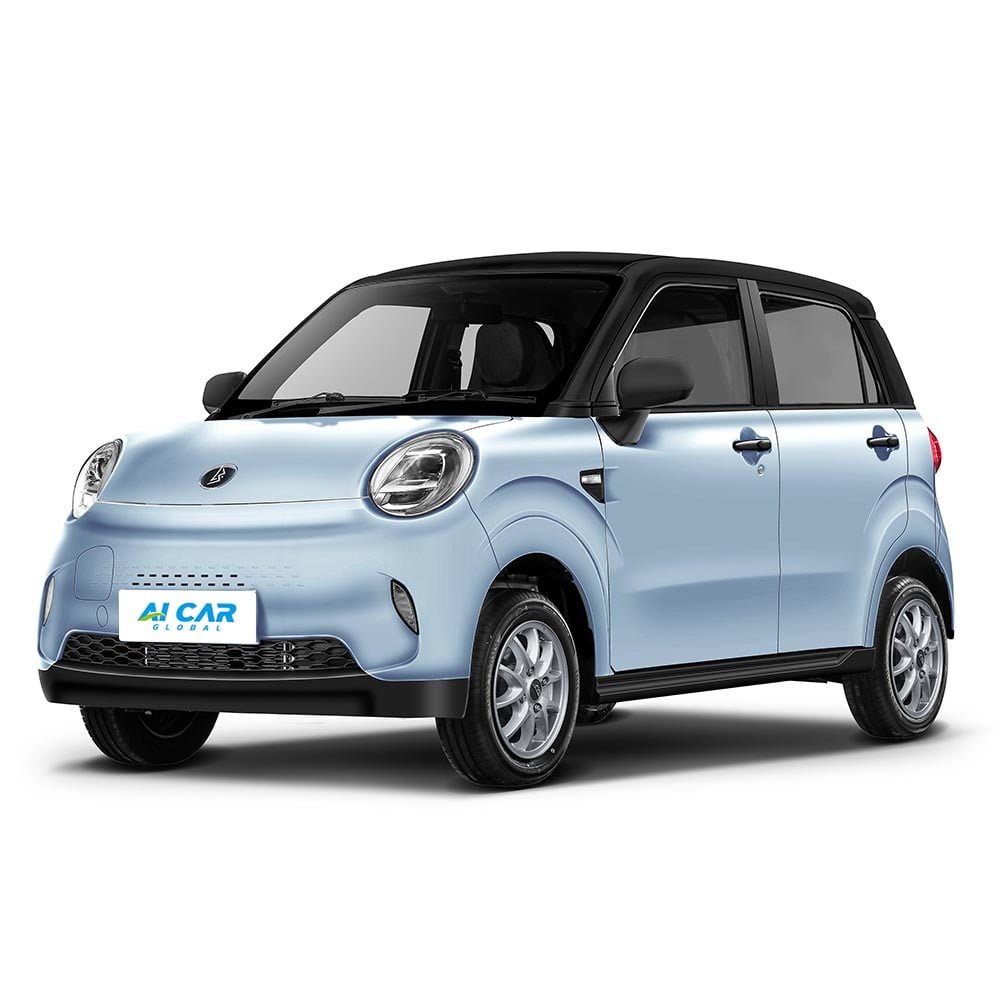

Exterior

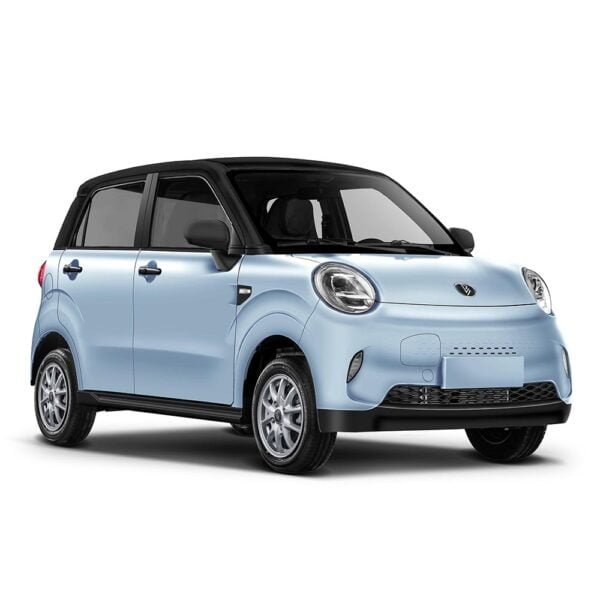

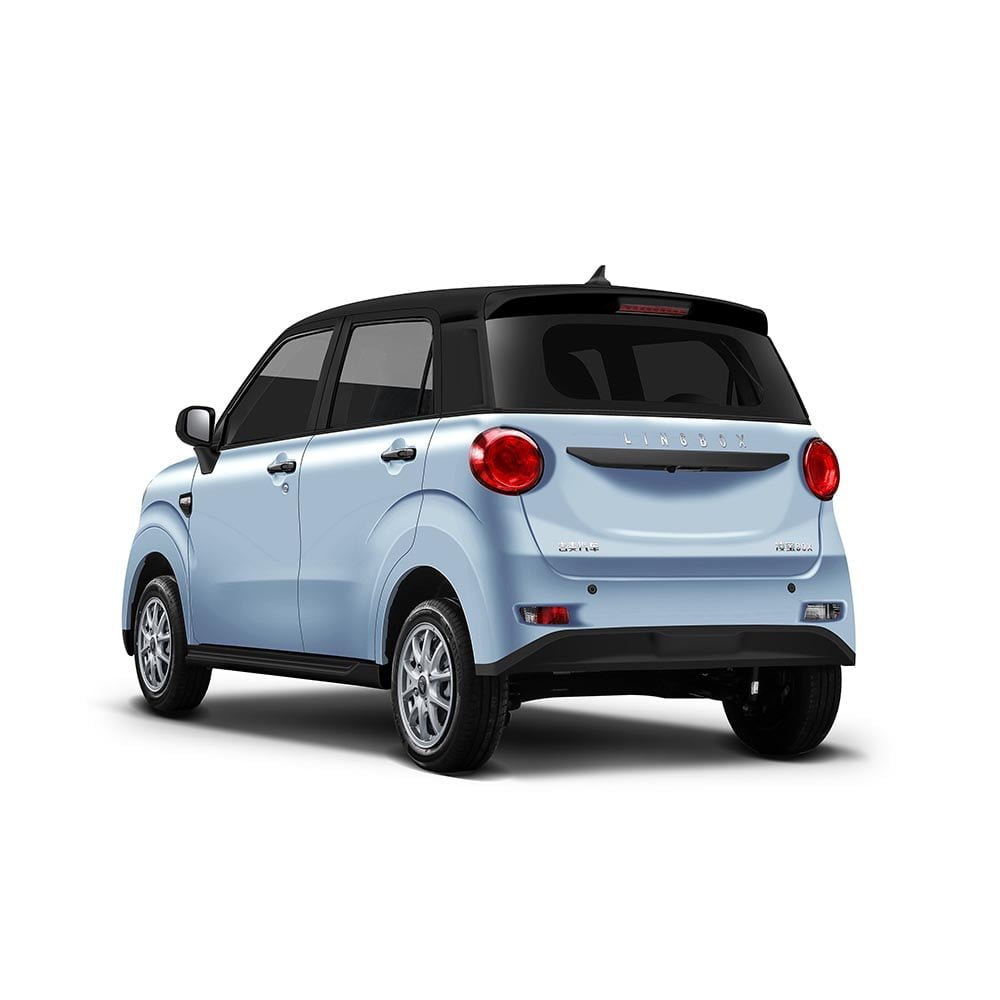

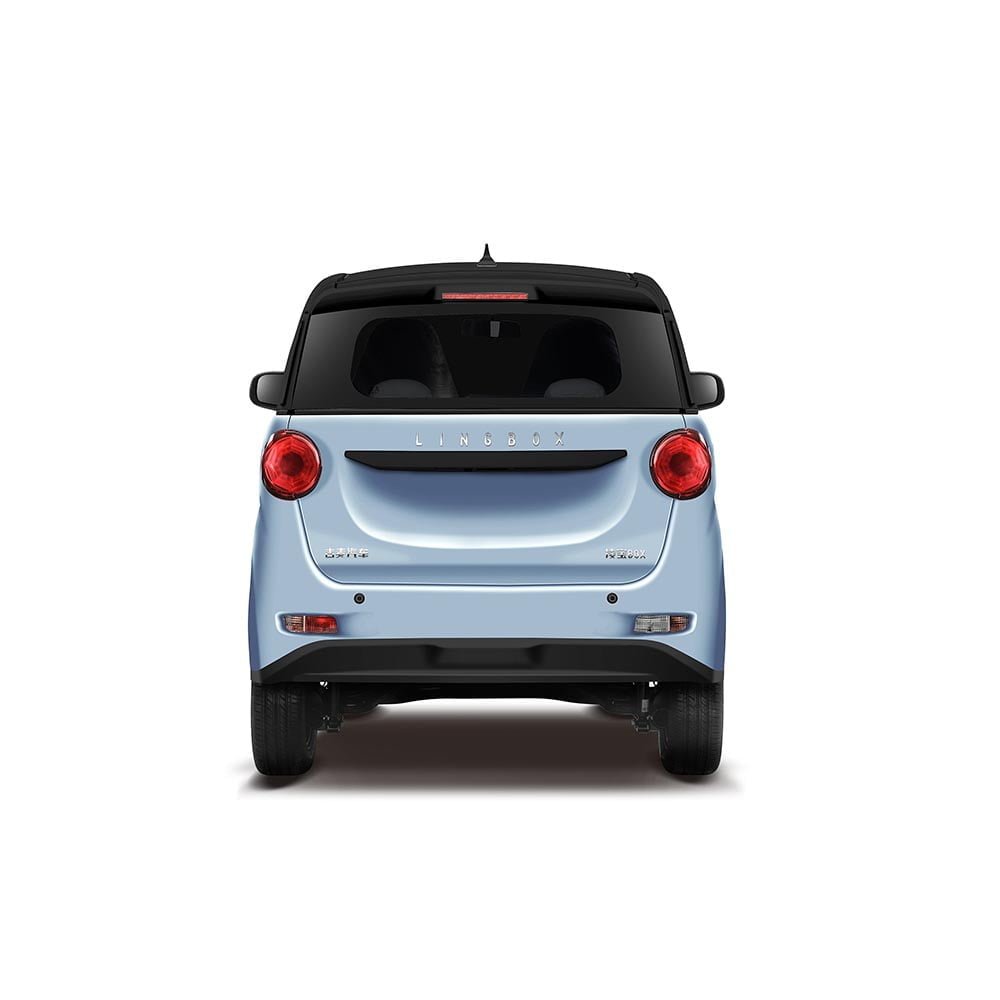

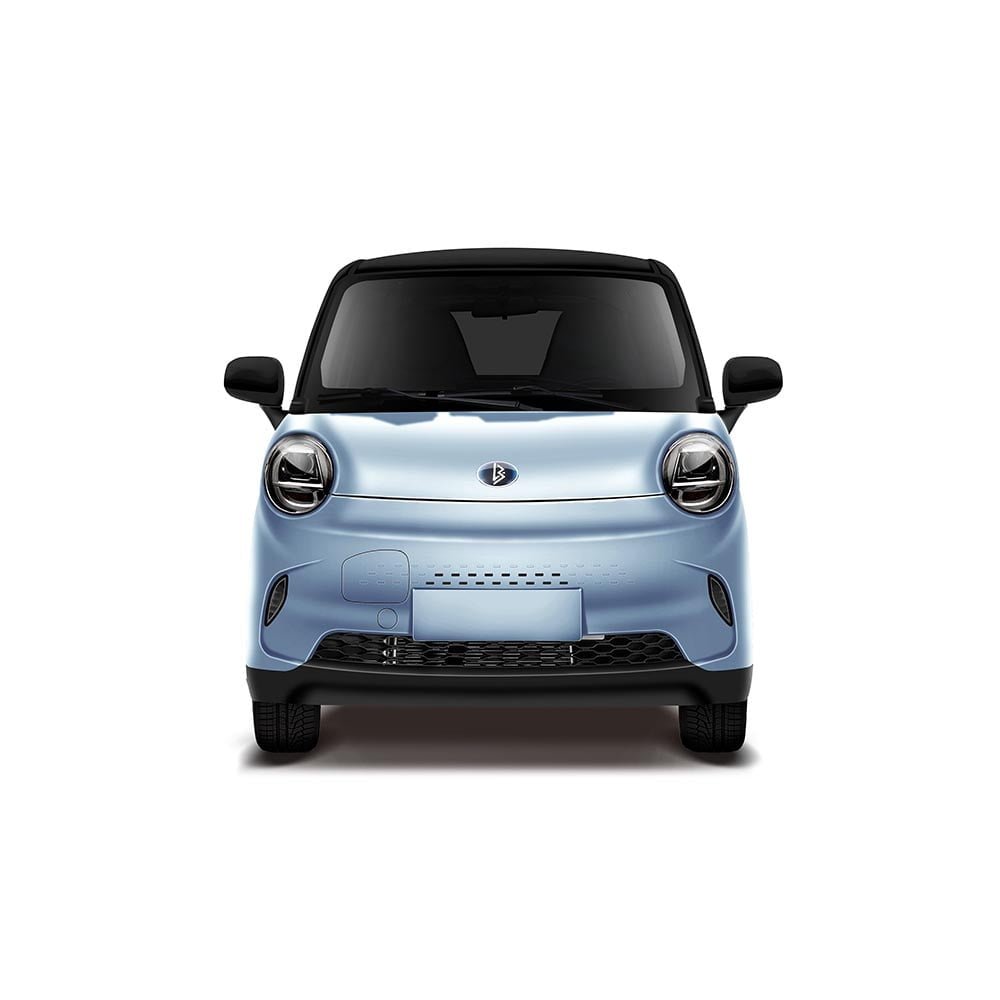

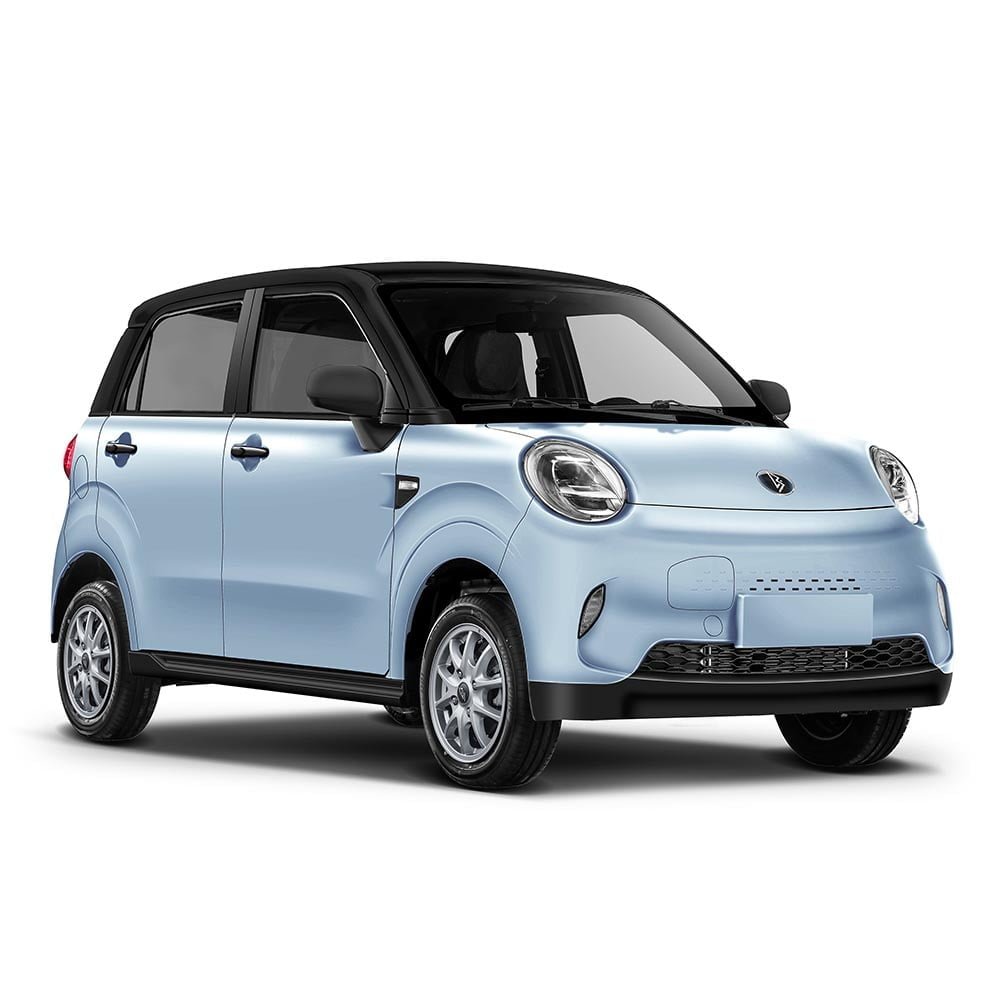

The Exterior design of Lingbox is positioned as an urban micro electric vehicle, adopting a sculpted streamline design, with agile aluminum alloy wheels and oval headlight clusters on both sides, as well as a penetrating air intake underneath, presenting a cute and adorable appearance. The side of the body adopts a floating roof design and offers four color combinations, including Tianshan White, Soul Crystal Red, Lapis Blue and Dome Blue, adding a sense of fashion.

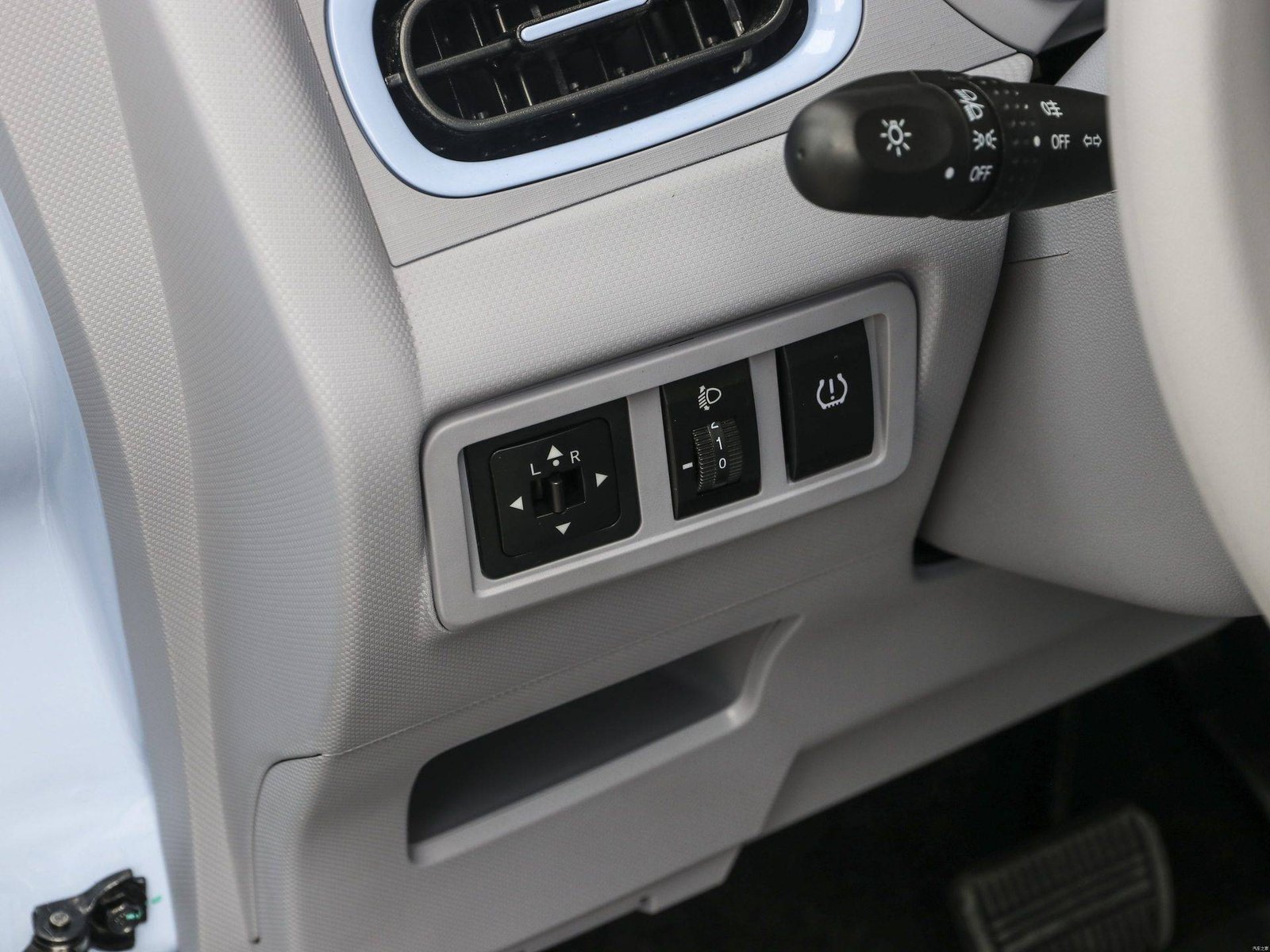

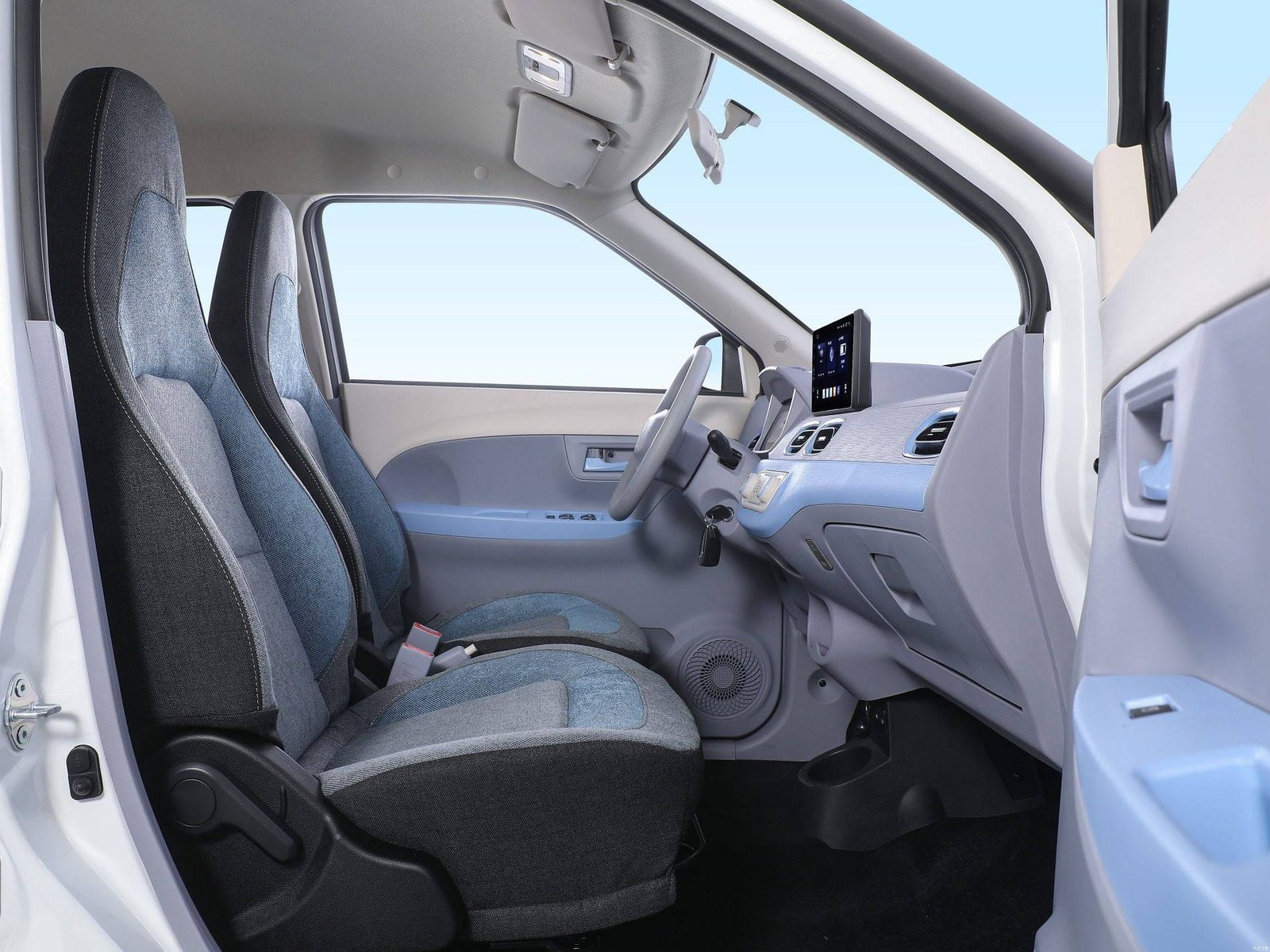

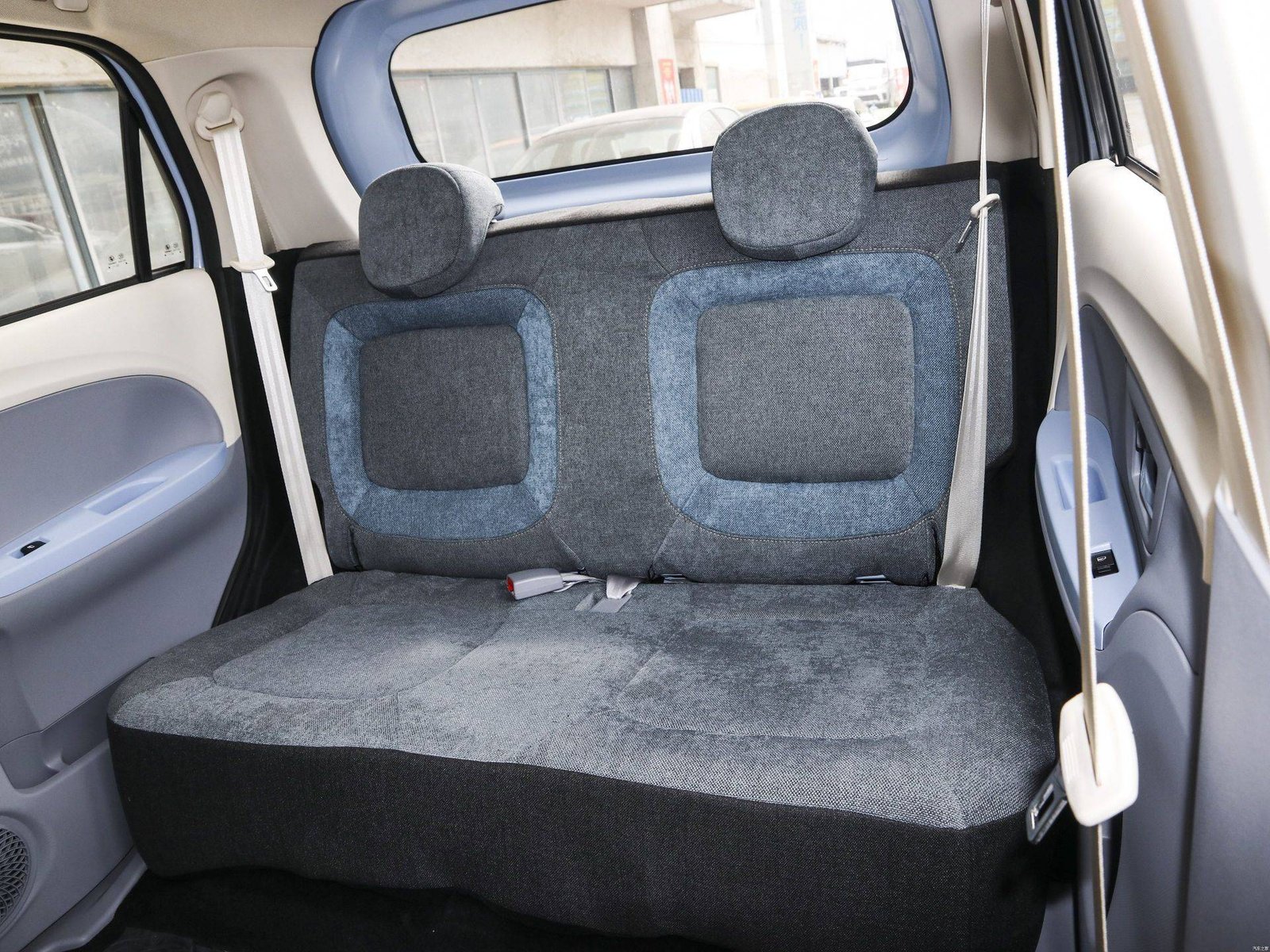

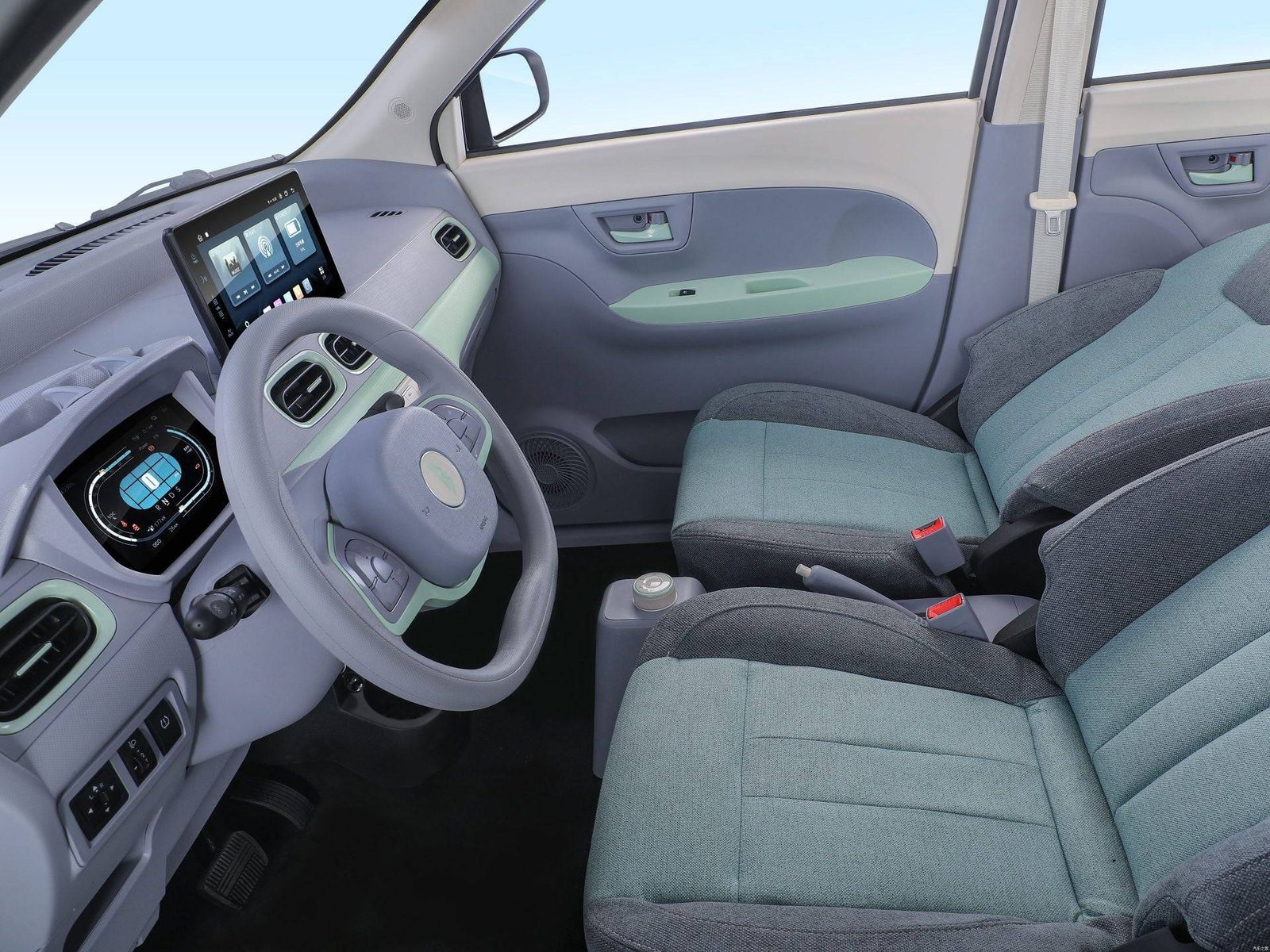

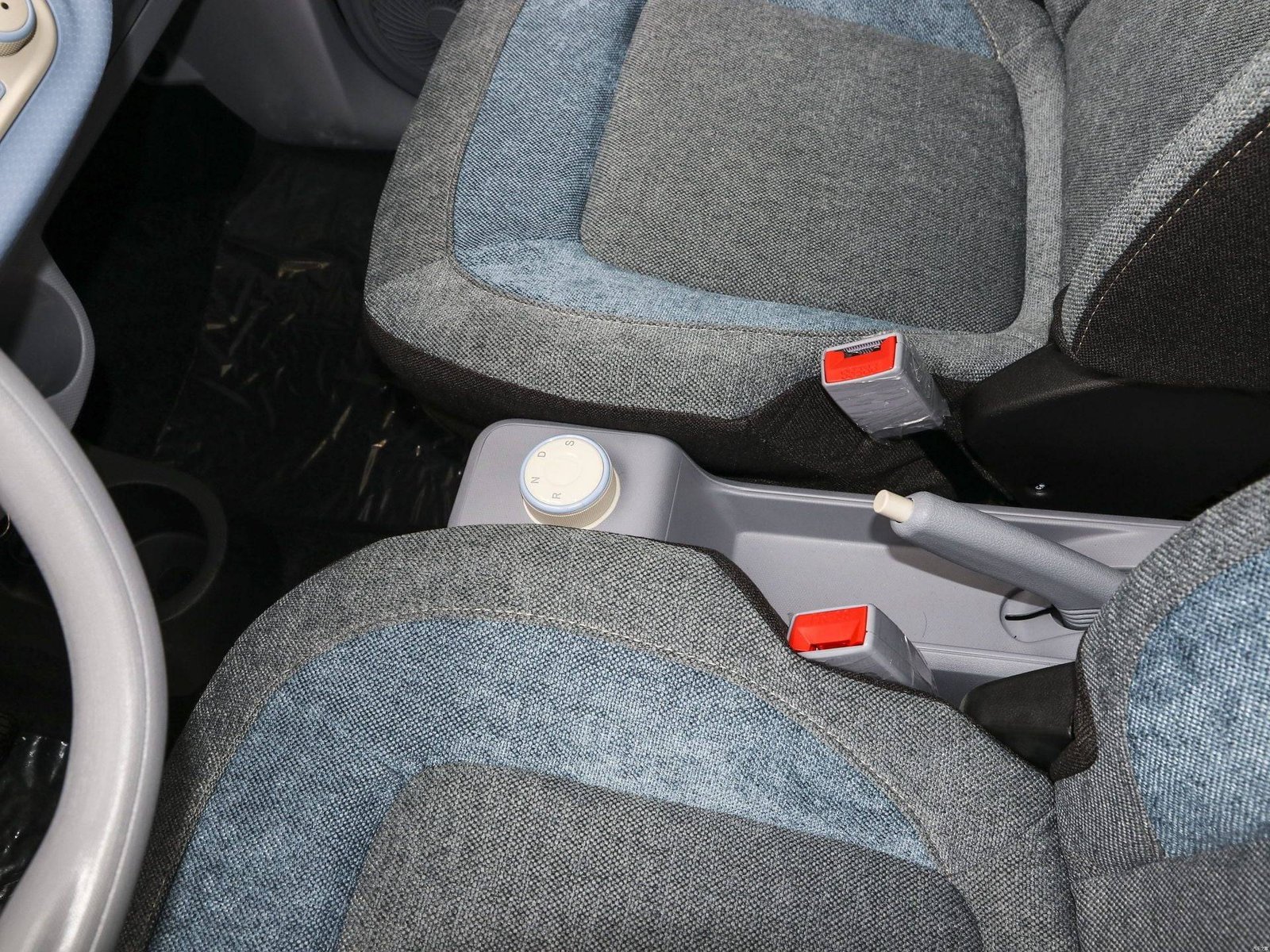

Interior

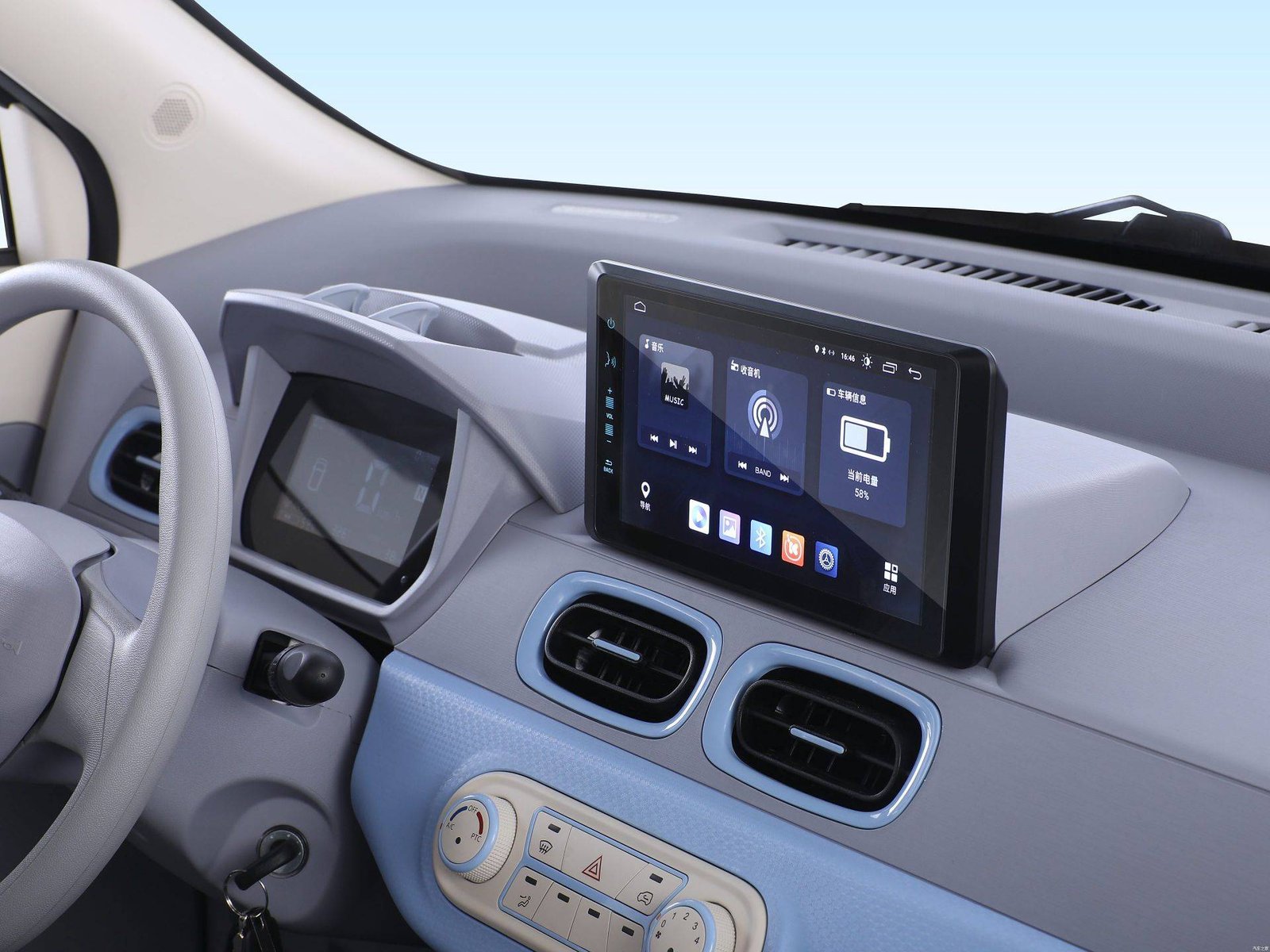

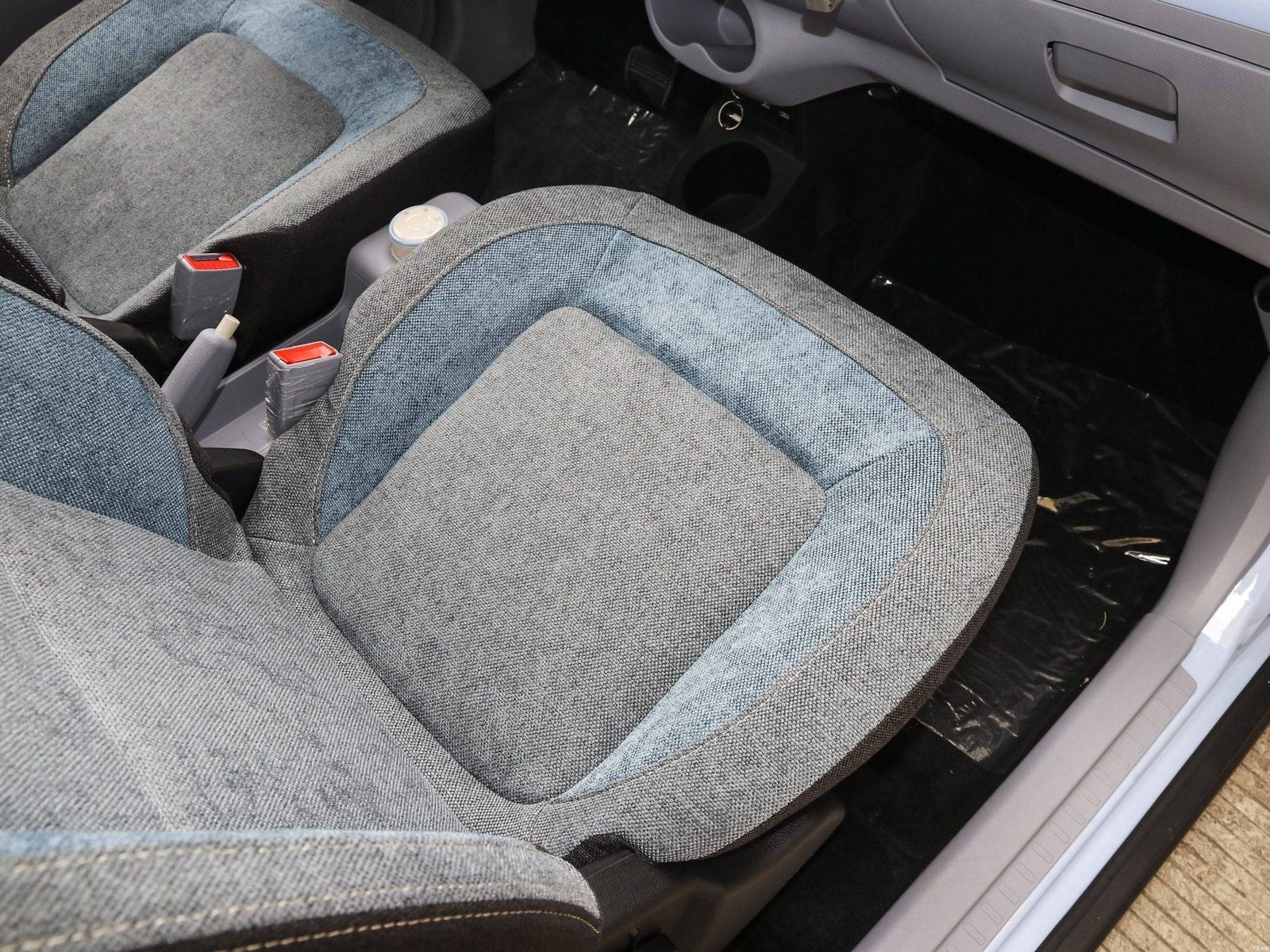

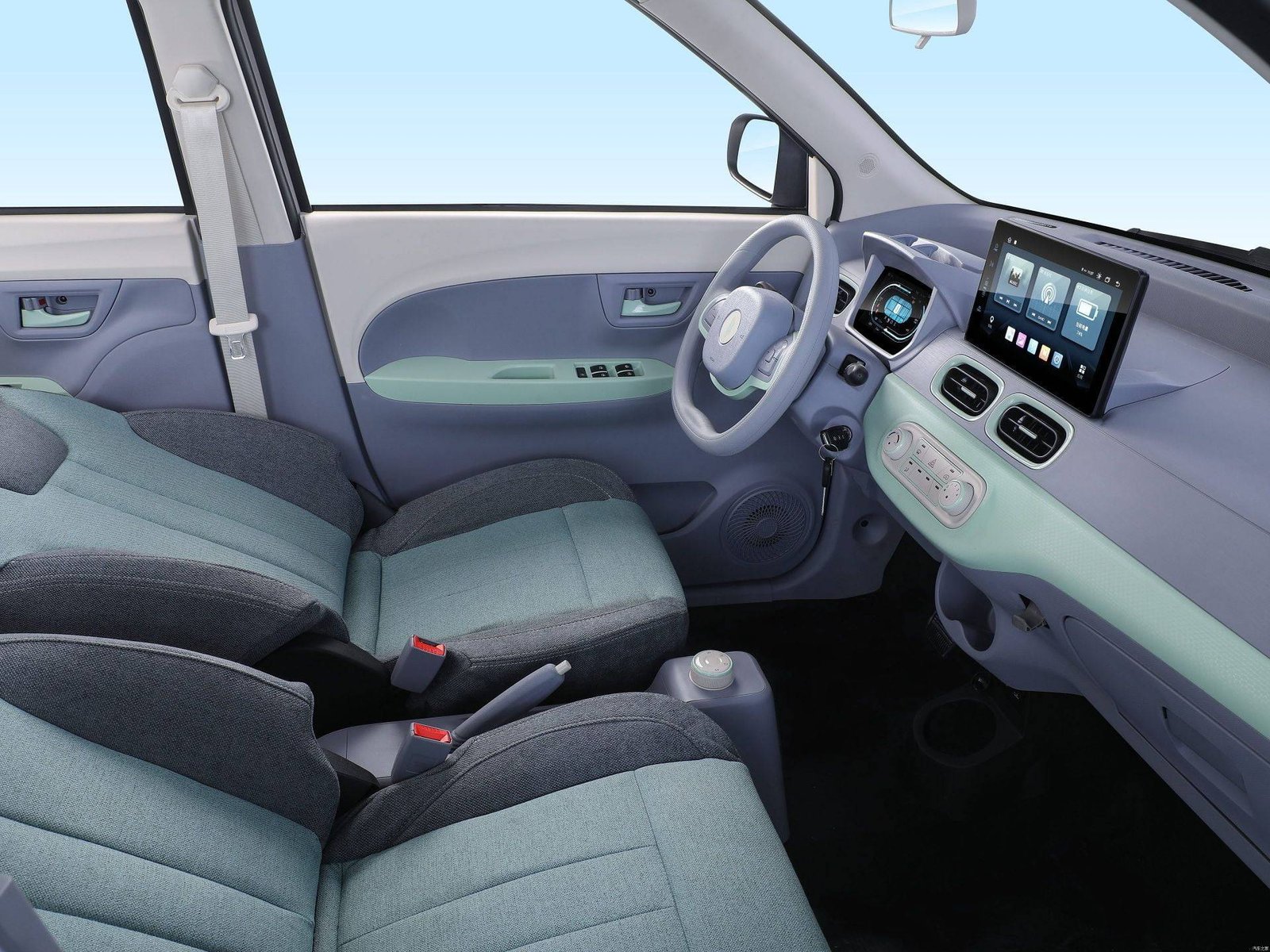

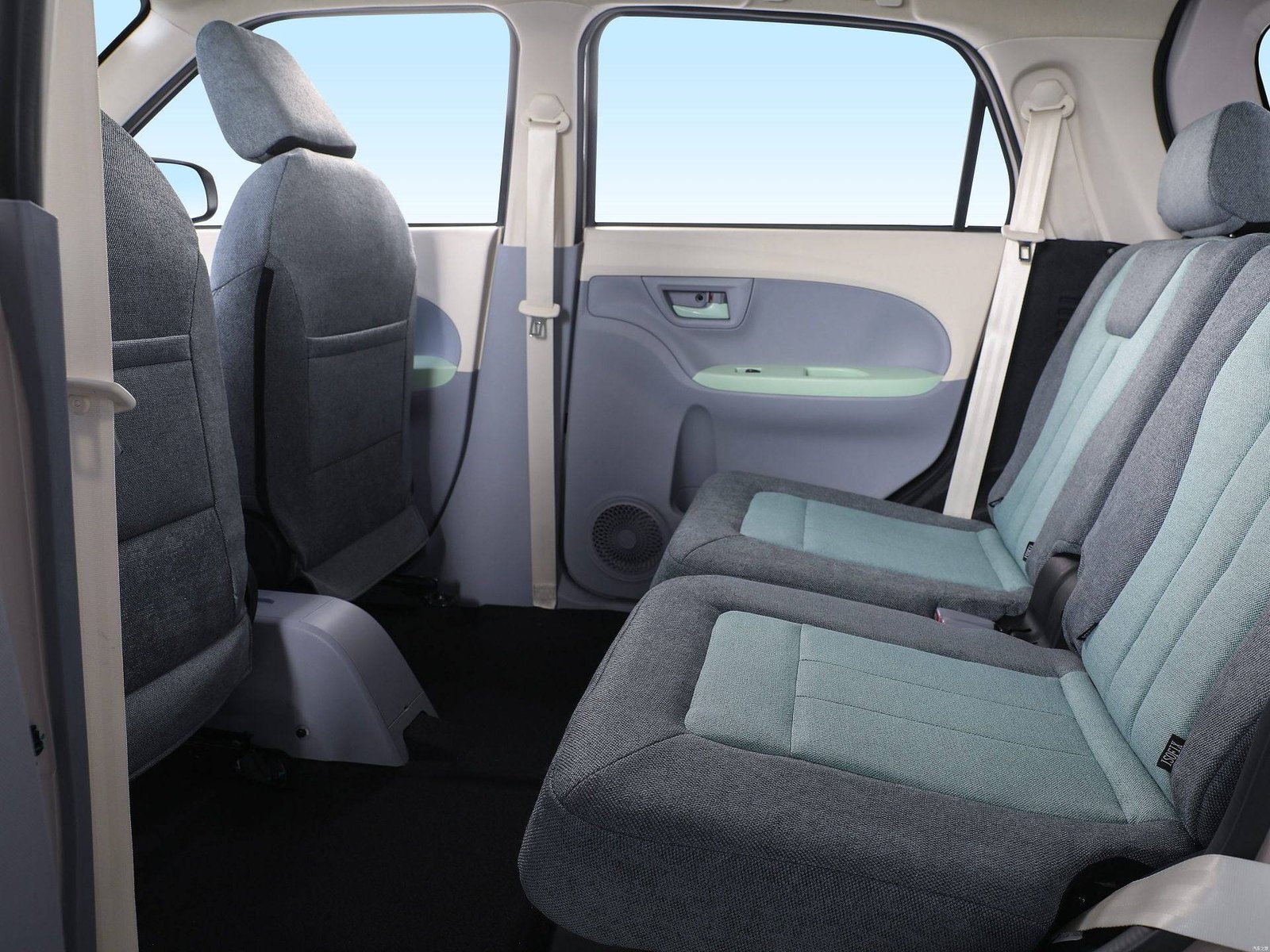

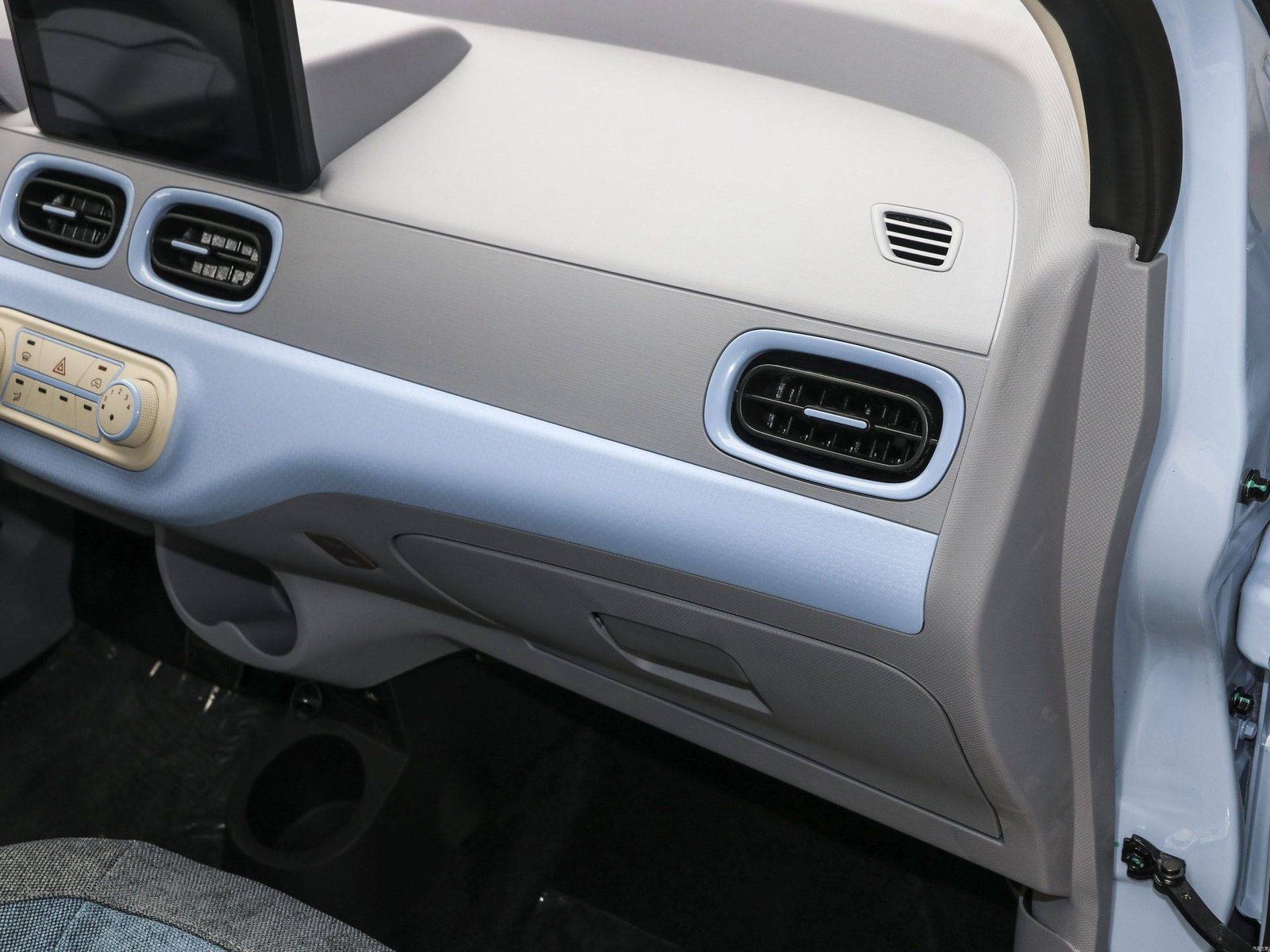

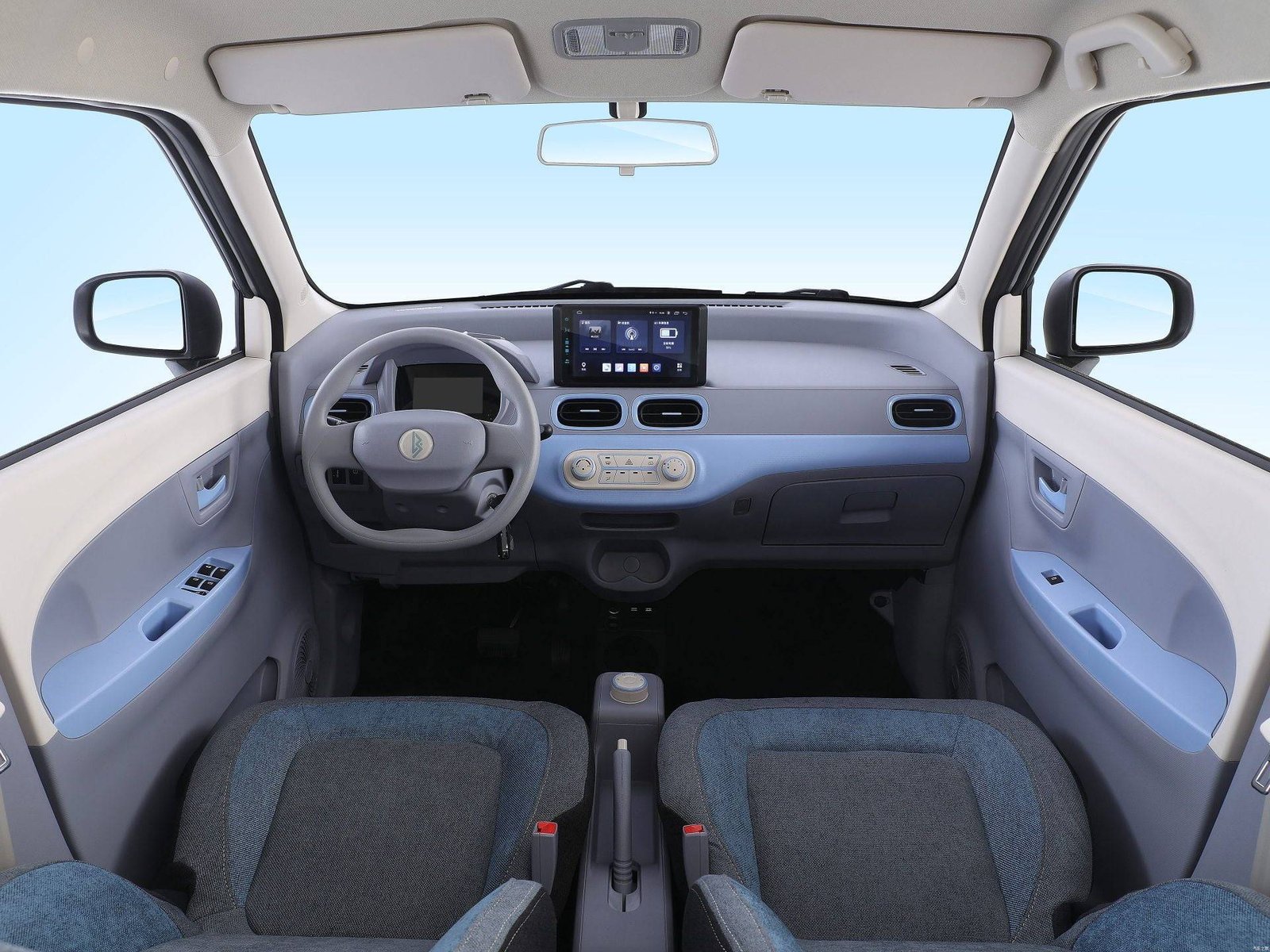

In terms of Interior, Lingbox Box adopts retro center interior design with PU material seats, which enhances the overall sense of quality. In terms of color matching, Lingbox Box has launched a black + red personalized color design, giving consumers more room for choice. At the same time, the car is also equipped with a three-spoke multi-function steering wheel, 9-inch color LCD large screen center console, etc., to enhance the sense of technology and modernity.
Performance
As for the power system, Lingbox Box is equipped with a permanent magnet synchronous motor with a maximum power of 45kW and a maximum torque of 150N-m, providing strong and stable power performance. As for the battery, it adopts a lithium iron phosphate battery pack, supporting fast and slow charging, and the fast charging can be filled with 80% of power in half an hour, with a NEDC range of up to 150km and a maximum speed of 102km/h, which can satisfy the needs of daily commuting and inner-city traveling.
Configuration
Lingbox offers three configurations to choose from, named after ancient talented women, namely Li Qingzhao Edition, Cai Wenji Edition and Zhuo Wenjun Edition, each corresponding to Lingbox’s graceful and dynamic characteristics. Although it is an entry-level micro electric vehicle, Lingbox still provides a number of convenient settings, such as manual air conditioning, rear radar, reversing camera and electrically adjustable mirrors to ensure driving convenience and comfort.
| 2024 Lingbox BOX Linear Edition | 2023 Lingbox BOX Caiwenji - Sport Edition | 2023 Lingbox BOX Caiwenji Edition | 2023 Lingbox BOX Caiwenji - Smart Edition | 2023 Lingbox BOX Caiwenji - Enjoyment Edition | 2022 Lingbox BOX Li Qingzhao Pro 14.08kWh | 2022 Lingbox BOX Caiwenji Pro | 2022 Lingbox BOX Chevron Pro | |
|---|---|---|---|---|---|---|---|---|
| Basic Information | ||||||||
| Post-subsidy price | - | - | - | - | - | - | - | 68.8 million |
| Availability | 2024.01 | 2023.02 | 2022.09 | 2022.11 | 2022.09 | 2022.06 | 2022.06 | 2022.06 |
| vehicle class | Miniature two-car | Miniature two-car | Miniature two-car | Miniature two-car | Miniature two-car | Miniature two-car | Miniature two-car | Miniature two-car |
| Length*Width*Height(mm) | 3584*1475*1666 | 3584*1475*1666 | 3584*1475*1666 | 3584*1475*1666 | 3584*1475*1666 | 3584*1475*1666 | 3584*1475*1666 | 3584*1475*1666 |
| Type of energy | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric |
| NEDC pure electric range (km) | - | - | - | - | - | 140 | - | - |
| CLTC pure electric range (km) | 220 | 205 | 220 | 220 | 220 | 145 | 205 | 320 |
| Total motor power (kW) | 35 | 25 | 35 | 35 | 35 | 30 | 30 | 35 |
| Total motor torque (N-m) | 125 | 105 | 125 | 125 | 125 | 95 | 95 | 125 |
| Maximum speed (km/h) | 101 | 101 | 101 | 101 | 101 | 101 | 101 | 101 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery |
| Battery capacity (kWh) | 19.2 | 17.28 | 19.2 | 19.2 | 19.2 | 14.08 | 19.13 | 31.45 |
| Fast charging time (h) | - | - | 1.2 | 1.2 | 1.2 | - | - | 1.2 |
| Fast charging capacity (%) | 80 | 80 | 80 | 80 | 80 | - | - | 80 |
| Warranty Policy | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers |
| body of automobile | ||||||||
| Length (mm) | 3584 | 3584 | 3584 | 3584 | 3584 | 3584 | 3584 | 3584 |
| Width (mm) | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 | 1475 |
| Height (mm) | 1666 | 1666 | 1666 | 1666 | 1666 | 1666 | 1666 | 1666 |
| Wheelbase (mm) | 2455 | 2455 | 2455 | 2455 | 2455 | 2455 | 2455 | 2455 |
| Front wheelbase(mm) | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 | 1300 |
| Rear wheelbase(mm) | 1295 | 1295 | 1295 | 1295 | 1295 | 1295 | 1295 | 1295 |
| Weight (kg) | 955 | 893 | 955 | 955 | 955 | 865 | 920 | 970 |

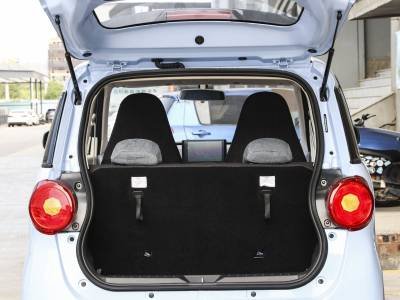

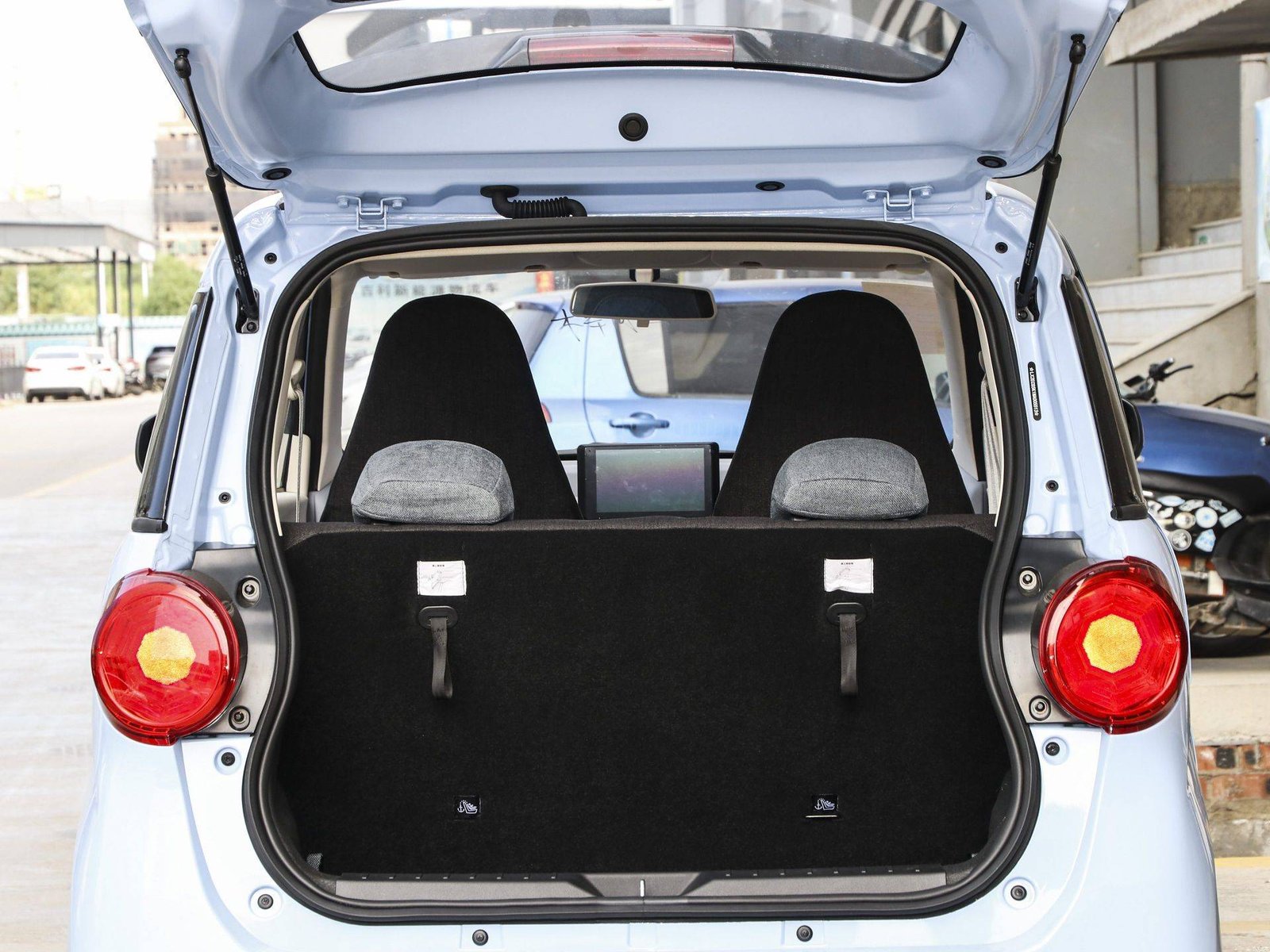

| Luggage compartment volume (L) | 63 | 63 | 63 | 63 | 63 | 63 | 63 | 63 |
| Number of doors (pcs) | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats (pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| electric motor | ||||||||
| Total motor power (kW) | 35 | 25 | 35 | 35 | 35 | 30 | 30 | 35 |
| Total motor torque (N-m) | 125 | 105 | 125 | 125 | 125 | 95 | 95 | 125 |
| Maximum power of front electric motor (kW) | 35 | 25 | 35 | 35 | 35 | 30 | 30 | 35 |
| Maximum torque of front motor (N-m) | 125 | 105 | 125 | 125 | 125 | 95 | 95 | 125 |
| NEDC pure electric range (km) | - | - | - | - | - | 140 | - | - |
| CLTC pure electric range (km) | 220 | 205 | 220 | 220 | 220 | 145 | 205 | 320 |
| Battery capacity (kWh) | 19.2 | 17.28 | 19.2 | 19.2 | 19.2 | 14.08 | 19.13 | 31.45 |
| 100km power consumption (kWh/100km) | 10 | 9.8 | 10 | 10 | 10 | 10 | 10.5 | 10.4 |
| Slow charging time (h) | - | 7 | 11 | 11 | 11 | - | 10 | 15 |
| Fast charging time (h) | - | - | 1.2 | 1.2 | 1.2 | - | - | 1.2 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | single motor | single motor | single motor | single motor | single motor | single motor | single motor |
| Motor Layout | preamplifier | preamplifier | preamplifier | preamplifier | preamplifier | preamplifier | preamplifier | preamplifier |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery |
| Battery Cell Brands | Nanjing Zhongbi, capital of China (Tw) | Nanjing Zhongbi, capital of China (Tw) | Nanjing Zhongbi, capital of China (Tw) | Nanjing Zhongbi, capital of China (Tw) | Nanjing Zhongbi, capital of China (Tw) | Shanghai Lanjun | Ripple Energy | Vernon Technologies |
| Battery Energy Density(Wh/kg) | 102.38 | 100.03 | 102.38 | 102.38 | 102.38 | 123.99 | 114 | 160 |
| fast charging function | - | - | be in favor of | be in favor of | be in favor of | - | - | be in favor of |
| Fast charging capacity (%) | 80 | 80 | 80 | 80 | 80 | - | - | 80 |
| Battery Pack Warranty | Eight years or 120,000 kilometers | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Unlimited years/mileage for first owner (liability waivers are subject to official terms) | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers |
| Battery preheating | โ | โ | โ | โ | โ | โ | โ | โ |
| Chassis/steering | ||||||||
| Driving form | front drive | rear drive | front drive | front drive | front drive | front drive | front drive | front drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension | Integral Axle Non-Independent Suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | ||||||||
| Front/Rear Brake Type | Disc / Drum | Disc / Drum | Disc / Drum | Disc / Drum | Disc / Drum | Disc / Drum | Disc / Drum | Disc / Drum |
| Parking brake type | handbrake | handbrake | handbrake | handbrake | handbrake | handbrake | handbrake | handbrake |
| Front Tire Specification | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 |
| Rear Tire Specification | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 | 165/65 R14 |
| Wheel Material | Aluminum option | Aluminum option | Aluminum option | Aluminum option | Aluminum option | Aluminum option | Aluminum option | Aluminum option |
| Active/passive safety features | ||||||||
| ABS anti-lock | โ | โ | โ | โ | โ | โ | โ | โ |
| Brake force distribution (EBD/CBC etc.) | โ | โ | โ | โ | โ | โ | โ | โ |
| front exhaust airbag | :: Driver's airbag | - | - | :: Driver's airbag | :: Driver's airbag | - | - | โDriver's airbag |
| Tire Pressure Detection Device | โ Alarms | โ Alarms | โ Alarms | โ Alarms | โ Alarms | โ Alarms | โ Alarms | โ Alarms |
| Seat Belt Reminder | โPrincipal Driver | โPrincipal Driver | โPrincipal Driver | โPrincipal Driver | โPrincipal Driver | โPrincipal Driver | โPrincipal Driver | โPrincipal Driver |
| ISOFIX child restraints | โ | โ | โ | โ | โ | โ | โ | โ |
| Auxiliary/Manipulation Configurations | ||||||||
| parking radar | โ Post | โ Post | โ Post | โ Post | โ Post | โ Post | โ Post | โ Post |
| Driver Assistance Video | โ Backup camera | โ Backup camera | โ Backup camera | โ Backup camera | โ Backup camera | โ Backup camera | โ Backup camera | โ Backup camera |
| Driving Mode Switching | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns | :: Campaigns |
| :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | :: Standard/comfort | |
| hill-holding aid | โ | โ | โ | โ | โ | โ | โ | โ |
| External/anti-theft configurations | ||||||||
| Key Type | โRemote key | โRemote key | โRemote key | โRemote key | โRemote key | โRemote key | โRemote key | โRemote key |
| Keyless Start System | โ | - | - | - | - | - | - | - |
| Remote start function | โ | - | - | - | - | - | - | - |
| Central locking in the car | โ | โ | โ | โ | โ | โ | โ | โ |
| Internal Configuration | ||||||||
| Steering wheel material | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics |
| Steering wheel functions | :: Multifunctionality | - | - | :: Multifunctionality | :: Multifunctionality | - | - | - |
| Sun visor vanity mirror | โ | โ | โ | โ | โ | โ | โ | โ |
| Liquid crystal instrument size | 7 inches. | 7 inches. | - | - | 7 inches. | - | - | 7 inches. |
| seating | ||||||||
| Seat Material | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics |
| โFaux Leather | โFaux Leather | โFaux Leather | โFaux Leather | โFaux Leather | โFaux Leather | โFaux Leather | โFaux Leather | |
| Integral adjustment of the main driver's seat | โBefore and after | โBefore and after | โBefore and after | โBefore and after | โBefore and after | โBefore and after | โBefore and after | โBefore and after |
| โBackrests | โBackrests | โBackrests | โBackrests | โBackrests | โBackrests | โBackrests | โBackrests | |
| โHeight(2-way) | :: High and low | :: High and low | :: High and low | :: High and low | ||||
| Passenger seat overall adjustment | โBefore and after | โBefore and after | โBefore and after | โBefore and after | โBefore and after | โBefore and after | โBefore and after | โBefore and after |
| โBackrests | โBackrests | โBackrests | โBackrests | โBackrests | โBackrests | โBackrests | โBackrests | |

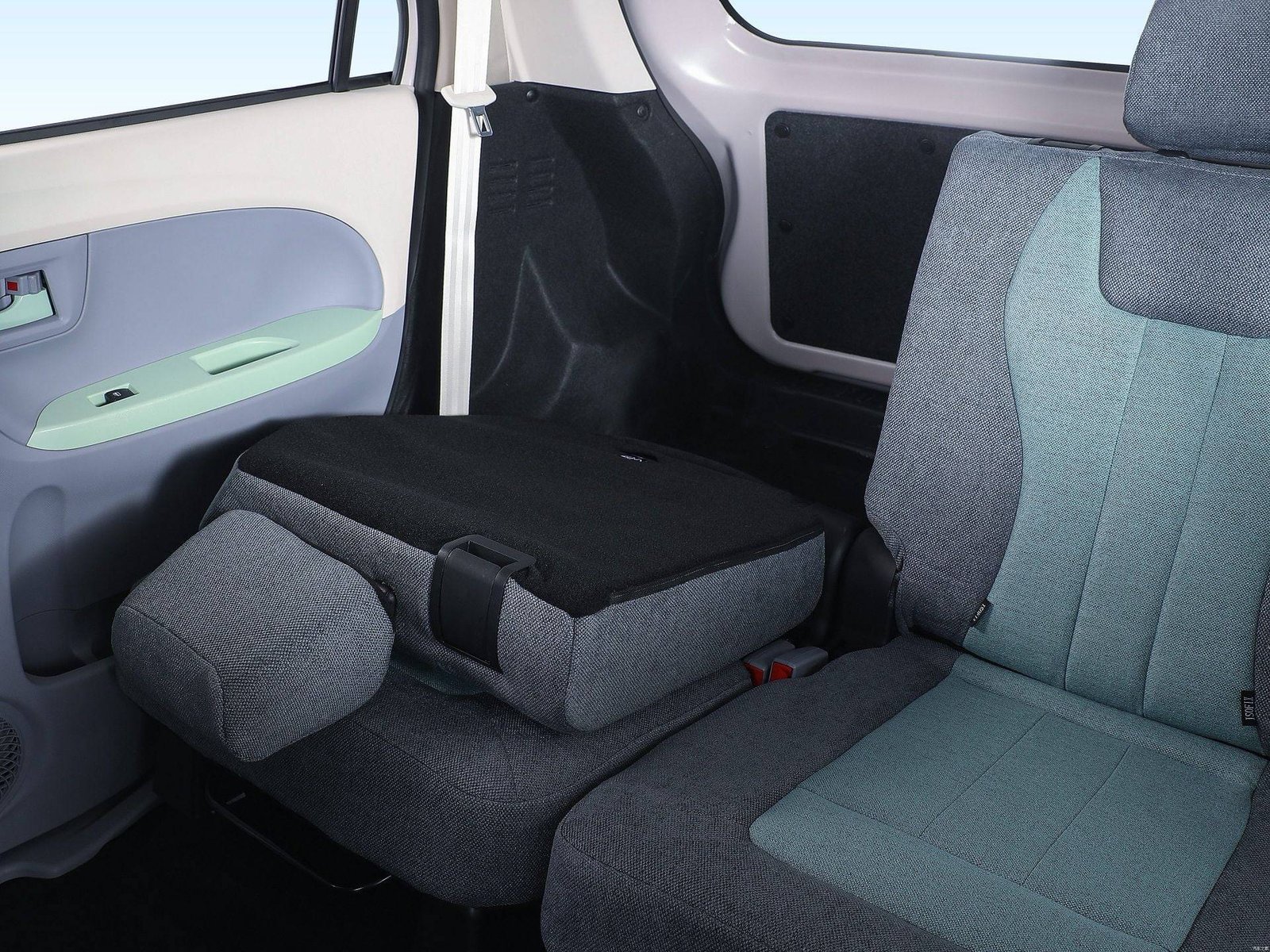

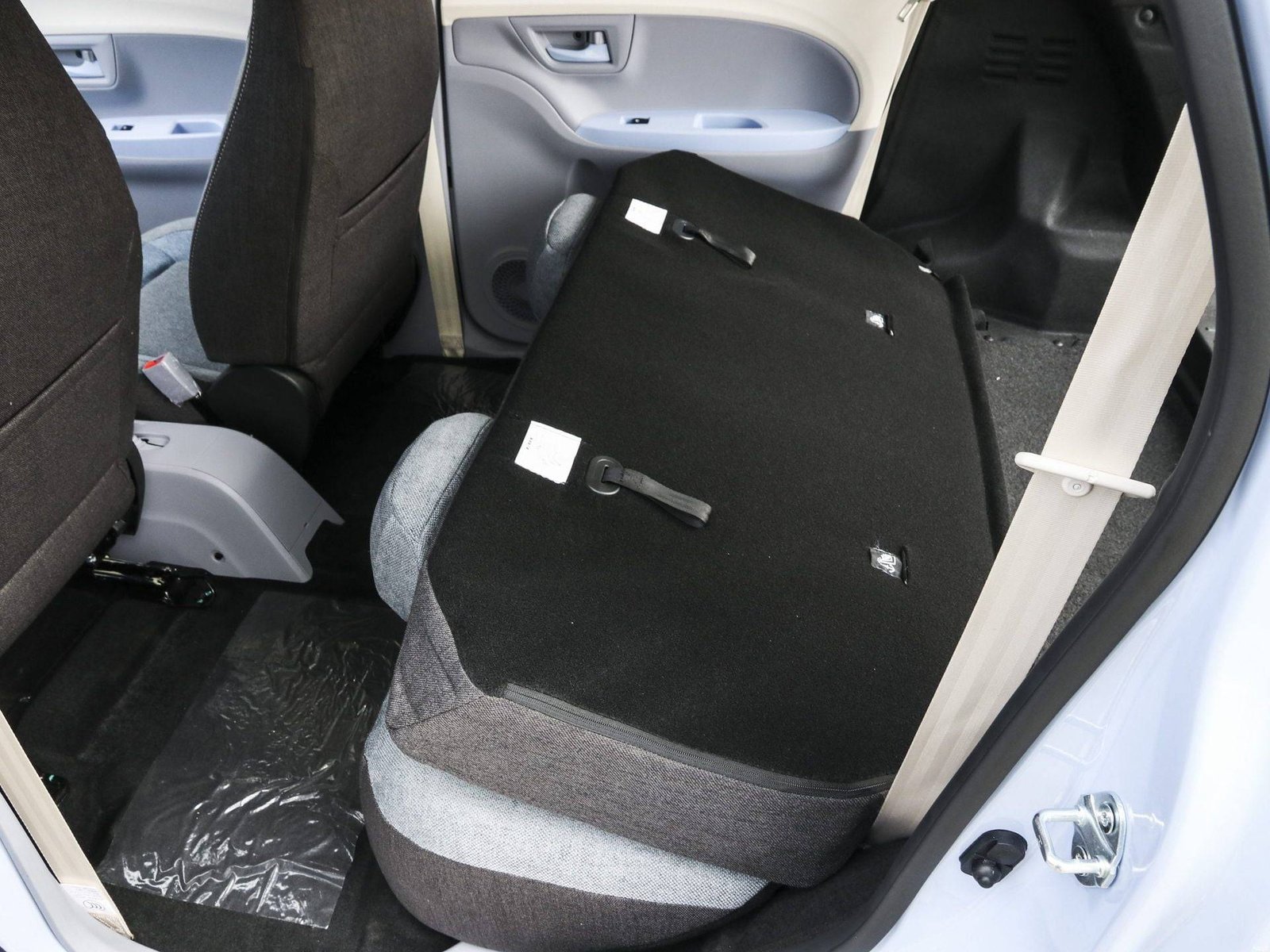

| Second row seat adjustment | Zero-percentage down. | โ Integral lowering | โ Integral lowering | โ Integral lowering | โAngle adjustable | โ Integral lowering | โ Integral lowering | โ Integral lowering |
| โ Integral lowering | โ Seat movement | |||||||
| multimedia | โProportional lowering | |||||||
| Large color screen in the center console | โ | โ | โ | โ | โ | โ | โ | โ |

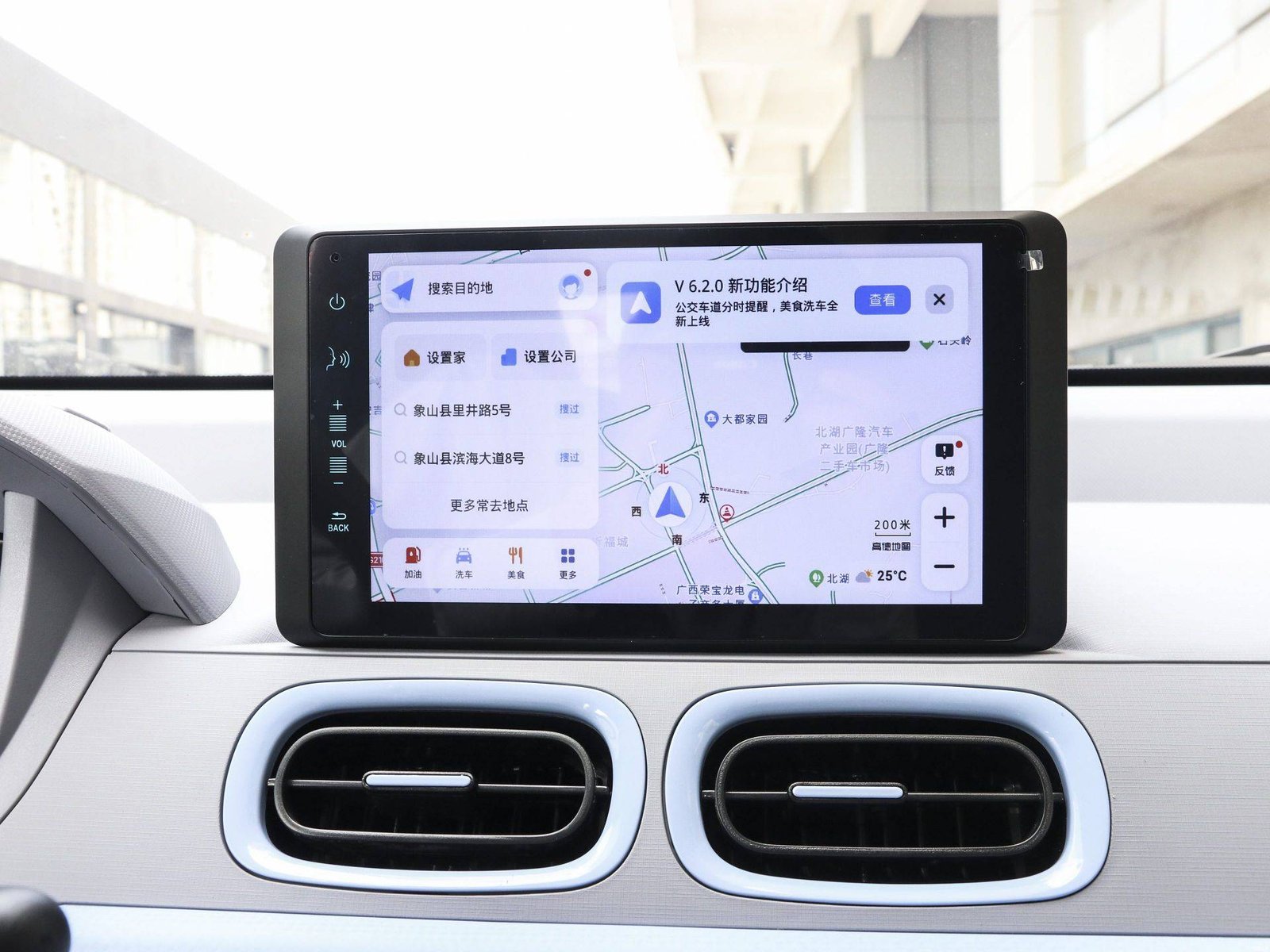

| satellite navigation system | - | โ | โ | โ | โ | โ | โ | โ |
| Mobile APP Remote Function | โDoor control | - | - | - | - | - | - | - |
| โ Vehicle start-up | ||||||||
| โ Charge management | ||||||||
| โ Air conditioning control | ||||||||
| :: Vehicle location/search | ||||||||
| Bluetooth/Car Phone | โ | โ | โ | โ | โ | โ | โ | โ |
| Cell phone connectivity/mapping | - | โ Factory Connect/Mapping | โ Factory Connect/Mapping | โ Factory Connect/Mapping | โ Factory Connect/Mapping | โ Factory Connect/Mapping | โ Factory Connect/Mapping | โFactory connectivity/mapping |
| Number of audio speakers | 6 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Voice Recognition Control System | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems | :: Multimedia systems |
| :: Telephone | :: Navigation | :: Navigation | :: Navigation | :: Navigation | :: Navigation | :: Navigation | :: Navigation | |
| :: Telephone | :: Telephone | :: Telephone | :: Telephone | :: Telephone | :: Telephone | :: Telephone | ||
| Center screen size | โ10.1 inches | - | - | - | - | - | - | - |
| 4G/5G networks | โ4G | - | - | - | - | - | - | - |
| Telematics | โ | - | - | - | - | - | - | - |
| OTA upgrade | โ | - | - | - | - | - | - | - |
| Interface Support | โUSB port | โUSB port | โUSB port | โUSB port | โ USB port | โ USB port | โ USB port | โ USB port |
| (stage) lighting | ||||||||
| low beam (headlights) | โLED | โ Halogen | โ Halogen | โ Halogen | โ Halogen | โ Halogen | โ Halogen | โ Halogen |
| high beam (headlights) | โLED | โ Halogen | โ Halogen | โ Halogen | โ Halogen | โ Halogen | โ Halogen | โ Halogen |
| LED daytime running lights | โ | โ | โ | โ | โ | โ | โ | โ |
| Adjustable headlights | โ | โ | โ | โ | โ | โ | โ | โ |
| Delayed headlight off | โ | โ | โ | โ | โ | โ | โ | โ |
| Glass/Mirror | ||||||||

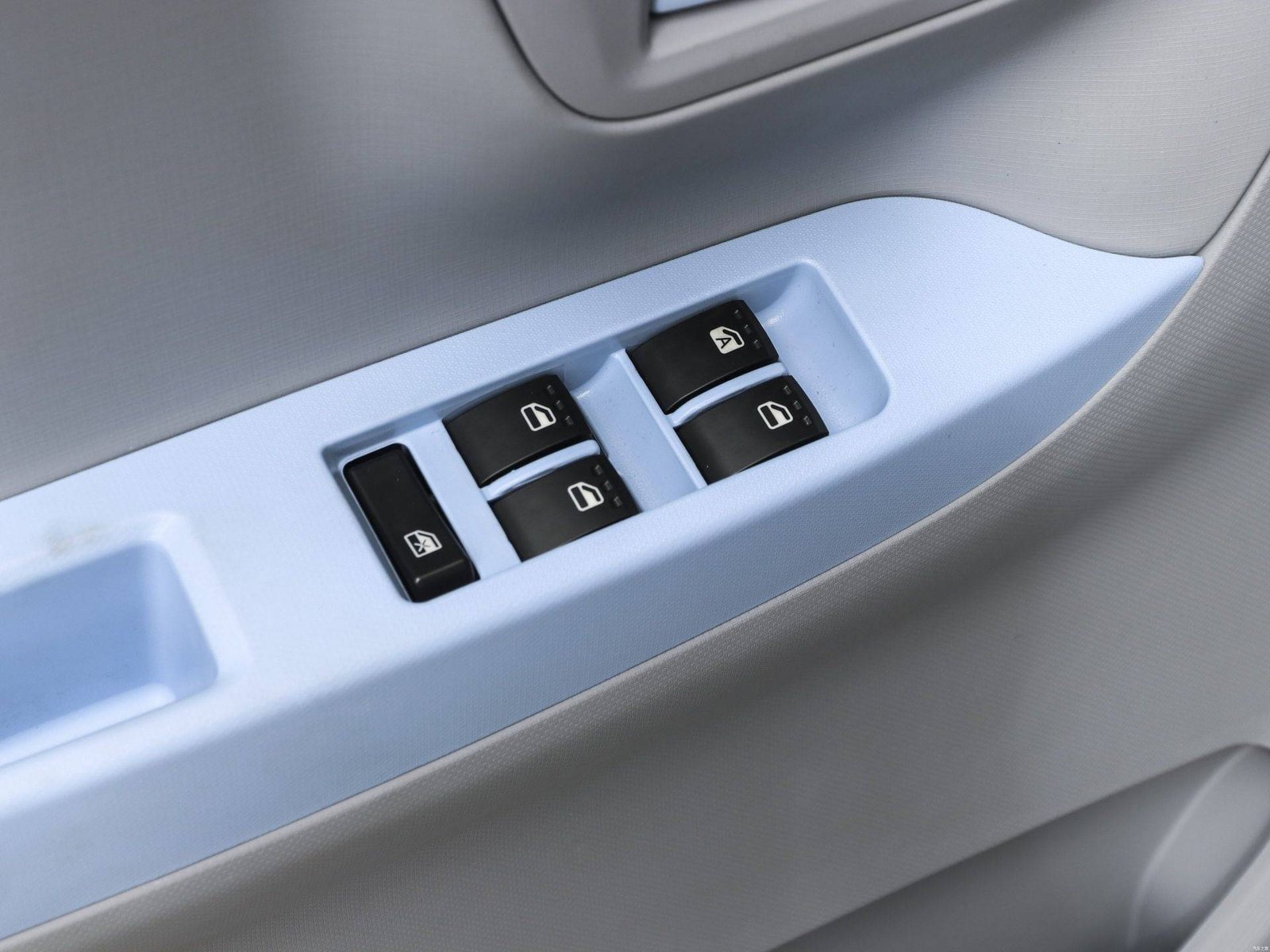

| power window | โForward | โForward | โForward | โForward | โForward | โForward | โForward | โForward |
| โ Post | โ Post | โ Post | โ Post | โ Post | โ Post | โ Post | โ Post | |
| outside rearview mirror | โMotorized adjustment | โMotorized adjustment | โMotorized adjustment | โMotorized adjustment | โMotorized adjustment | โMotorized adjustment | โMotorized adjustment | โMotorized adjustment |
| rearview mirror | โManual anti-glare | โManual anti-glare | โManual anti-glare | โManual anti-glare | โManual anti-glare | โManual anti-glare | โManual anti-glare | โManual anti-glare |

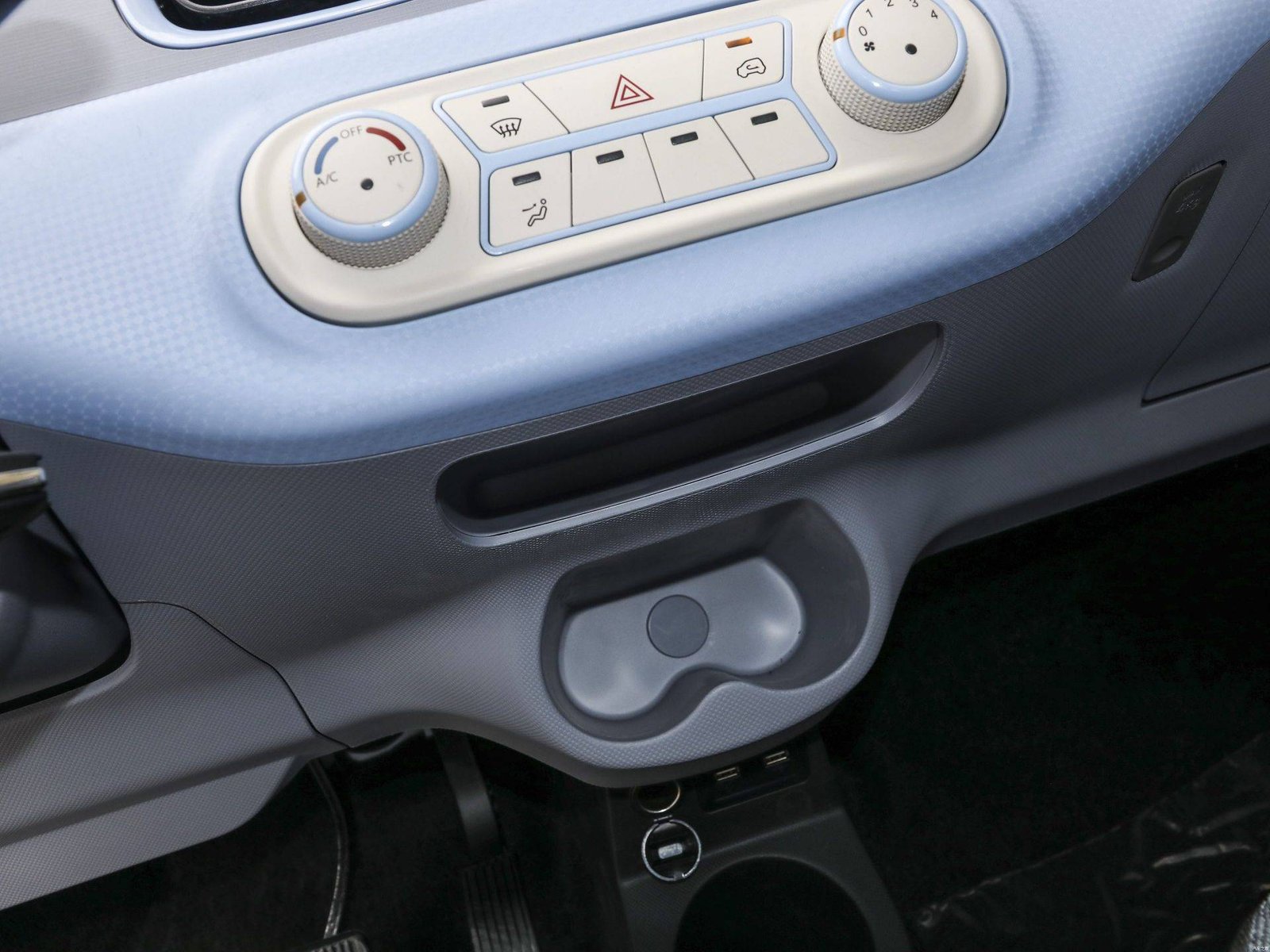

| Air conditioners/refrigerators | ||||||||
| Air conditioning control method | โManual control | โManual control | โManual control | โManual control | โManual control | โManual control | โManual control | โManual control |
