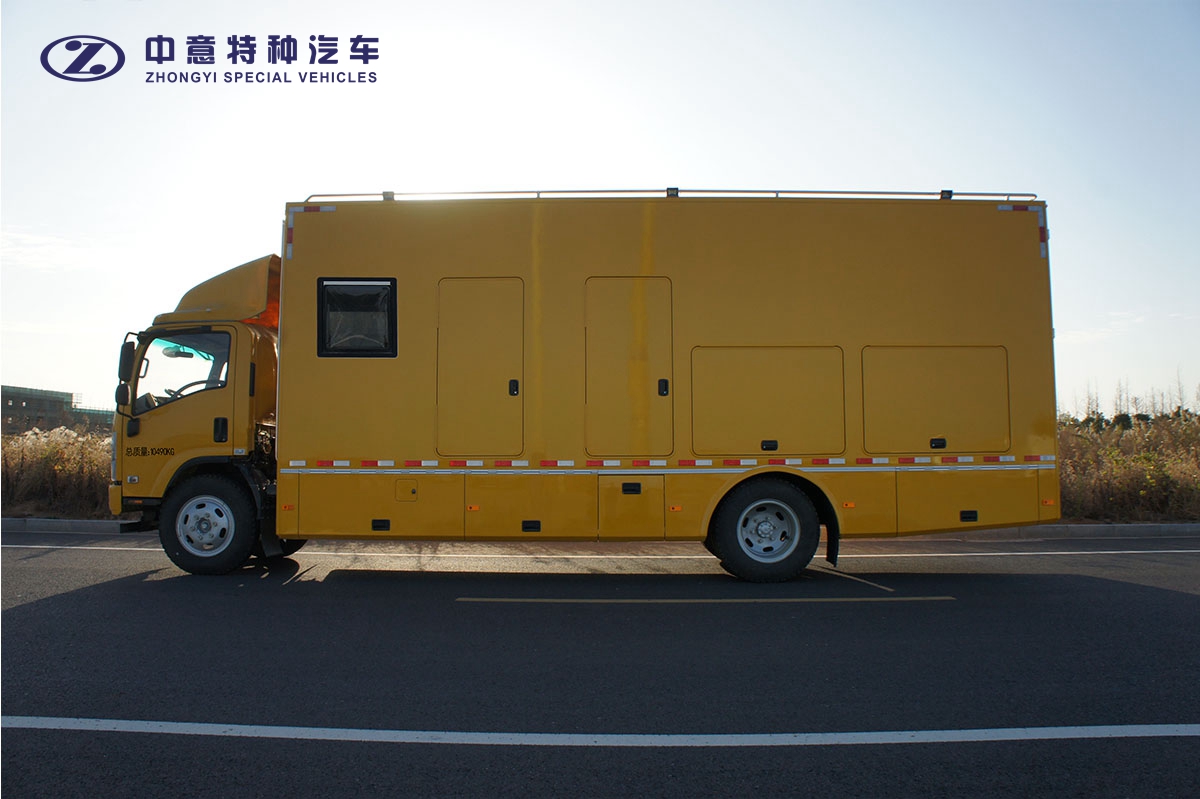

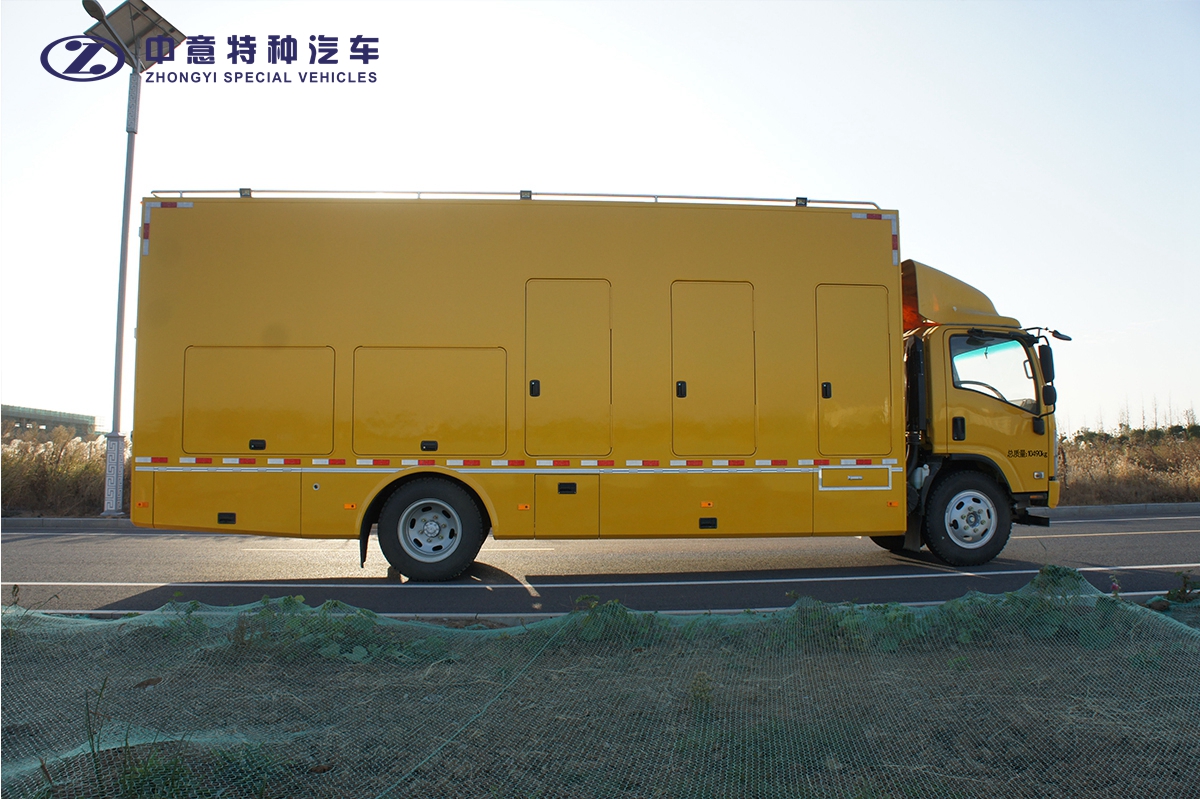

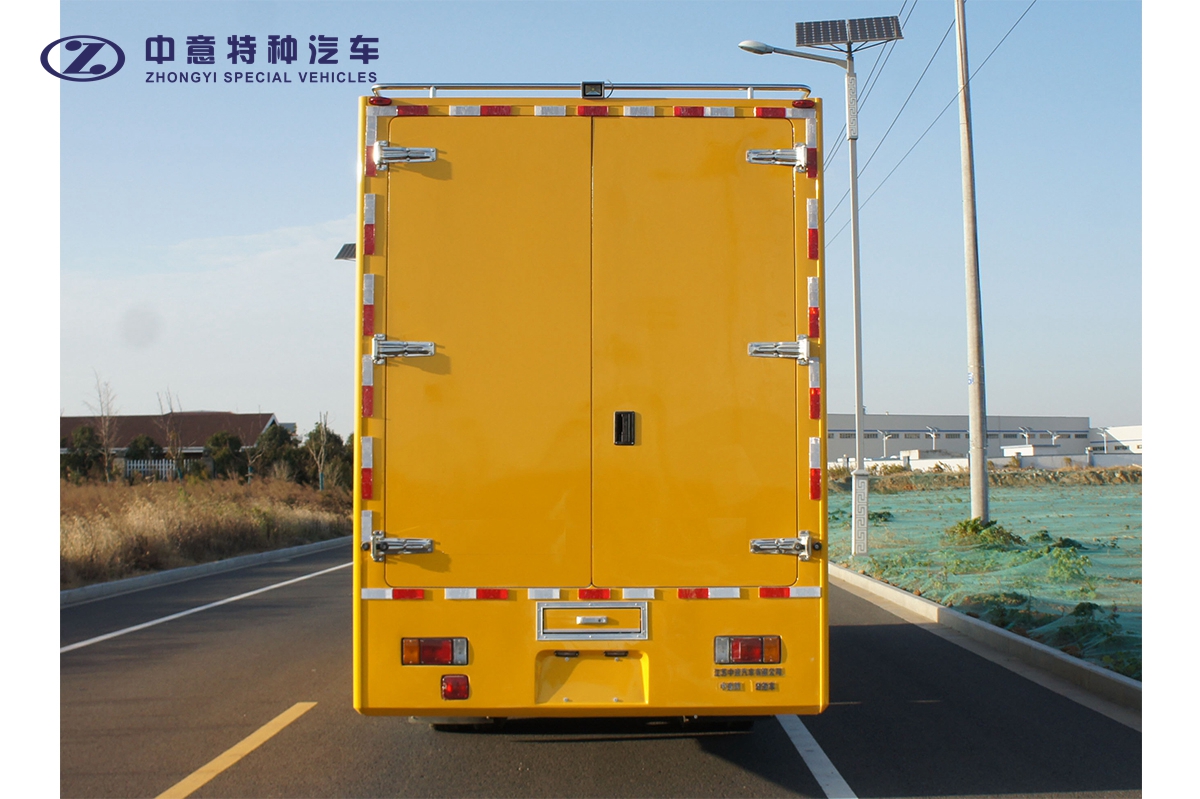

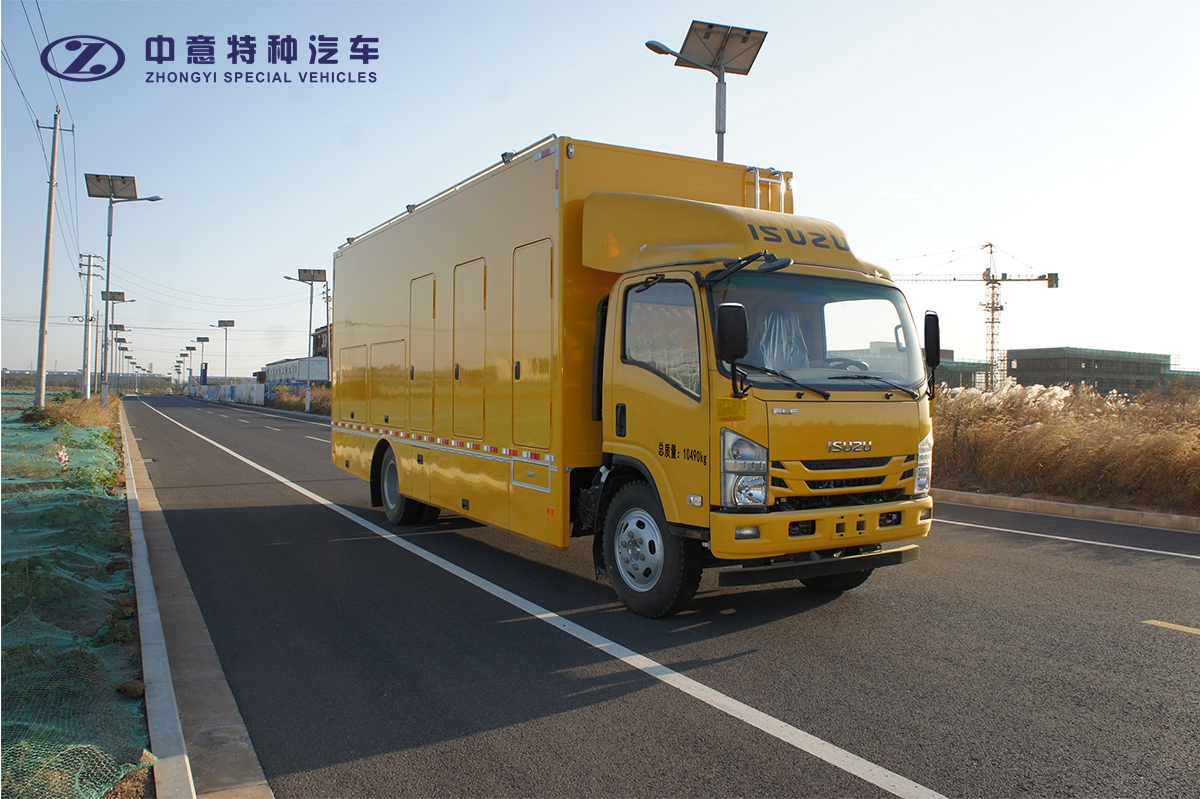

The vehicle is equipped with optional on-board generator set and optional cable tray. Roof optional guardrail and site lighting, optional lifting, inverted lighting equipment, optional deflector cover. Both sides of the compartment are equipped with optional exhaust door, cable door, maintenance door, operation door, air intake door; left side optional monitoring window, right side optional monitoring room door, both sides of the skirt optional multiple tools door. Rear optional double doors. The lower part of the two sides and the lower part of the rear for the skirt type enclosure protection, rear protection height from the ground 490mm. the chassis is equipped with ABS; ABS and controller model: APG3550500H1.
| SZY5105XDYQ | |
|---|---|
| Length (mm) | 9100 |
| Width (mm) | 2340 |
| Height(mm) | 3350/3570/3970 |
| Curb mass (kg) | 10295/9805/9305 |
| ABS System | Yes |
| Maxium Speed (km/h) | 110 |
| Number of Seats | 3 |
| Front/Rear Overhang (mm) | 1100/2790 |
| Approach angle (°) | 17/20 |
| Departure angle (°) | 10 |
| Chassis ID | 3204061 |
| Chassis Model | QL1110ANPAY |
| Chassis Category | Category II |
| Chassis Name | Truck Chassis |
