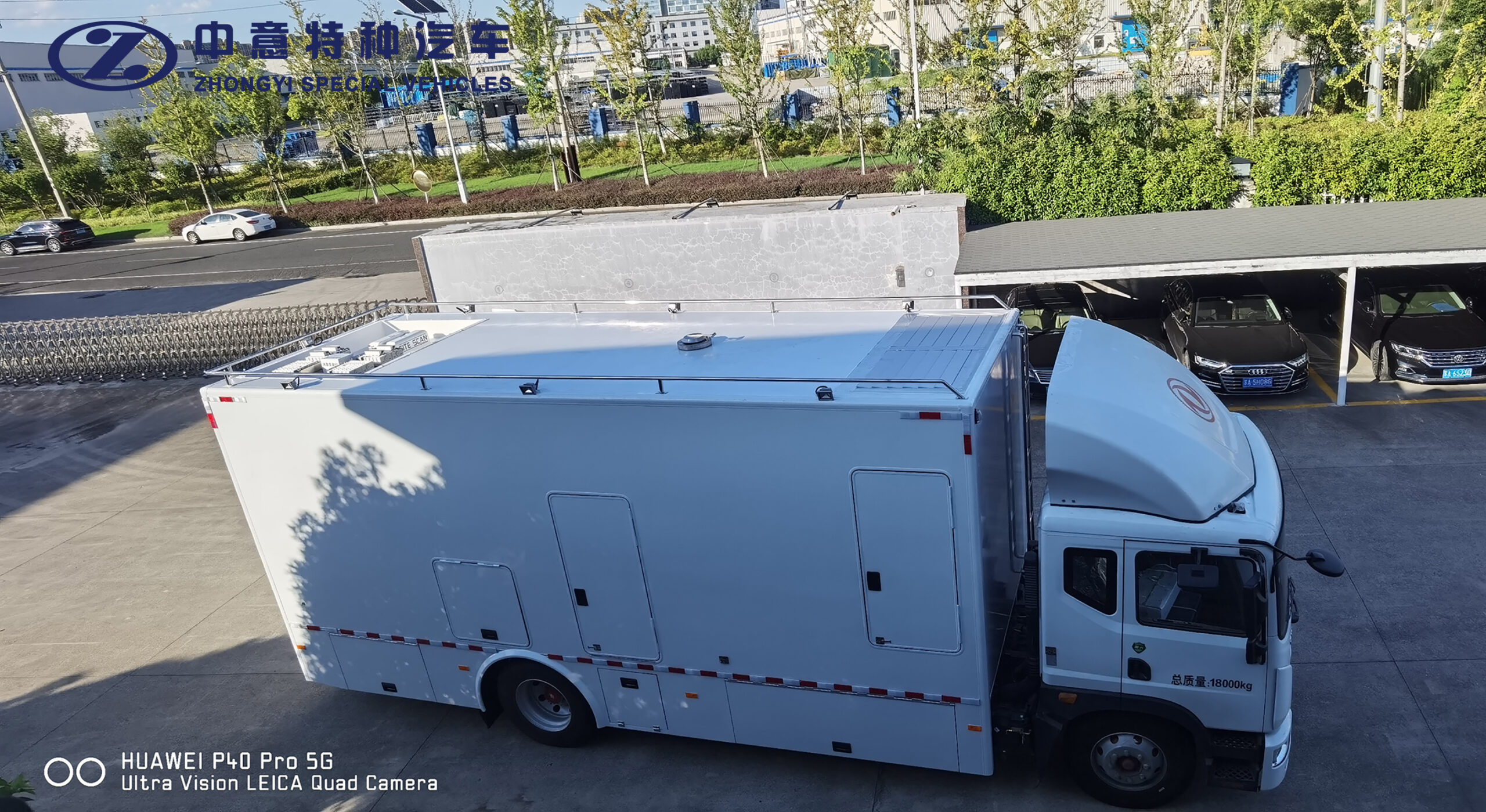

The top of the compartment is closed, can not be opened, the car is equipped with on-board generator set, optional UPS, EPS, batteries and so on. Optionally equipped with wire reel. The roof is equipped with optional protective railing, site lighting, lifting/inverted lighting equipment, roof-mounted air conditioning, deflector, optional compartments of different heights and lengths, compartments on both sides of the optional different positions and number of exhaust doors, cable doors, access doors, operating doors, air intake doors, windows; both sides of the skirt optional tool doors; rear optional double doors, single doors. Optional parking control room. Optional door hinge pattern. Both sides and rear lower part of the skirt type enclosure protection instead of side and rear protection function, side and rear protection material: Q235, using welded connections, side protection height from the ground: 380mm, rear protection from the ground: 485mm. with the chassis optional with the same series of high-roof cabs, optional tachograph, optional speed limiting device. Speed limit 89.
SZY5180XDYD6 | |
---|---|
Length (mm) | 9940/10350 |
Width (mm) | 2550 |
Height(mm) | 3500/3870/3980 |
Curb mass (kg) | 18000/17000/16000/15000 |
ABS System | Yes |
Maxium Speed (km/h) | 105/89 |
Number of Seats | 3/2 |
Front/Rear Overhang (mm) | 1260/3080, 1260/3490 |
Approach angle (°) | 19 |
Departure angle (°) | 8 |
Chassis ID | 3158280 |
Chassis Model | EQ1185LJ9CDE |
Chassis Category | Category II |
Chassis Name | Truck Chassis |
