The Changan Star 9EV is an all-electric micro-model manufactured by Changan Automobile, designed to meet the needs of urban logistics and distribution. The vehicle is popular for its zero-emission, small turning radius and high agility, and is especially suitable for traveling on busy city streets and handling the “last-mile” logistics and distribution tasks.
Exterior
The overall dimensions of the Changan Star 9EV are 4,430mm long, 1,655mm wide and 1,950mm high, which emphasizes its agility compared to mainstream micro-vehicles. Exterior design of the vehicle is stylish and clean, adopting a multi-span plus chrome center grille with a trapezoidal air intake grille, giving the vehicle a strong sense of hierarchy. The headlights on both sides have a one-piece design with the Changan logo logo inside, showing the manufacturer’s attention to detail.
Interior

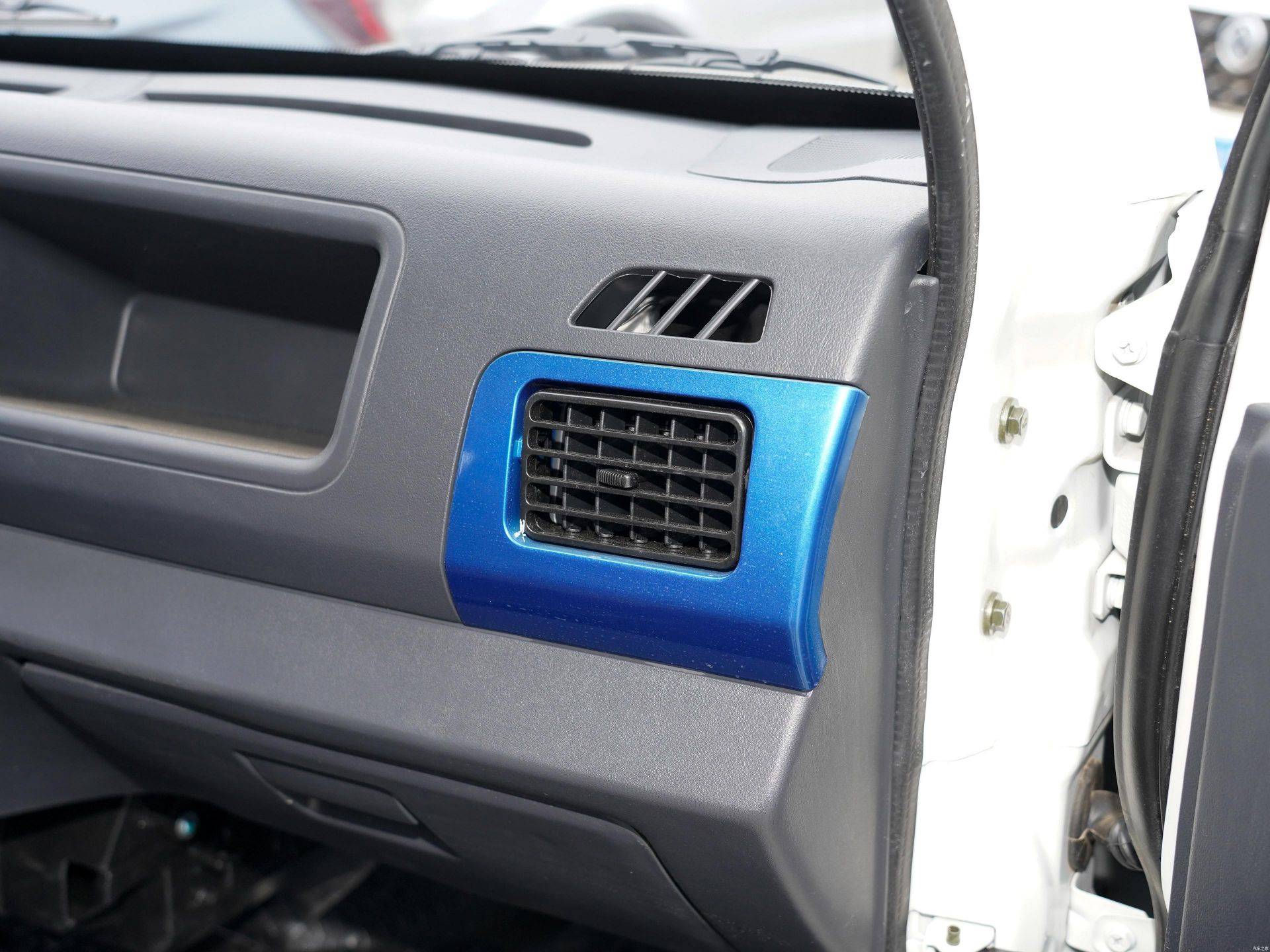

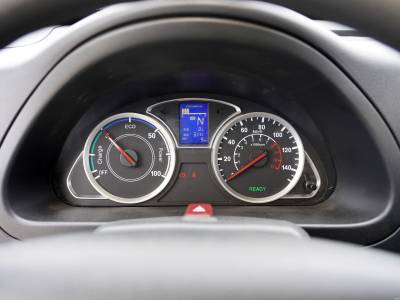

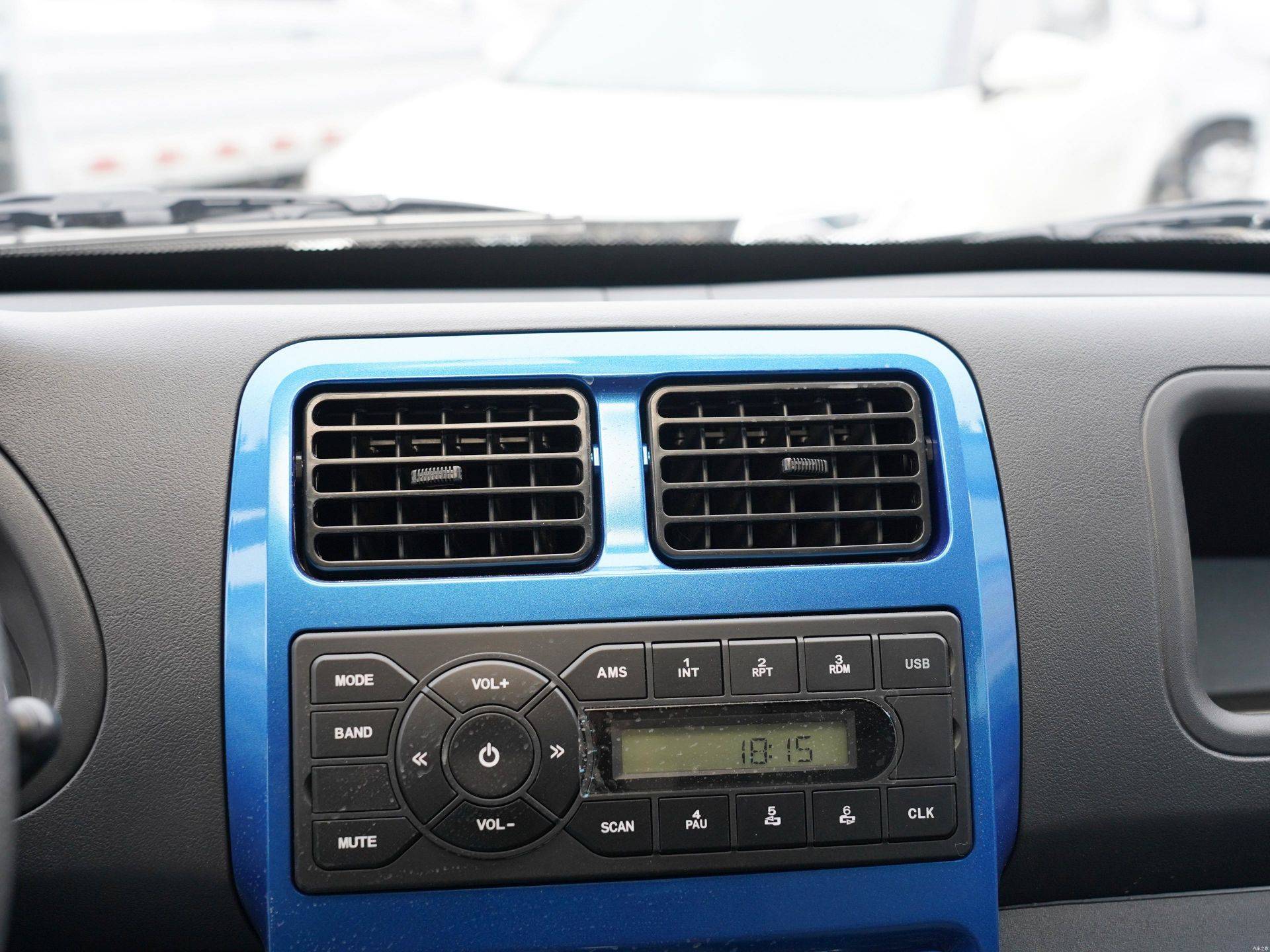

Interior, the Changan Star 9EV features a two-tone color scheme that makes the center console look plain and elegant. Equipped with a radio with large buttons and knob-type air-conditioning controls, it is easy for the driver to make adjustments while driving. The instrument panel adopts an LCD display, which makes it easy to grasp information such as battery level, mileage and voltage and current even when driving at night in poor light. The interior is also designed with several storage compartments and two larger cup holders, making it easy for the driver to store logistics documents, cell phones and other belongings.
Performance
In terms of performance, the Changan Star 9EV is equipped with Jiangxi Anchor’s 35.9kWh lithium iron phosphate battery, paired with a permanent magnet synchronous motor with a peak power of 55kW. The official NEDC range is up to 245km, and the vehicle’s load test shows that even when fully loaded, the Changan Star 9EV can demonstrate good range and driving experience.
Configurations
The Changan Star 9EV is available in a variety of configuration options, including different battery capacities and motor powers, as well as 2-, 5- and 7-seat seating configurations. The total power of the models ranges from 55kW to 70kW, and the range, depending on configuration, is 245km to 260km in NEDC and 220km in CLTC. All models are available in 2WD configuration.
| Pure electric bus 7-seater 60kW | Pure electric van 2-seater 55kW | Pure Electric Van 2-seater 60kW | Pure electric van transportation vehicle 5-seater 60kW | Pure electric van 2-seater 70kW | Pure electric van transportation vehicle 5-seater 70kW | |
|---|---|---|---|---|---|---|
| Basic vehicle parameters | ||||||
| Level: | microcar | microcar | microcar | microcar | microcar | microcar |
| Body form: | 5-door 7-seater bus | 5-door 2-seater bus | 5-door 2-seater bus | 5-door, 5-seater bus | 5-door 2-seater bus | 5-door, 5-seater bus |
| L x W x H (mm): | 4430x1655x1950 | 4430x1655x1950 | 4430x1655x1950 | 4430x1655x1950 | 4430x1655x1950 | 4430x1655x1950 |
| Wheelbase (mm): | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 |
| Power Type: | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric |
| Maximum power of the whole vehicle (kW): | 60 | 55 | 60 | 60 | 70 | 70 |
| Maximum torque of the whole vehicle (N-m): | 220 | 220 | 220 | 220 | 230 | 230 |
| MITI pure electric range (km): | 260 | 245 | 260 | 260 | 260 | 260 |
| body of automobile | ||||||
| Overall mass (kg): | 1470 | 1370 | 1380 | 1420 | 1380 | 1420 |
| electric motor | ||||||
| MITI pure electric range (km): | 260 | 245 | 260 | 260 | 260 | 260 |
| Motor Type: | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous | Permanent magnet/synchronous |
| Total motor power (kW): | 60 | 55 | 60 | 60 | 70 | 70 |
| Total motor torque (N-m): | 220 | 220 | 220 | 220 | 230 | 230 |
| Number of motors: | 1 | 1 | 1 | 1 | 1 | 1 |
| Motor Layout: | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) | place after (e.g. in grammar) |
| Rear motor max power (kW): | 60 | 55 | 60 | 60 | 70 | 70 |
| Maximum torque of rear motor (N-m): | 220 | 220 | 220 | 220 | 230 | 230 |
| Battery type: | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery capacity (kWh): | 38.64 | 35.9 | 38.64 | 38.64 | 38.64 | 38.64 |
| Battery Pack Warranty: | 5 years/200,000 kilometers | 5 years/200,000 kilometers | 5 years/200,000 kilometers | 5 years/200,000 kilometers | 5 years/200,000 kilometers | 5 years/200,000 kilometers |
| transmission | ||||||
| Number of gears: | 1 | 1 | 1 | 1 | 1 | 1 |
| Transmission Type: | Electric Vehicle Single Speed | Electric Vehicle Single Speed | Electric Vehicle Single Speed | Electric Vehicle Single Speed | Electric Vehicle Single Speed | Electric Vehicle Single Speed |
| Chassis steering | ||||||
| Drive method: | rear mounted, rear drive | rear mounted, rear drive | rear mounted, rear drive | rear mounted, rear drive | rear mounted, rear drive | rear mounted, rear drive |
| Body Structure: | Load-bearing body | Load-bearing body | Load-bearing body | Load-bearing body | Load-bearing body | Load-bearing body |
| Steering Assist: | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist |
| Front suspension type: | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type: | Steel plate spring structure | Steel plate spring structure | Steel Plate Spring Construction | Steel Plate Spring Construction | Steel Plate Spring Construction | Steel plate spring structure |
| Wheel brakes | ||||||
| Front brake type: | disk | disk | disk | disk | disk | disk |
| Rear brake type: | drum | drum | drum | drum | drum | drum |
| Parking brake type: | Hand Brake | Hand Brake | Hand Brake | Hand Brake | Hand Brake | Hand Brake |
| Front Tire Specifications: | 175 R14LT | 185 R14C | 175 R14LT | 175 R14LT | 175 R14LT | 175 R14LT |
| Rear Tire Specifications: | 175 R14LT | 185 R14C | 175 R14LT | 175 R14LT | 175 R14LT | 175 R14LT |
| Wheel material: | steel (bar, screw, product etc) | steel (bar, screw, product etc) | steel (bar, screw, product etc) | steel (bar, screw, product etc) | steel (bar, screw, product etc) | steel (bar, screw, product etc) |
| safety equipment | ||||||
| Seatbelt not fastened tip: | ● | ● | ● | ● | ● | ● |
| Tire pressure monitoring device: | Tire Pressure Display | Tire Pressure Display | Tire Pressure Display | Tire Pressure Display | Tire Pressure Display | Tire Pressure Display |
| Automatic anti-lock (ABS, etc.): | ● | ● | ● | ● | ● | ● |
| Brake force distribution | ● | ● | ● | ● | ● | ● |
| (EBD/CBC, etc.): | ||||||
| Center lock in the car: | ● | ● | ● | ● | ● | ● |
| Remote key: | ● | ● | ● | ● | ● | ● |
| Body Features/Configurations | ||||||
| Side sliding door form: | ● Manual | ● Manual | ● Manual | ● Manual | ● Manual | ● Manual |
| Interior Features/Configurations | ||||||
| Steering wheel material: | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics |
| Front/rear back-up radar: | Front -/back ● | - | Front -/back ● | Front -/back ● | Front -/back ● | Front -/back ● |
| The trip computer display: | ● | - | - | - | - | - |
| Seat Configuration | ||||||
| Seat Material: | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics | :: Fabrics |
| Main driver's seat adjustment direction: | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| Passenger seat adjustment direction: | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment | ●Forward and backward adjustment |
| Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | Backrest adjustment | |
| The way the rear seats are lowered: | Only the whole thing can be put down | - | - | Only the whole thing can be put down | - | Only the whole thing can be put down |
| Multimedia Configuration | ||||||
| Bluetooth/car phone: | ● | - | - | - | - | - |
| External audio interface: | ●USB | - | - | - | - | - |
| Number of speaker horns (pcs): | ●2 speakers | ●2 speakers | ●2 speakers | ●2 speakers | ●2 speakers | ●2 speakers |
| Lighting Configuration | ||||||
| Low beam light source: | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| High beam light source: | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| Height adjustable headlights: | ● | - | - | - | - | - |
| Windows and mirrors | ||||||
| Front/rear power windows: | Front ● / Back - | Front ● / Back - | Front ● / Back - | Front ● / Back - | Front ● / Back - | Front ● / Back - |
| Air conditioners/refrigerators | ||||||
| Air conditioning temperature control method: | ●Manual air conditioning | ●Manual air conditioning | ●Manual air conditioning | ●Manual air conditioning | ●Manual air conditioning | ●Manual air conditioning |
