With its compact dimensions and excellent city driving performance, the Dongfeng Nano BOX is an ideal choice for urban commuting. The vehicle’s length, width and height are 3732mm, 1579mm and 1515mm respectively, with a wheelbase of 2423mm, making it the best in its class. Not only does it offer a spacious interior, it also boasts variable luggage space ranging from 300 to 1107 liters, catering to both daily use and small trips.
Exterior

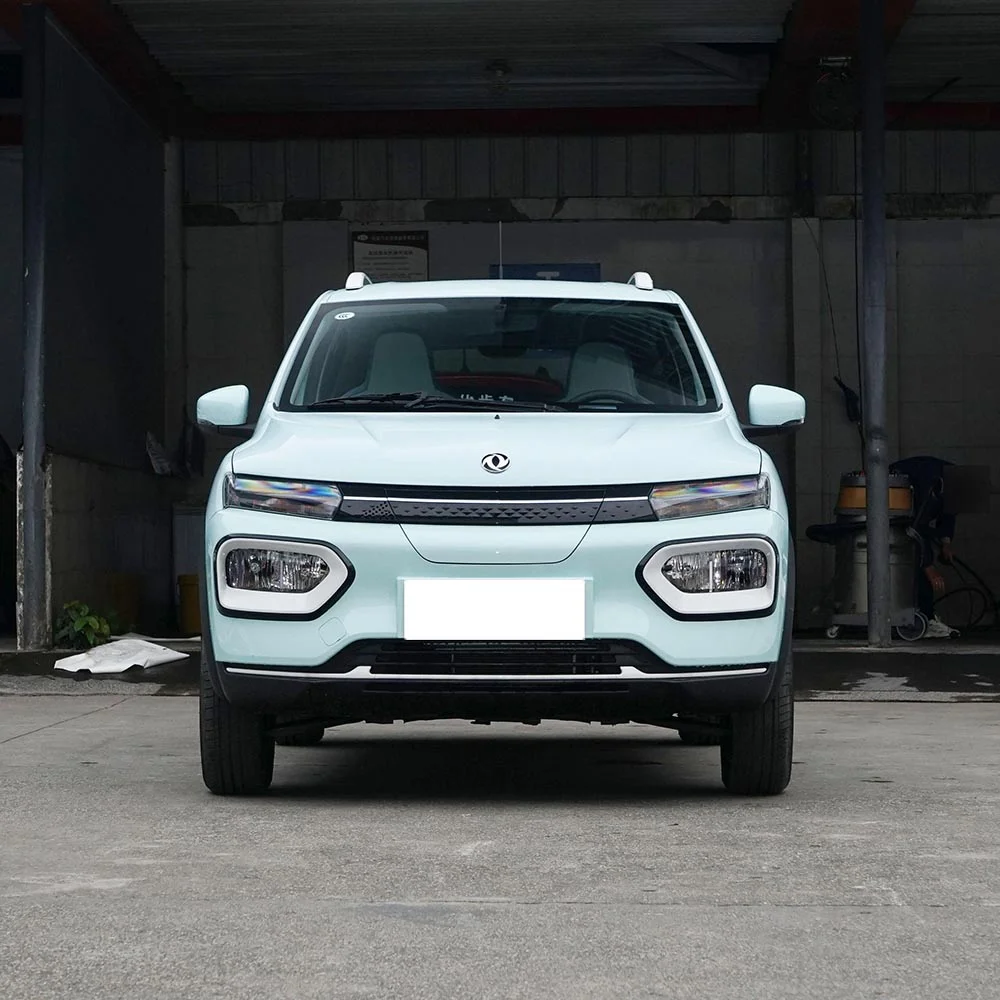

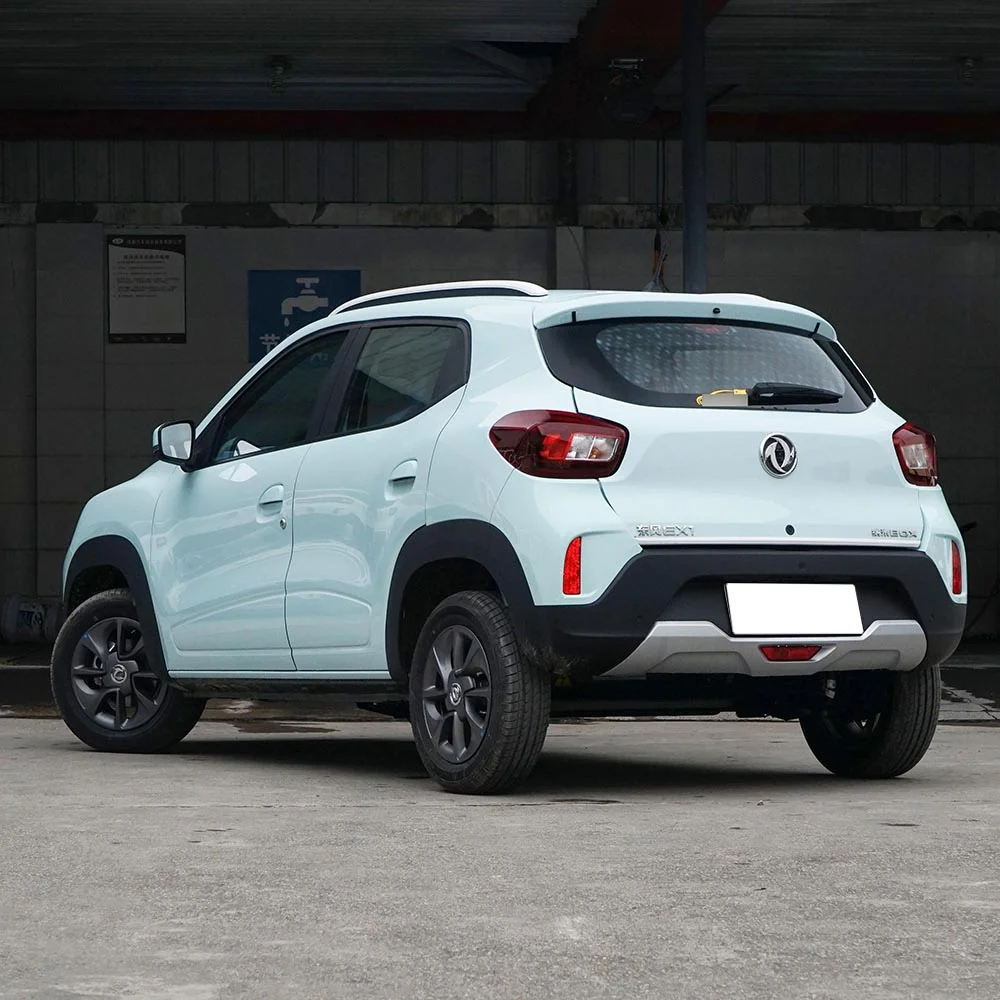

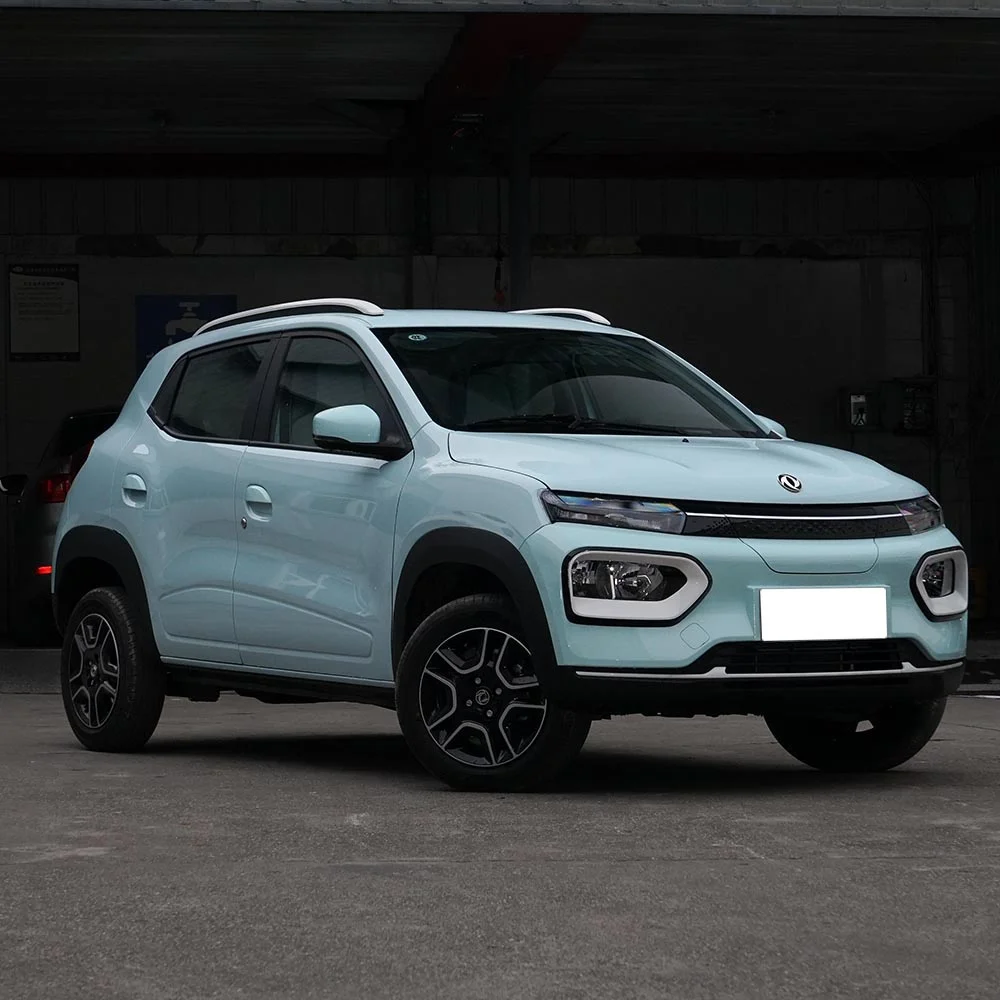

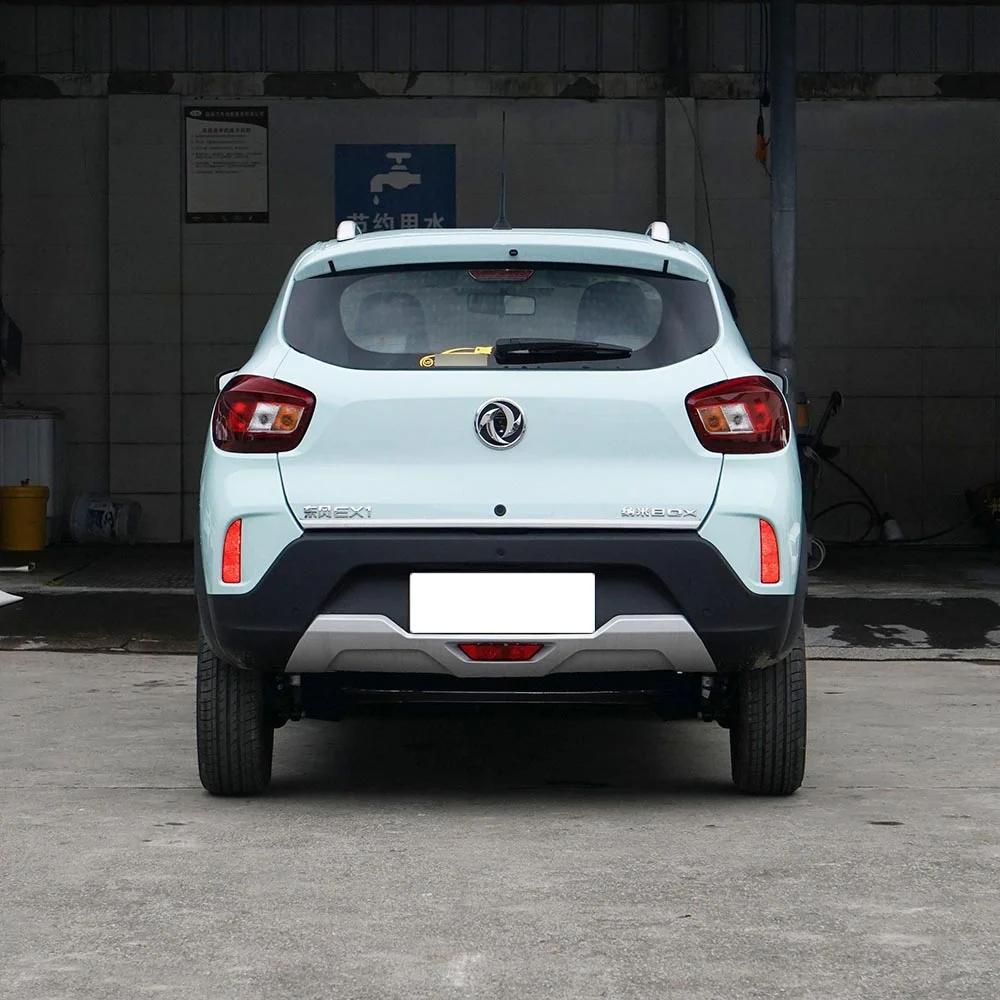

The Exterior of the Dongfeng Nano BOX is full of style and vigor. The body lines are smooth, and the front face adopts a split headlight group design with a penetrating grille that increases the visual width of the body. The square shield headlight group is supplemented by ring-shaped trim, making the whole car look more youthful and dynamic. In addition, the roof is equipped with a color-coded luggage rack, which not only enhances practicality, but also adds a unique personality to the vehicle.
Interior
In terms of Interior, the Dongfeng Nano BOX adopts a two-color splicing design, offering the options of cyan body with light-colored interior as well as white and black body with dark-colored interior, which meets the personalized needs of different users. The interior is equipped with a 7-inch full LCD instrument panel and a 10-inch hovering high-definition dazzle color center control screen, which is full of technology and ensures easy operation at the same time.
Performance
In terms of performance, the Dongfeng Nano BOX is equipped with an electric motor with a maximum power of 33kW and a maximum torque of 125N-m, providing good power output. The vehicle supports fast charging and slow charging functions. 30 minutes of fast charging can complete 30% to 80% recharging, and 4 hours of slow charging can fully charge the vehicle, with a CLTC range of 331km, which is fully capable of meeting the needs of daily urban commuting and short-distance traveling.
Configuration
Dongfeng Nano BOX also excels in terms of configuration. The whole system is equipped with main and passenger airbags, child seat anchors, child door locks, ABS system and EBD brake force distribution system as standard to ensure driving safety. Meanwhile, the vehicle also provides smartphone APP remote control functions, including remote unlocking of doors, remote control of air conditioning, etc., which brings users a more convenient and intelligent driving experience.
| 2023 Nano BOX Champion Model Lightwind 201km Standard | 2023 Nano BOX Champion Model Lightwind 201km Advance | 2023 Nano BOX Champion Chase 331km Standard | 2023 Nano BOX Champion Chaser 351km Standard | 2023 Nano BOX Champion Chaser 331KM Advanced | 2023 Nano BOX Champion Chaser 351KM Advanced | |
|---|---|---|---|---|---|---|
| Basic Information | ||||||
| Availability | 2023.09 | 2023.09 | 2023.09 | 2023.09 | 2023.09 | 2023.09 |
| vehicle class | compact SUV | compact SUV | compact SUV | compact SUV | compact SUV | compact SUV |
| Length*Width*Height(mm) | 3732*1579*1515 | 3732*1579*1515 | 3732*1579*1515 | 3732*1579*1515 | 3732*1579*1515 | 3732*1579*1515 |
| Type of energy | all-electric | all-electric | all-electric | all-electric | all-electric | all-electric |
| CLTC pure electric range (km) | 201 | 201 | 331 | 351 | 331 | 351 |
| Total motor power (kW) | 33 | 33 | 33 | 33 | 33 | 33 |
| Total motor torque (N-m) | 125 | 125 | 125 | 125 | 125 | 125 |
| Maximum speed (km/h) | 100 | 100 | 100 | 100 | 100 | 100 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery capacity (kWh) | 15.974 | 15.974 | 27.17 | 28.9 | 27.17 | 28.9 |
| Fast charging time (h) | 0.533 | 0.533 | 0.5 | 0.5 | 0.5 | 0.5 |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| Warranty Policy | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers | Three years or 60,000 kilometers |
| body of automobile | ||||||
| Length (mm) | 3732 | 3732 | 3732 | 3732 | 3732 | 3732 |
| Width (mm) | 1579 | 1579 | 1579 | 1579 | 1579 | 1579 |
| Height (mm) | 1515 | 1515 | 1515 | 1515 | 1515 | 1515 |
| Wheelbase (mm) | 2423 | 2423 | 2423 | 2423 | 2423 | 2423 |
| Front wheelbase(mm) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 |
| Rear wheelbase(mm) | 1365 | 1365 | 1365 | 1365 | 1365 | 1365 |
| Weight (kg) | 872 | 872 | 921 | 921 | 921 | 921 |
| Luggage compartment volume (L) | 300-1107 | 300-1107 | 300-1107 | 300-1107 | 300-1107 | 300-1107 |
| Number of doors (pcs) | 5 | 5 | 5 | 5 | 5 | 5 |
| Number of seats (pcs) | 4 | 4 | 4 | 4 | 4 | 4 |
| electric motor | ||||||
| Total motor power (kW) | 33 | 33 | 33 | 33 | 33 | 33 |
| Total motor torque (N-m) | 125 | 125 | 125 | 125 | 125 | 125 |
| Maximum power of front electric motor (kW) | 33 | 33 | 33 | 33 | 33 | 33 |
| Maximum torque of front motor (N-m) | 125 | 125 | 125 | 125 | 125 | 125 |
| CLTC pure electric range (km) | 201 | 201 | 331 | 351 | 331 | 351 |
| Battery capacity (kWh) | 15.974 | 15.974 | 27.17 | 28.9 | 27.17 | 28.9 |
| Slow charging time (h) | 3 | 3 | 4 | 4 | 4 | 4 |
| Fast charging time (h) | 0.533 | 0.533 | 0.5 | 0.5 | 0.5 | 0.5 |
| Motor structure | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization | synchronization | synchronization | synchronization | synchronization |
| Number of drive motors | single motor | single motor | single motor | single motor | single motor | single motor |
| Motor Layout | preamplifier | preamplifier | preamplifier | preamplifier | preamplifier | preamplifier |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery | Ternary lithium battery |
| Battery cooling method | air cooling | air cooling | air cooling | air cooling | air cooling | air cooling |
| Battery Energy Density(Wh/kg) | 110 | 110 | 151 | 148 | 151 | 148 |
| fast charging function | be in favor of | be in favor of | be in favor of | be in favor of | be in favor of | be in favor of |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 | 30-80 |
| Battery Pack Warranty | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers | Eight years or 120,000 kilometers |
| Battery preheating | ● | ● | ● | ● | ● | ● |
| Chassis/steering | ||||||
| Driving form | front drive | front drive | front drive | front drive | front drive | front drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension | Torsion beam non-independent suspension |
| Steering assist form | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist | electric power assist |
| Wheels/Brakes | ||||||
| Front/Rear Brake Type | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum | Ventilated Disc / Drum |
| Parking brake type | handbrake | handbrake | handbrake | handbrake | handbrake | handbrake |
| Front Tire Specification | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 |
| Rear Tire Specification | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 | 165/70 R14 |
| Wheel Material | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) | steel (chemistry) |
| Active/passive safety features | ||||||
| ABS anti-lock | ● | ● | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC etc.) | ● | ● | ● | ● | ● | ● |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag | :: Driver's airbag |
| ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | ●Passenger airbag | |
| Tire Pressure Detection Device | ● Alarms | ● Alarms | ● Alarms | ● Alarms | ● Alarms | ● Alarms |
| Seat Belt Reminder | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver | ●Principal Driver |
| ISOFIX child restraints | ● | ● | ● | ● | ● | ● |
| Auxiliary/Manipulation Configurations | ||||||
| parking radar | ● Post | ● Post | ● Post | ● Post | ● Post | ● Post |
| Driver Assistance Video | - | ● Backup camera | - | - | ● Backup camera | ● Backup camera |
| Driving Mode Switching | - | :: Economy | - | - | :: Economy | :: Economy |
| External/anti-theft configurations | ||||||
| roof rack | ● | ● | ● | ● | ● | ● |
| Key Type | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key | ●Remote key |
| ● Mechanical key | ● Mechanical key | ● Mechanical key | ● Mechanical key | ● Mechanical key | ● Mechanical key | |
| Remote start function | ● | ● | ● | ● | ● | ● |
| Central locking in the car | ● | ● | ● | ● | ● | ● |
| Internal Configuration | ||||||
| Steering wheel material | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics | :: Plastics |
| Sun visor vanity mirror | ● | ● | ● | ● | ● | ● |
| Liquid crystal instrument size | 7 inches. | 7 inches. | 7 inches. | 7 inches. | 7 inches. | 7 inches. |
| seating | ||||||
| Seat Material | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather | :: Imitation leather |
| ○Other Materials | ○Other Materials | ○Other Materials | ○Other Materials | ○Other Materials | ○Other Materials | |
| Integral adjustment of the main driver's seat | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Passenger seat overall adjustment | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after | ●Before and after |
| ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | ●Backrests | |
| Second row seat adjustment | ● Integral lowering | ● Integral lowering | ● Integral lowering | ● Integral lowering | ● Integral lowering | ● Integral lowering |
| multimedia | ||||||
| Large color screen in the center console | - | ● | - | - | ● | ● |
| Mobile APP Remote Function | ●Door control | ●Door control | ●Door control | ●Door control | ●Door control | ●Door control |
| ● Vehicle start-up | ● Charge management | ● Charge management | ● Charge management | ● Charge management | ● Charge management | |
| ● Charge management | ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | ● Air conditioning control | |
| ● Air conditioning control | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | :: Vehicle condition check/diagnosis | |
| :: Vehicle condition check/diagnosis | :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | :: Vehicle location/search | |
| :: Vehicle location/search | ||||||
| Bluetooth/Car Phone | - | ● | - | - | ● | ● |
| Cell phone connectivity/mapping | - | ●Factory connectivity/mapping | - | - | ● Factory Connect/Mapping | ● Factory Connect/Mapping |
| Number of audio speakers | - | 2 | - | - | 2 | 2 |
| Voice Recognition Control System | - | :: Multimedia systems | - | - | :: Multimedia systems | :: Multimedia systems |
| :: Telephone | :: Telephone | :: Telephone | ||||
| Telematics | - | ● | - | - | ● | ● |
| Interface Support | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port | ● USB port |
| (stage) lighting | ||||||
| low beam (headlights) | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| high beam (headlights) | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen | ● Halogen |
| LED daytime running lights | ● | ● | ● | ● | ● | ● |
| Adjustable headlights | ● | ● | ● | ● | ● | ● |
| Glass/Mirror | ||||||
| power window | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward | ●Forward |
| ● Post | ● Post | ● Post | ● Post | ● Post | ● Post | |
| outside rearview mirror | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment | ●Motorized adjustment |
| rearview mirror | - | ●Manual anti-glare | - | - | ●Manual anti-glare | ●Manual anti-glare |
| Air conditioners/refrigerators | ||||||
| Air conditioning control method | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control | ●Manual control |
