Exterior Design
The Wuling Zhiguang EV has a โsquare boxโ shape. Its wheel size is only 13 inches, with a total mass of 892kg and a total mass of 1220kg.

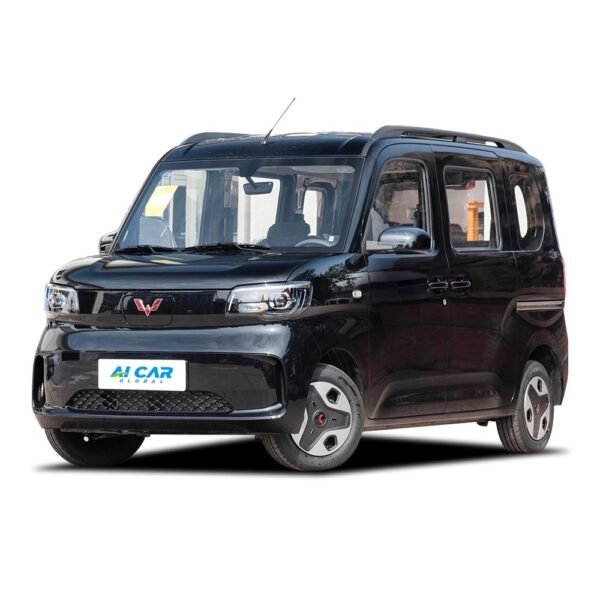

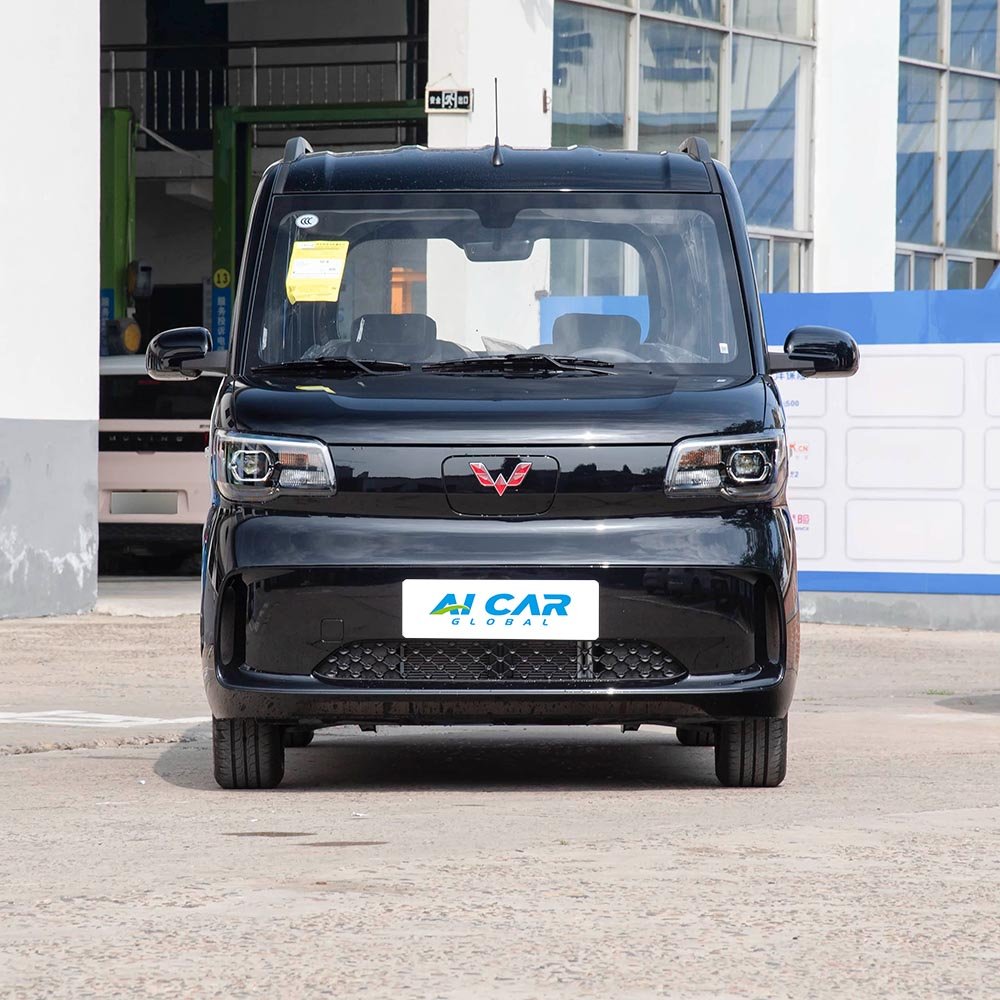

The front part of the Wuling Zhiguang EV adopts a more square shape, with a charging port in the center of the closed front grille, and LED daytime running lights inside the headlight clusters on both sides. The front enclosure adopts a through-type heat dissipation opening design, and there is also a C-shaped guide groove on both sides.

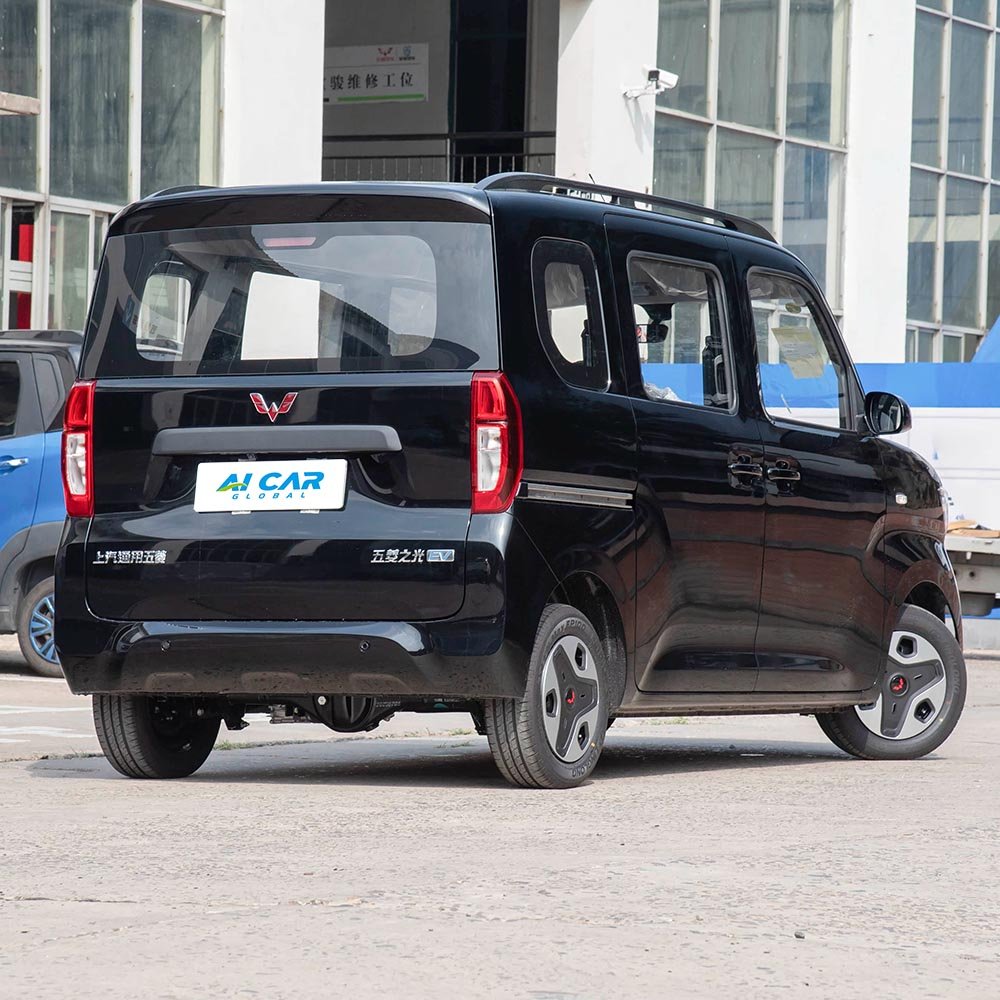

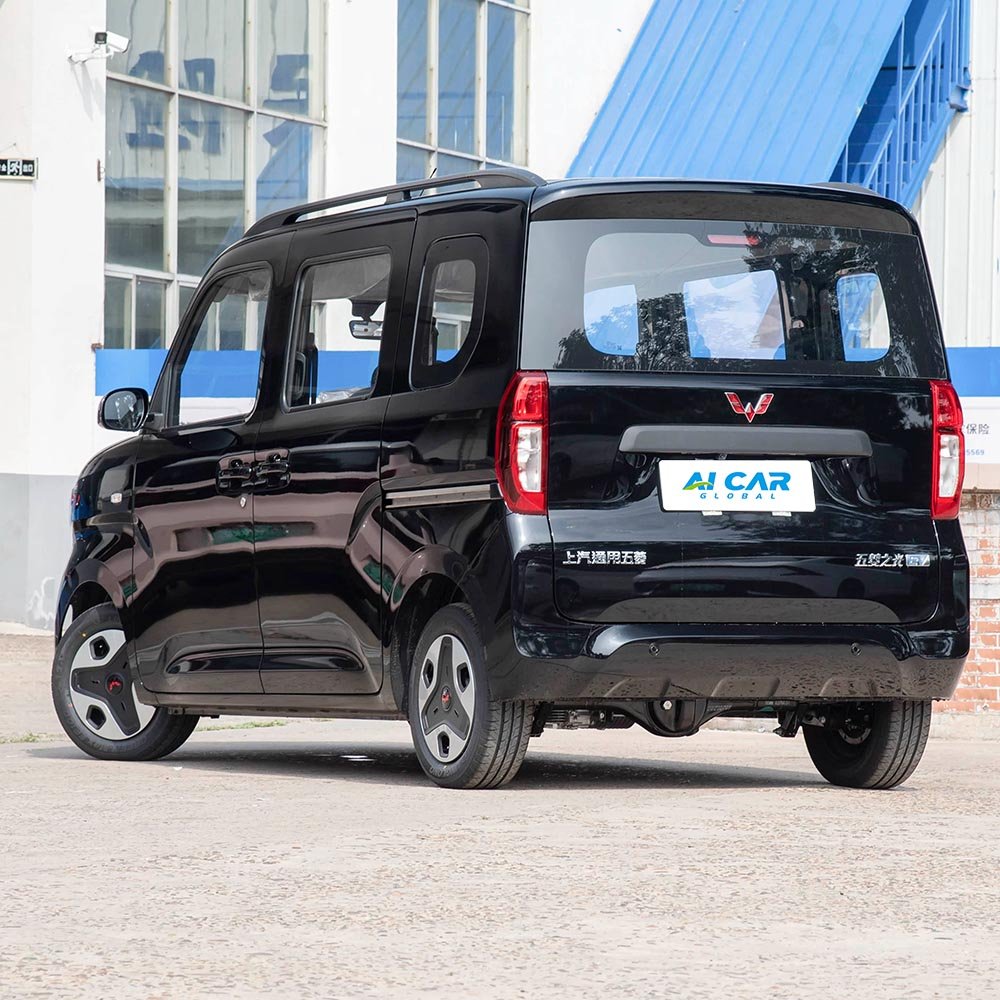

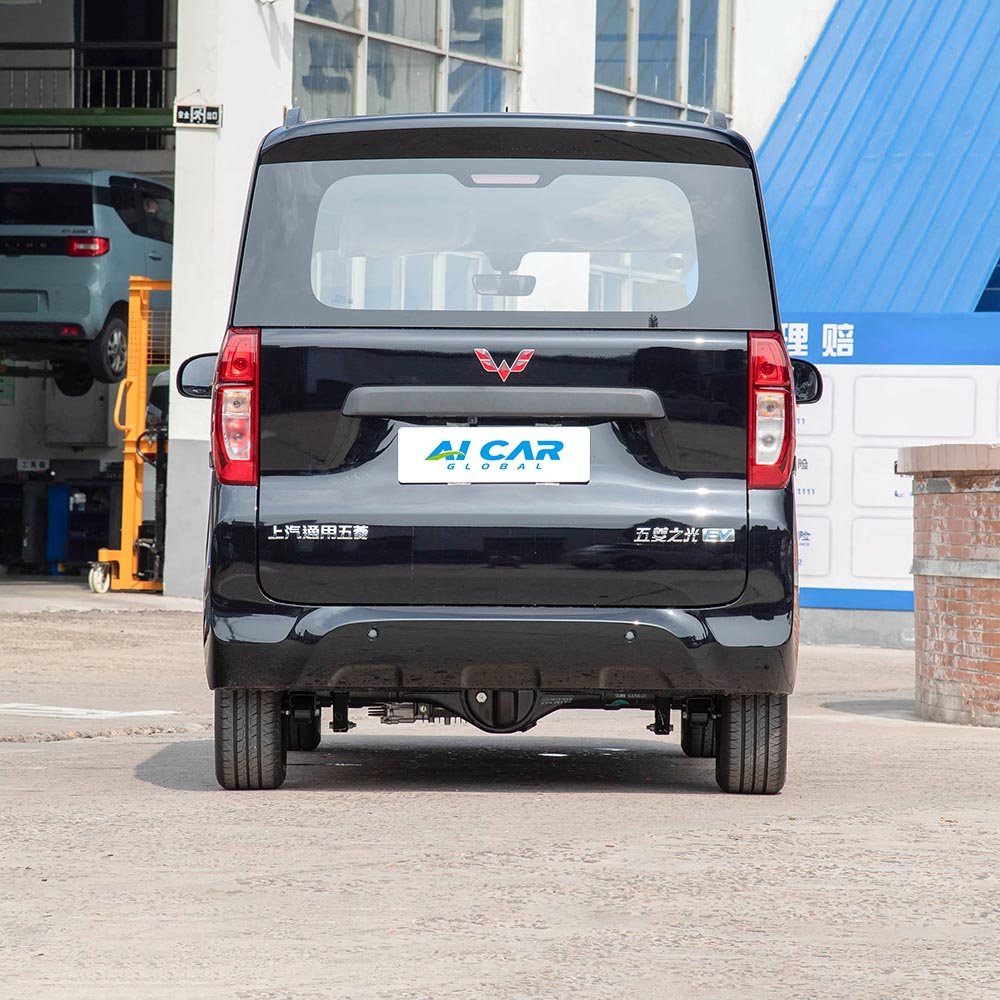

The side of the Wuling Zhiguang EV has a square box shape in the โK-Carโ style, which ensures a high occupancy rate of the interior space. The new car still adopts the classic side-sliding door design, with an opening width of 595mm and a luggage rack above the roof. Tail shape is also very square, tailgate opening angle of nearly 90 ยฐ, threshold height of only 569mm, loading and unloading of goods more labor-saving. The length, width and height are 3685/1530/1765mm, and the wheelbase is 2600mm.
Interior design

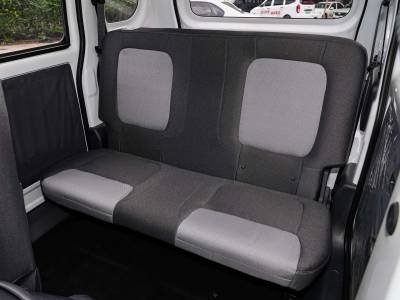

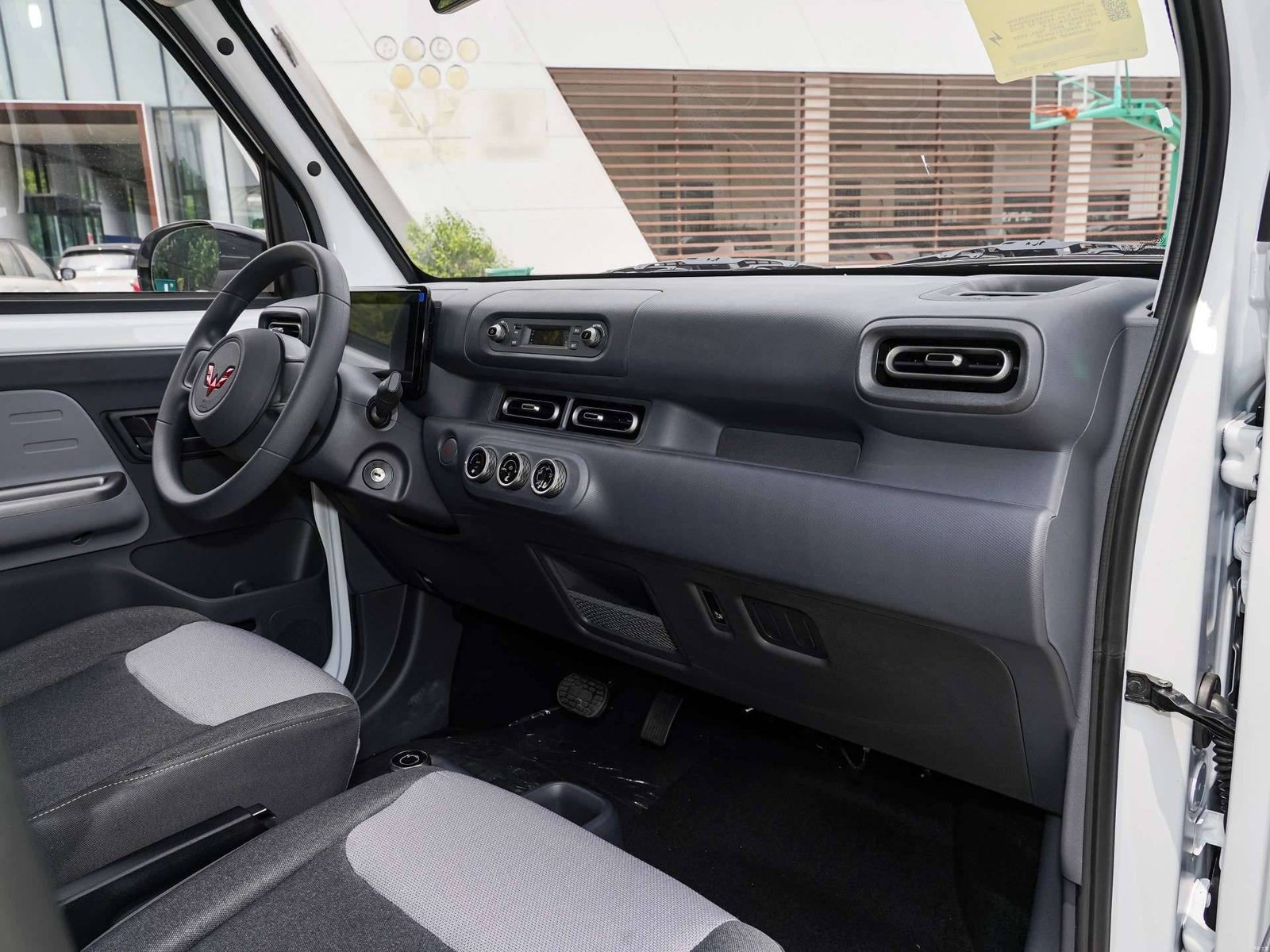

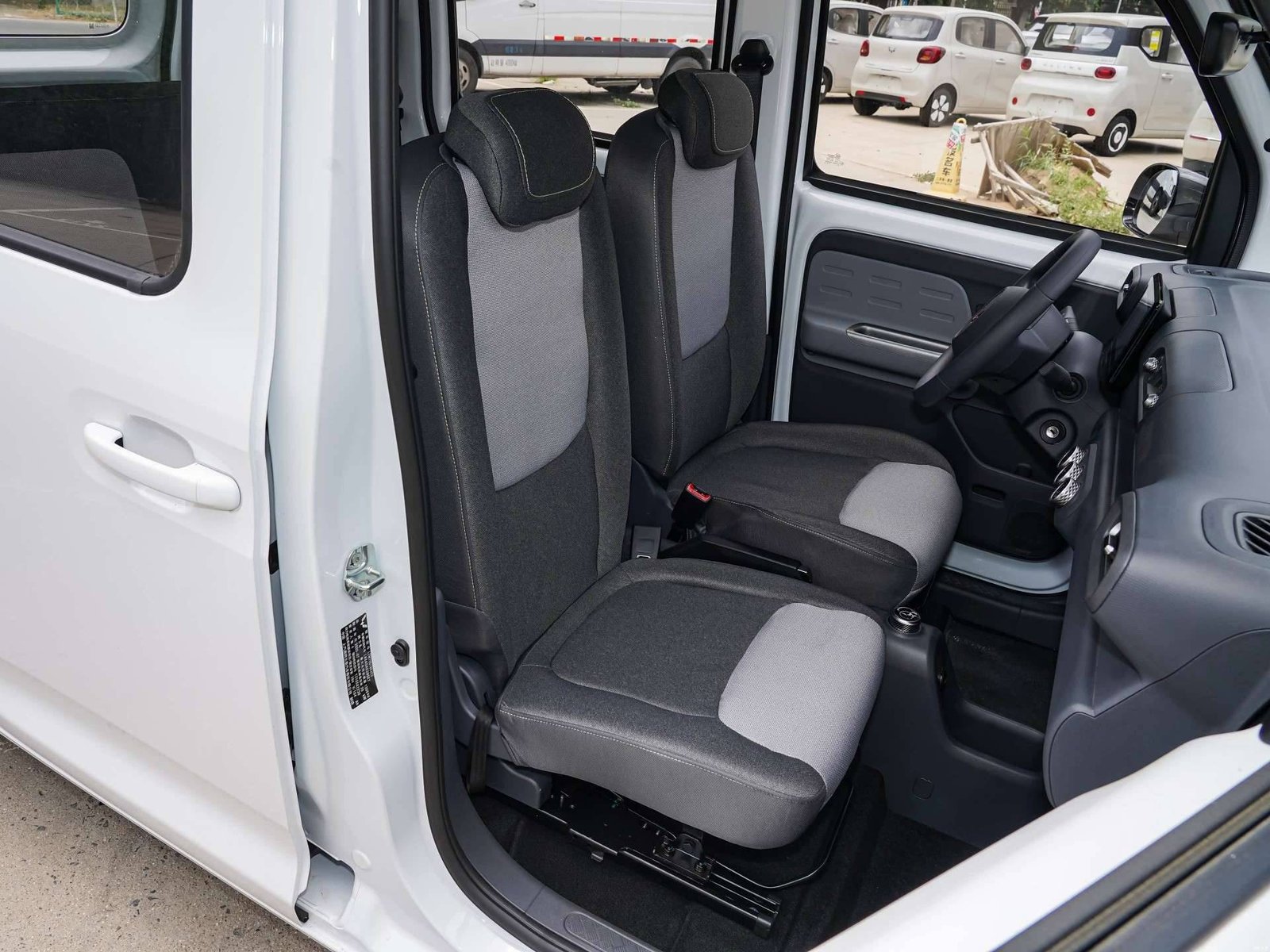

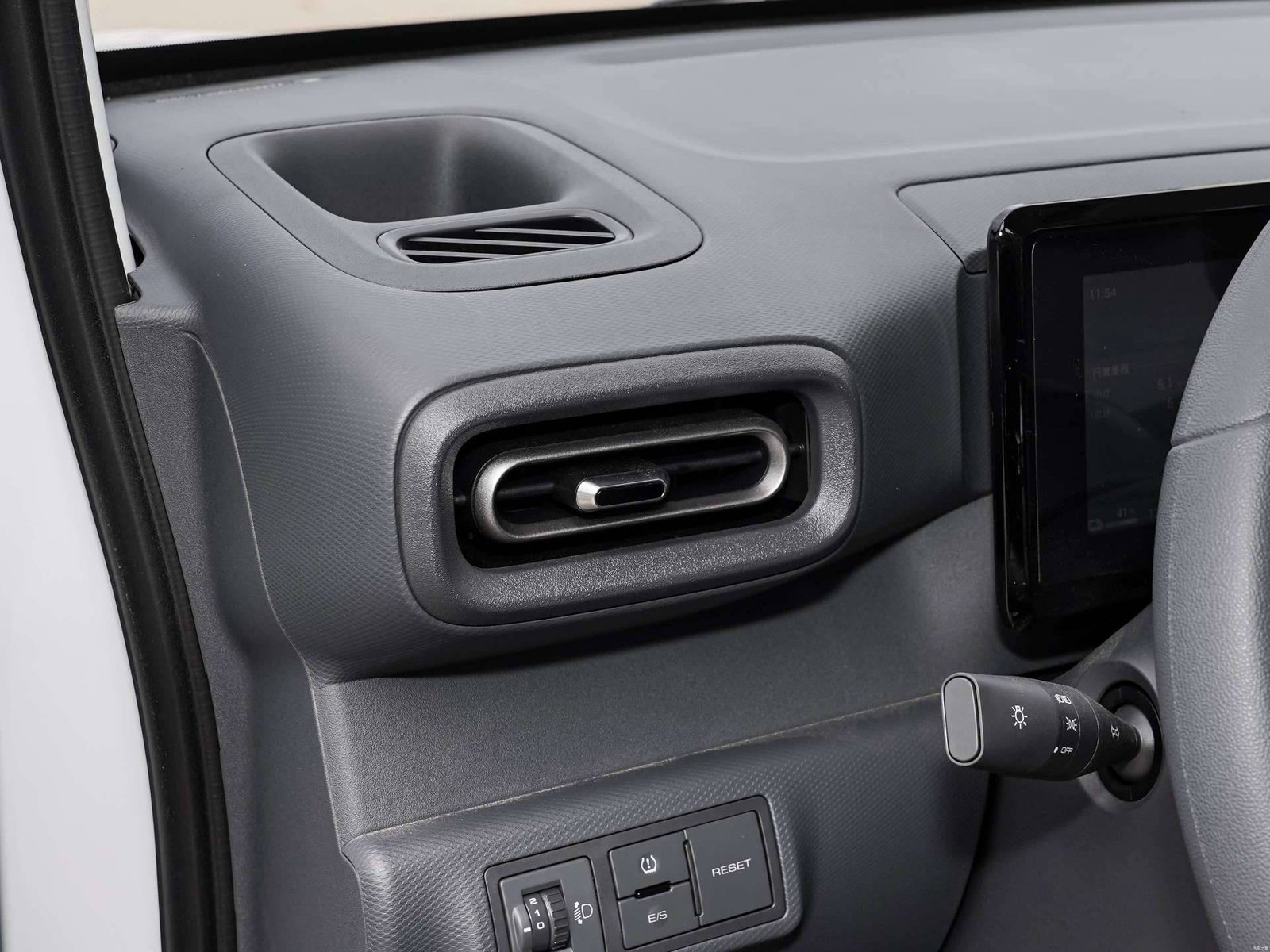

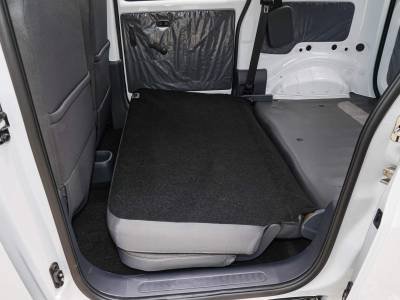

The center console of Wuling Zhiguang EV is equipped with physical buttons and knobs. The two-spoke steering wheel is equipped with monochrome LCD gauges in front, the entertainment system is set above the air conditioning vents, and the new car uses a knob to shift gears. In terms of seating layout, the new car’s passenger and rear seats support a purely flat put down, the trunk initial volume of 527L, when the seats are all put down, the volume grows to 1,117L. the new car also reserved a number of mounting holes in the car to support the installation of the folding table plate, storage compartments, and the placement of shelves and other expansion accessories, providing a wealth of expansion of the storage space.
Power
The Wuling Zhiguang EV is equipped with a rear-mounted motor with a maximum power of 30kW and a 17.7kW-h lithium iron phosphate battery, with a pure electric range of 201 kilometers. The new car supports DC fast charging, which can be charged from 30% to 80% in 35 minutes, and the higher-end models also support external discharging, with a power of up to 3.3kW.The front and rear compartments are equipped with a 12V DC power port, with a maximum discharging power of up to 120W, which supports the use of small-power electrical appliances such as the on-board refrigerator and ambient lighting.
| 2025 Wuling Zhiguang EV Standard Model | 2025 Wuling Zhiguang EV Comfort Edition | 2025 Wuling Zhiguang EV 305km Progressive Edition | |
|---|---|---|---|
| Basic Information | |||
| Time to market | 2025.02 | 2025.02 | 2025.07 |
| Body level | Microvan | Microvan | Microvan |
| Length*Width*Height(mm) | 3685*1530*1750 | 3685*1530*1765 | 3685*1530*1765 |
| Energy type | Pure electric | Pure electric | Pure electric |
| CLTC pure electric range (km) | 201 | 201 | - |
| Total motor power (kW) | 30 | 30 | 30 |
| Total torque of the motor (Nยทm) | 85 | 85 | 85 |
| Maximum speed (km/h) | 100 | 100 | 100 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Fast charging time (h) | 0.58 | 0.58 | 0.58 |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 |
| body | |||
| Length (mm) | 3685 | 3685 | 3685 |
| Width (mm) | 1530 | 1530 | 1530 |
| Height(mm) | 1750 | 1765 | 1765 |
| Wheelbase (mm) | 2600 | 2600 | 2600 |
| Front wheelbase (mm) | 1290 | 1290 | 1290 |
| Rear wheelbase (mm) | 1290 | 1290 | 1290 |
| Curb mass (kg) | 892 | 892 | 1010 |
| Number of doors | 5 | 5 | 5 |
| Number of seats | 4 | 4 | 4 |
| electric motor | |||
| Total motor power (kW) | 30 | 30 | 30 |
| Total torque of the motor (Nยทm) | 85 | 85 | 85 |
| Maximum power of rear motor (kW) | 30 | 30 | 30 |
| Maximum torque of rear motor (Nยทm) | 85 | 85 | 85 |
| CLTC pure electric range (km) | 201 | 201 | - |
| Power consumption per 100 kilometers (kWh/100km) | 10.1 | 10.1 | 10.8 |
| Fast charging time (h) | 0.58 | 0.58 | 0.58 |
| Motor structure | permanent magnet | permanent magnet | permanent magnet |
| How a motor works | synchronous | synchronous | synchronous |
| Number of drive motors | Single motor | Single motor | Single motor |
| Motor layout | Post | Post | Post |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery | lithium iron phosphate battery |
| Fast charging function | support | support | support |
| Fast charging capacity (%) | 30-80 | 30-80 | 30-80 |
| Energy recovery | โ | โ | โ |
| Battery preheating | โ | โ | โ |
| Discharge to the outside | - | โ | โ |
| Chassis/Steering | |||
| Drive type | rear-wheel drive | rear-wheel drive | rear-wheel drive |
| Front suspension type | McPherson independent suspension | McPherson independent suspension | McPherson independent suspension |
| Rear suspension type | Integral bridge non-independent suspension | Integral bridge non-independent suspension | Integral bridge non-independent suspension |
| Power steering form | Electric power steering | Electric power steering | Electric power steering |
| Wheels/Brakes | |||
| Front/rear brake type | Disc/Drum | Disc/Drum | Disc/Drum |
| Front tire specifications | 165/65 R13 | 165/65 R13 | 165/65 R13 |
| Rear tire specifications | 165/65 R13 | 165/65 R13 | 165/65 R13 |
| Wheel material | steel | steel | steel |
| Active/passive safety configuration | |||
| ABS anti-lock braking system | โ | โ | โ |
| Braking force distribution (EBD/CBC, etc.) | โ | โ | โ |
| Front airbags | Driver's airbag | Driver's airbag | โDriver's airbag |
| โPassenger's airbag | |||
| Tire pressure detection device | โAlarm | โAlarm | โAlarm |
| ISOFIX child seat | โ | โ | โ |
| Auxiliary/control configuration | |||
| parking radar | After | After | After |
| Driving assistance images | - | - | Reversing image |
| Driving mode switch | โSports | โSports | โSports |
| External/anti-theft configuration | โEconomy | โEconomy | โEconomy |
| Roof rack | - | โ | โ |
| Key type | Remote control key | Remote control key | Remote control key |
| Central locking system in the car | โ | โ | โ |
| Internal Configuration | |||
| Steering wheel material | Plastic | Plastic | Plastic |
| Gear shifting | โElectronic knob shift | โElectronic knob shift | โElectronic knob shift |
| Full LCD instrument panel | - | - | โ |
| LCD instrument size | 4.2 inches | 4.2 inches | 7 inches |
| Smart Hardware | |||
| Number of ultrasonic radars | 2 | 2 | 2 |
| Seat | |||
| Seat material | Fabric | Fabric | Fabric |
| Main seat adjustment method | โFront and rear adjustment | โFront and rear adjustment | โFront and rear adjustment |
| โBackrest adjustment | โBackrest adjustment | โBackrest adjustment | |
| โHeight adjustment (2-way) | |||
| Passenger seat adjustment method | Backrest adjustment | Backrest adjustment | Backrest adjustment |
| Second row seat adjustment | โTake it down as a whole | โTake it down as a whole | โTake it down as a whole |
| Rear cup holder | โ | โ | โ |
| multimedia | |||
| Number of audio speakers | 2 | 2 | 2 |
| Interface support | USB port | USB port | USB port |
| Number of USB/Type-C ports | 2 in the front row | 2 in the front row | 2 in the front row |
| Power support | - | 12V power supply in luggage compartment | 12V power supply in luggage compartment |
| light | |||
| low beam | Halogen | Halogen | LED |
| High beam | Halogen | Halogen | LED |
| Adjustable headlights | โ | โ | โ |
| Glass/rearview mirror | |||
| Power windows | โBefore | โBefore | โBefore |
| Air conditioning/refrigerator | |||
| Air conditioning control method | Manual control | Manual control | Manual control |
