Exterior Design

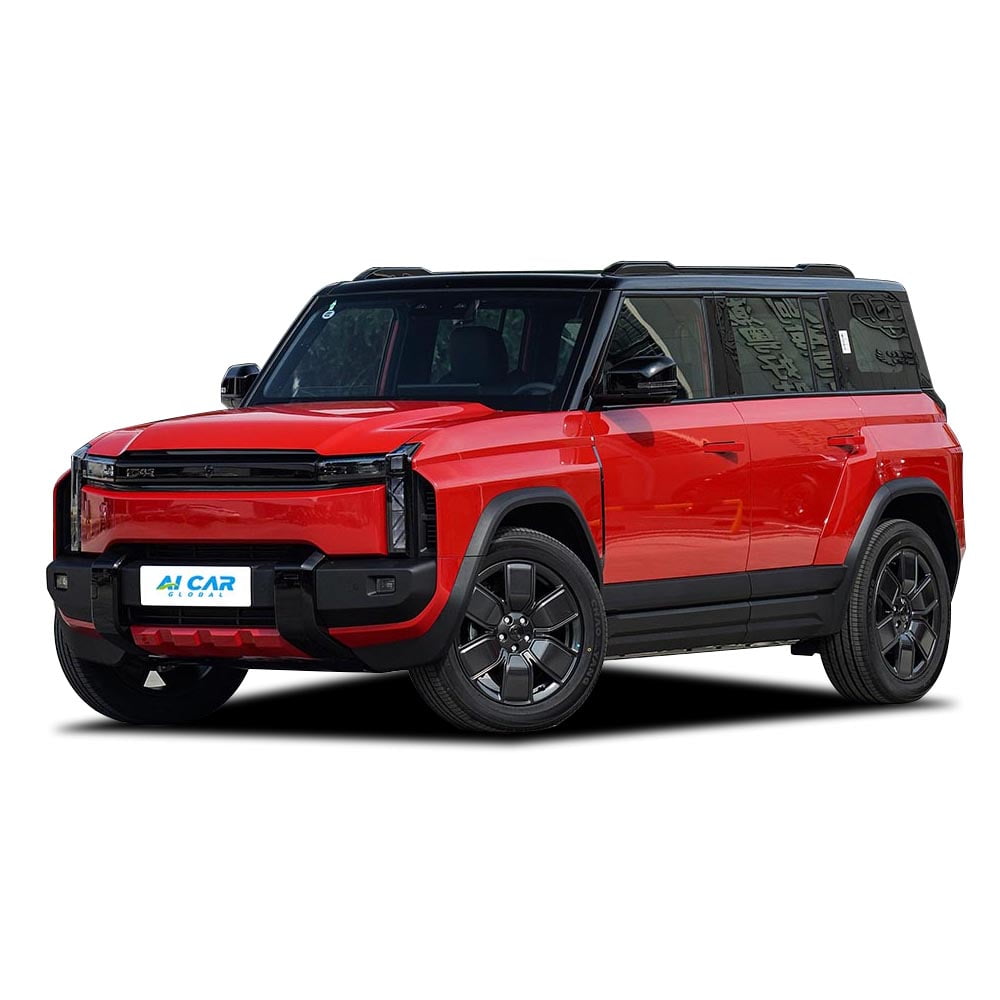

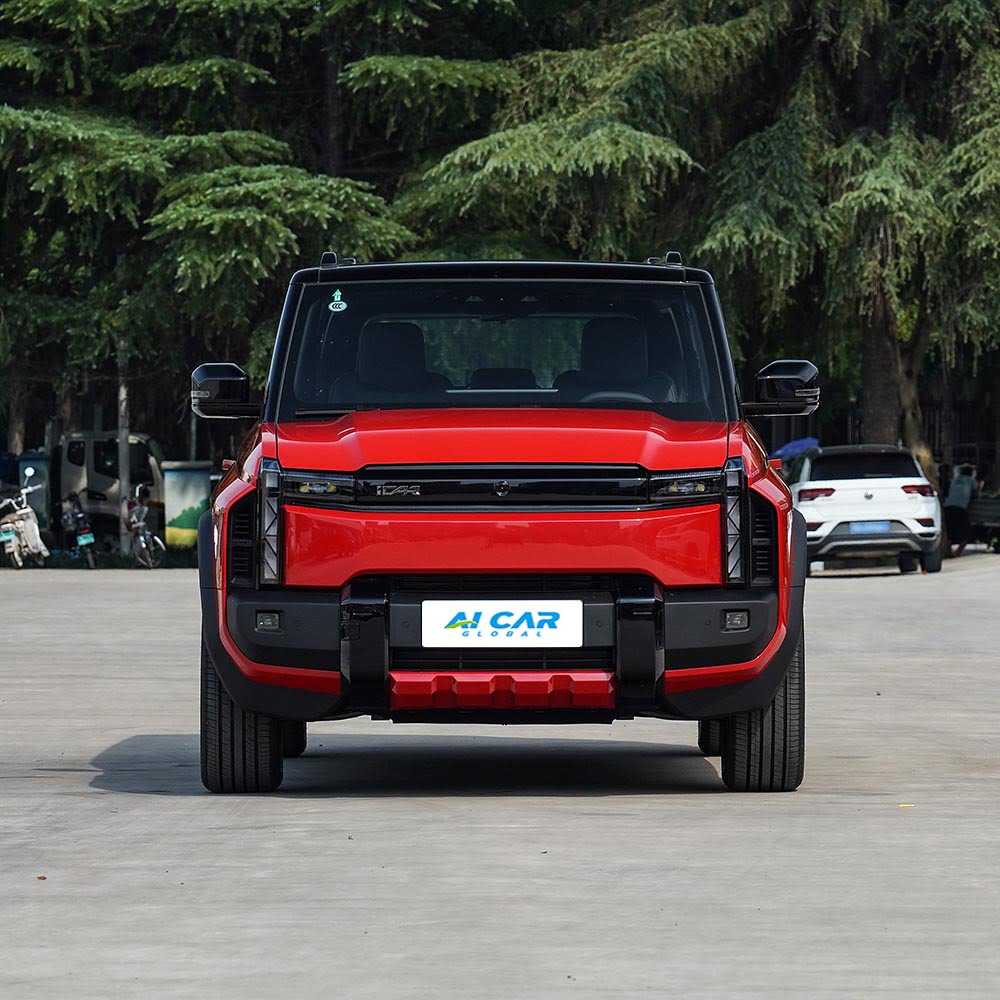

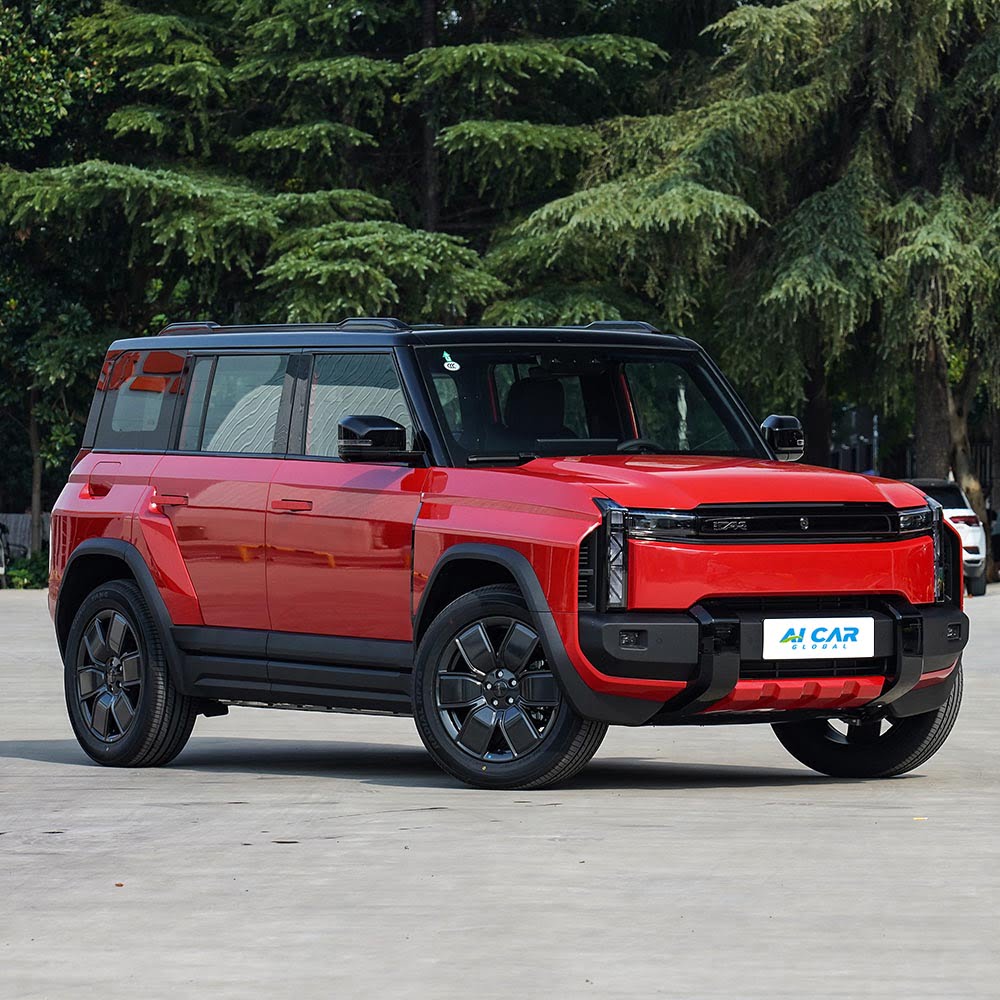

The iCAR 03T is equipped with an off-road style package that features a wider front fascia with air intakes on both sides and powerful wheel arches. The front bumper has a new design that enhances the vehicle’s wild look. The roof racks with integrated LED lights, which were fitted to the previously unveiled version, have been removed.

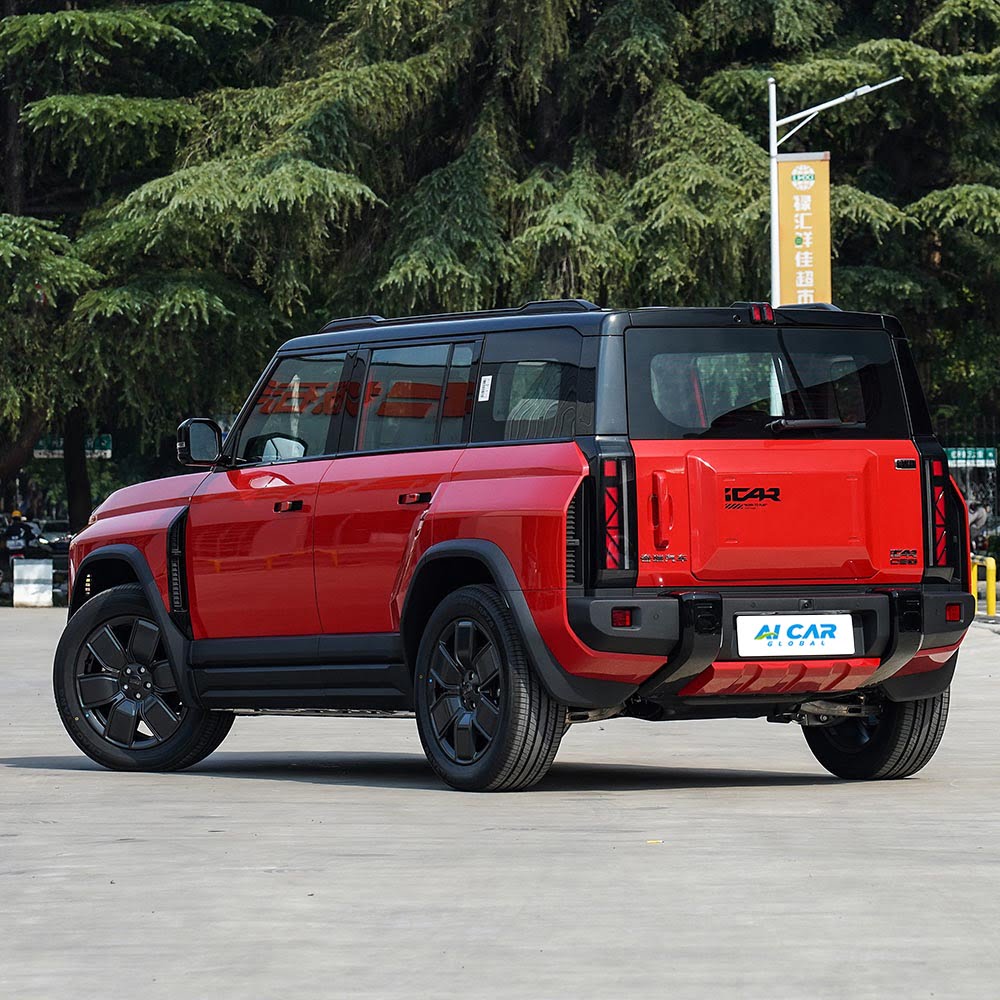

On the side, the new chassis is 15 millimeters higher than the regular model, with an unladen ground clearance of 200 millimeters, and a 28-degree approach angle, 31-degree departure angle and 20-degree passing angle, which provide greater passing power.

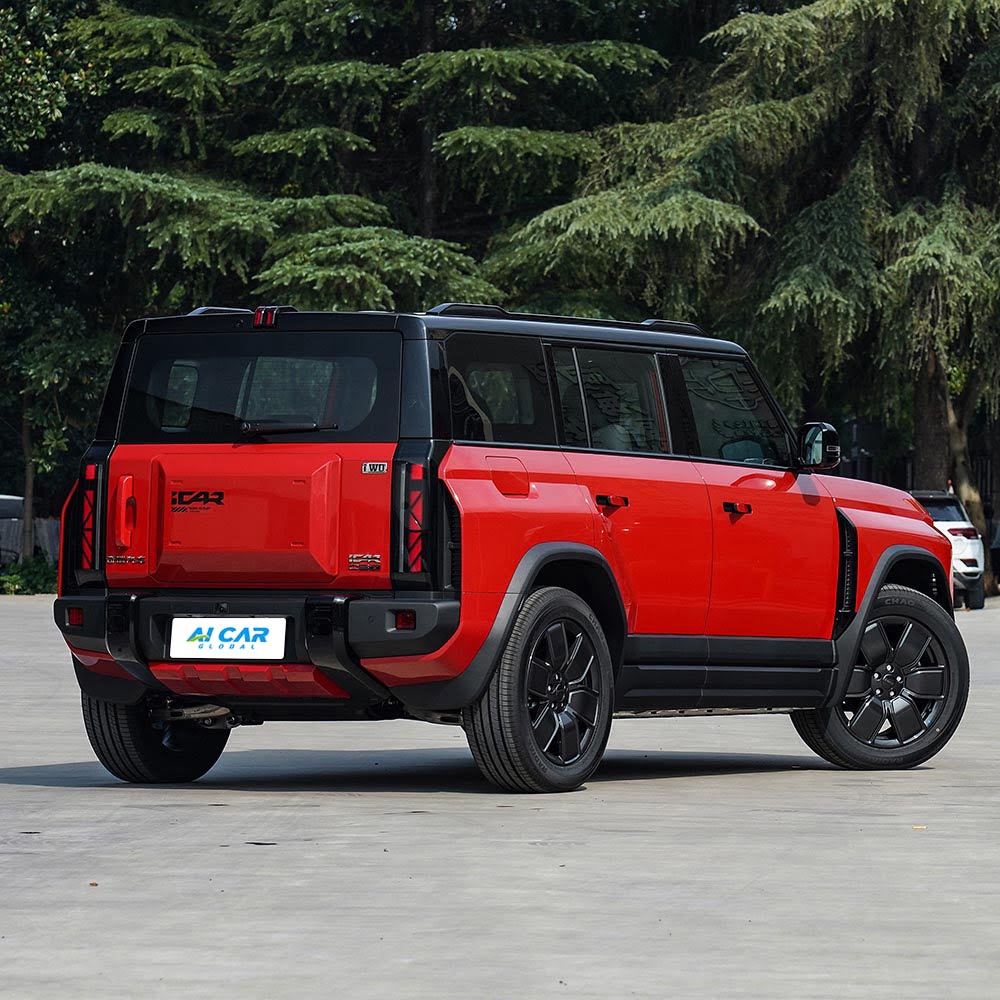

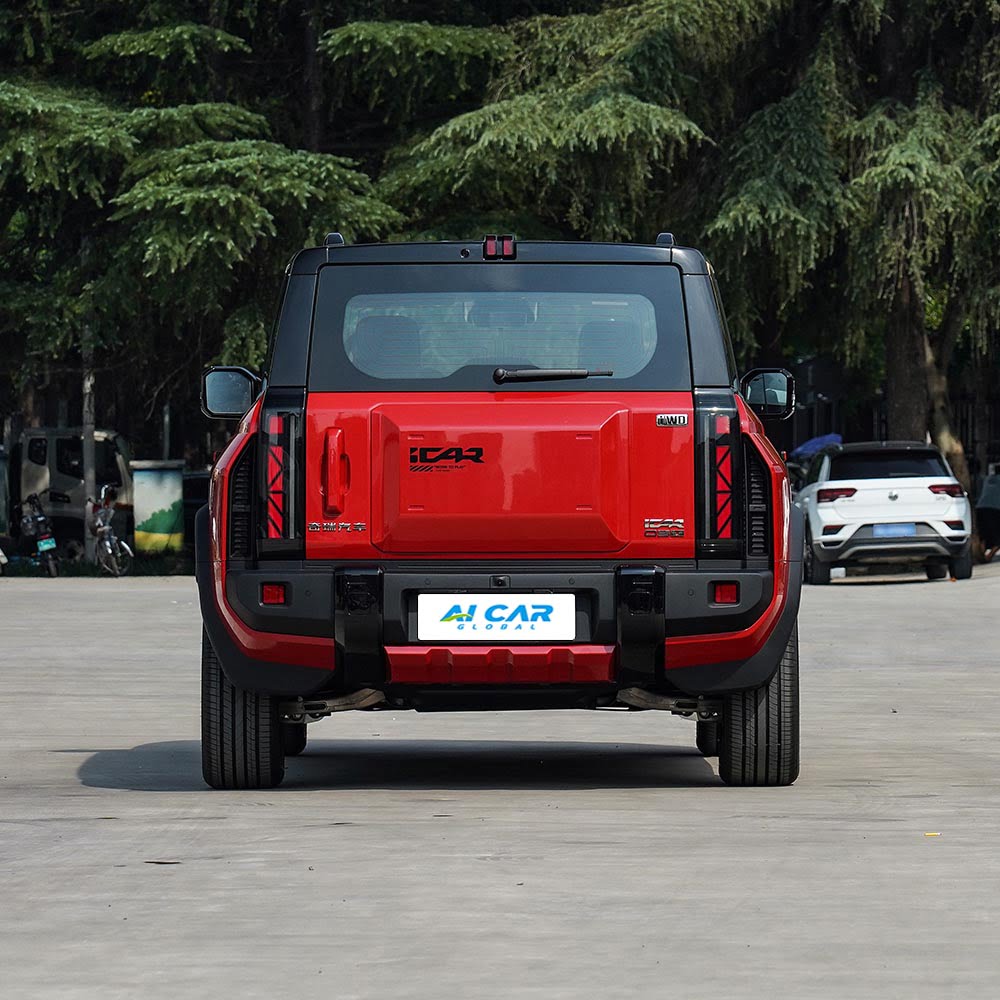

At the rear, the new car is equipped with a new off-road style rear bumper, which echoes the design of the front end. In terms of dimensions, the iCAR 03T measures 4,380 mm in length, 1,916 mm in width and 1,741 mm in height, with a wheelbase of 2,715 mm.
Interior Design

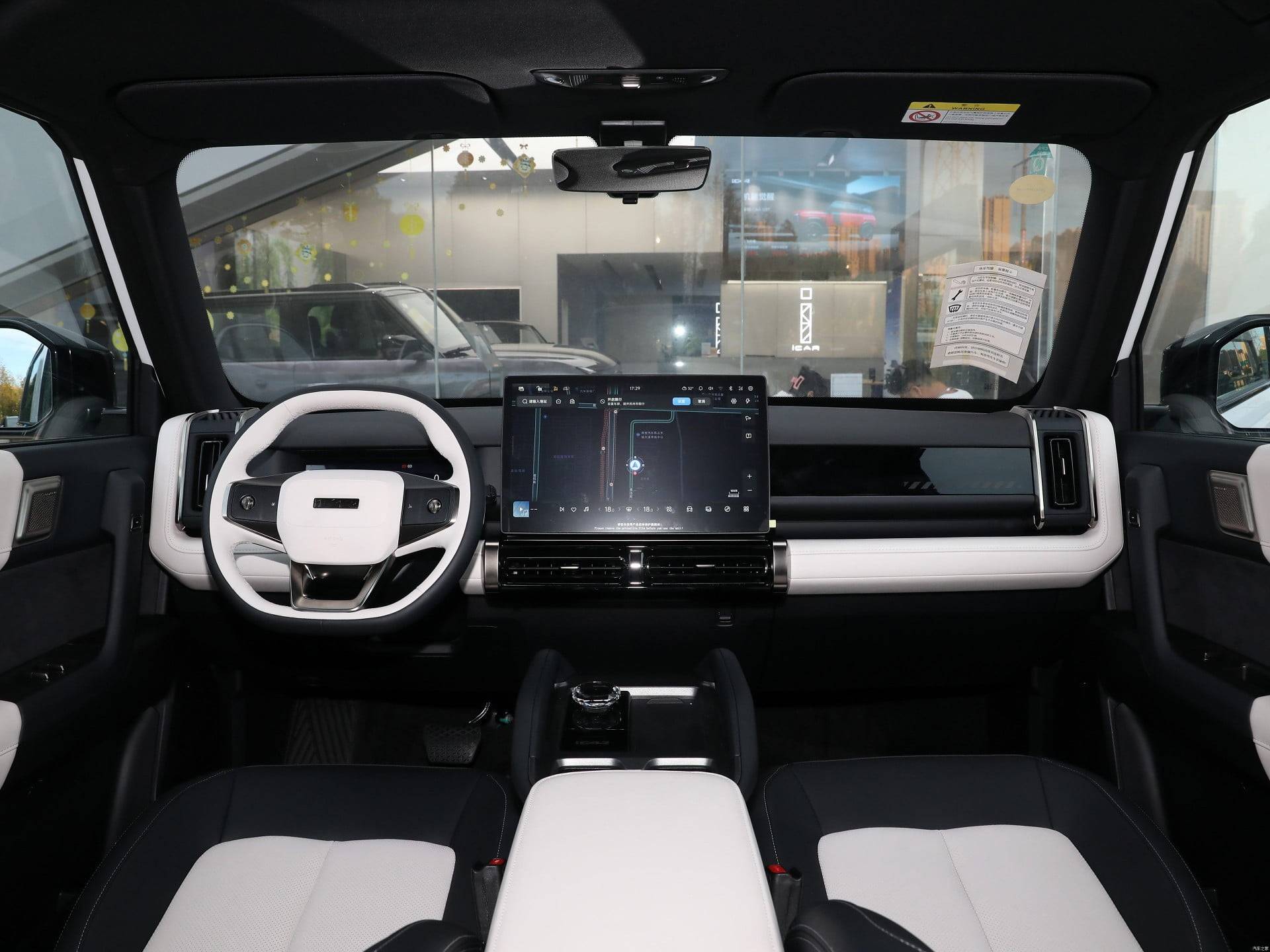

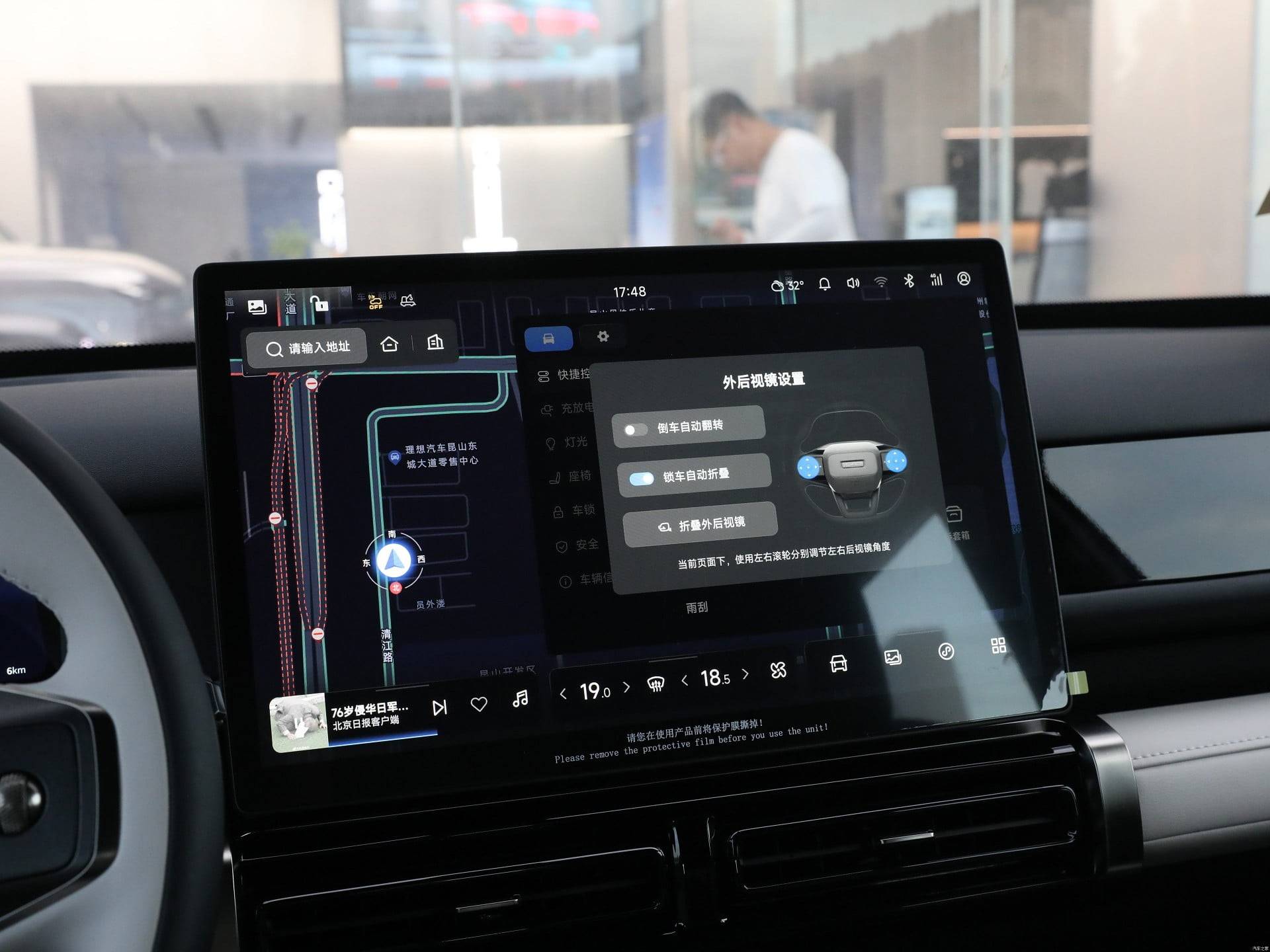

The new car is equipped with 9.2-inch full LCD digital instrumentation and 15.6-inch intelligent IMAX center control screen. The in-vehicle system is equipped with Qualcomm Snapdragon 8155 cockpit chip, which supports multi-functional intelligent voice control, cell phone App remote car control, car-machine interconnection mapping (Hicar), and 50W wireless charging for cell phones, and other functions.
Power
The iCAR 03T is available in single-motor two-wheel drive and dual-motor four-wheel drive. The single-motor version has a maximum power of 135 kW, while the front and rear motors of the dual-motor version have a maximum power of 70 kW and 135 kW respectively. The two-motor model is equipped with the iWD intelligent electric four-wheel drive system, which provides a variety of driving modes. The range is 520 kilometers for the 2WD version and 501 kilometers for the 4WD version.
| 2024 iCAR 03T 520km 2WD Long Range Edition | 2024 iCAR 03T 501km 4WD Long Range Edition | |
|---|---|---|
| Basic Information | ||
| Availability | 2024.08 | 2024.08 |
| vehicle class | Compact SUV | Compact SUV |
| Length*Width*Height(mm) | 4380*1916*1741 | 4380*1916*1741 |
| Type of energy | all-electric | all-electric |
| CLTC pure electric range (km) | 520 | 501 |
| Total motor power (kW) | 135 | 205 |
| Total motor torque (N-m) | 220 | 385 |
| Maximum speed (km/h) | 150 | 150 |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery capacity (kWh) | 69.77 | 69.77 |
| Fast charging time (h) | 0.5 | 0.5 |
| Fast charging capacity (%) | 30-80 | 30-80 |
| body of automobile | ||
| Length (mm) | 4380 | 4380 |
| Width (mm) | 1916 | 1916 |
| Height (mm) | 1741 | 1741 |
| Wheelbase (mm) | 2715 | 2715 |
| Front wheelbase(mm) | 1626 | 1626 |
| Rear wheelbase(mm) | 1645 | 1645 |
| Weight (kg) | 1817 | 1914 |
| Number of doors (pcs) | 5 | 5 |
| Number of seats (pcs) | 5 | 5 |
| electric motor | ||
| Total motor power (kW) | 135 | 205 |
| Total motor torque (N-m) | 220 | 385 |
| Maximum power of front electric motor (kW) | - | 70 |
| Maximum torque of front motor (N-m) | - | 165 |
| Maximum power of rear electric motor (kW) | 135 | 135 |
| Maximum torque of rear motor (N-m) | 220 | 220 |
| CLTC pure electric range (km) | 520 | 501 |
| Battery capacity (kWh) | 69.77 | 69.77 |
| 100km power consumption (kWh/100km) | 15.5 | 16.5 |
| Electricity-equivalent fuel consumption (L/100km) | 1.8 | 1.92 |
| Fast charging time (h) | 0.5 | 0.5 |
| Motor structure | permanent magnetism | permanent magnetism |
| Principle of motor operation | synchronization | synchronization |
| Number of drive motors | single motor | Dual Motor |
| Motor Layout | place after (e.g. in grammar) | front and rear |
| Battery Type | lithium iron phosphate battery | lithium iron phosphate battery |
| Battery Cell Brands | Ningde Times | Ningde Times |
| Battery cooling method | liquid cooling | liquid cooling |
| fast charging function | be in favor of | be in favor of |
| Fast charging capacity (%) | 30-80 | 30-80 |
| Battery preheating | โ | โ |
| external discharge | โ | โ |
| Chassis/steering | ||
| Driving form | rear drive | four-wheel drive |
| Front suspension type | MacPherson independent suspension | MacPherson independent suspension |
| Rear suspension type | H-arm multilink independent suspension | H-arm multilink independent suspension |
| Steering assist form | electric power assist | electric power assist |
| peristaltic mode | - | โ |
| Tank Turn | - | โ |
| Wheels/Brakes | ||
| Front/Rear Brake Type | Ventilated Disc Type / Disc Type | Ventilated Disc Type / Disc Type |
| Parking brake type | electronic parking | electronic parking |
| Front Tire Specification | 245/55 R19 | 245/55 R19 |
| Rear Tire Specification | 245/55 R19 | 245/55 R19 |
| Wheel Material | aluminum | aluminum |
| Active/passive safety features | ||
| ABS anti-lock | โ | โ |
| Brake force distribution (EBD/CBC etc.) | โ | โ |
| Brake Assist (BA/EBA/BAS etc.) | โ | โ |
| Traction control (ASR/TCS/TRC etc.) | โ | โ |
| Stability Control (ESC/ESP/DSC etc.) | โ | โ |
| Active braking/safety systems | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| merging aid | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| lane keeping assist system | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| lane departure warning | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| Automatic Lane Change Assist | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| Road traffic signage recognition | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| DOW Open Door Alert | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| front exhaust airbag | :: Driver's airbag | :: Driver's airbag |
| โPassenger airbag | โPassenger airbag | |
| โSide airbags | โSide airbags | |
| โHead airbags (air curtains) | โHead airbags (air curtains) | |
| Rear airbags | โHead airbags (air curtains) | โHead airbags (air curtains) |
| Tire Pressure Detection Device | โDisplay | โDisplay |
| Seat Belt Reminder | โPrincipal Driver | โPrincipal Driver |
| โPassenger | โPassenger | |
| ISOFIX child restraints | โ | โ |
| Forward Collision Warning | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| Rear Collision Warning | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| Anti-Rollover System | โ | โ |
| Auxiliary/Manipulation Configurations | ||
| parking radar | โForward | โForward |
| โ Post | โ Post | |
| Driver Assistance Video | โ360-degree panoramic image | โ360-degree panoramic image |
| Transparent chassis/540 degree image | โ | โ |
| cruise control | โCruise control | โCruise control |
| โAdaptive cruise at all speeds | โAdaptive cruise at all speeds | |
| Driving Mode Switching | :: Campaigns | :: Campaigns |
| :: Economy | :: Economy | |
| :: Standard/comfort | :: Standard/comfort | |
| โ Customization/Personalization | :: Snow | |
| โ Off-road | ||
| โ Customization/Personalization | ||
| steep incline and slow descent | โ | โ |
| hill-holding aid | โ | โ |
| automatic parking | โ | โ |
| automatic parking | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| remote control | character used in Taiwan as a substitute for a real name (like "X" in English) | character used in Taiwan as a substitute for a real name (like "X" in English) |
| Assisted driving level | โL2 | โL2 |
| Autopilot-assisted roadway | โHighway section | โHighway section |
| External/anti-theft configurations | ||

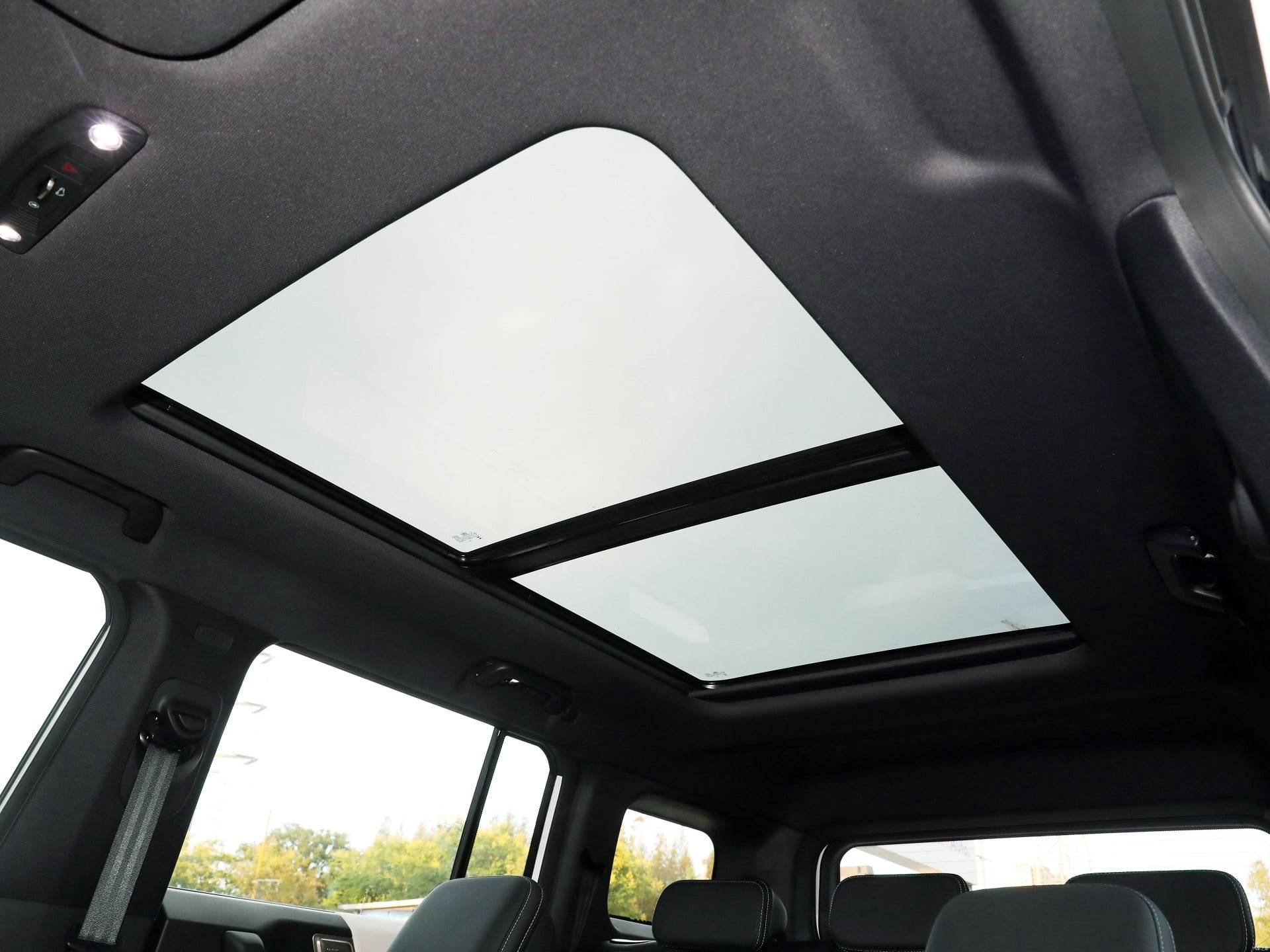

| skylights | โOpenable panoramic sunroof | โOpenable panoramic sunroof |
| roof rack | โ | โ |
| Electric Suction Door | - | โ |
| Concealed power door handles | โ | โ |
| Key Type | โRemote key | โRemote key |
| โ Bluetooth key | โ Bluetooth key | |
| Keyless entry | โ | โ |
| Keyless Start System | โ | โ |
| Remote start function | โ | โ |
| Central locking in the car | โ | โ |
| Internal Configuration | ||

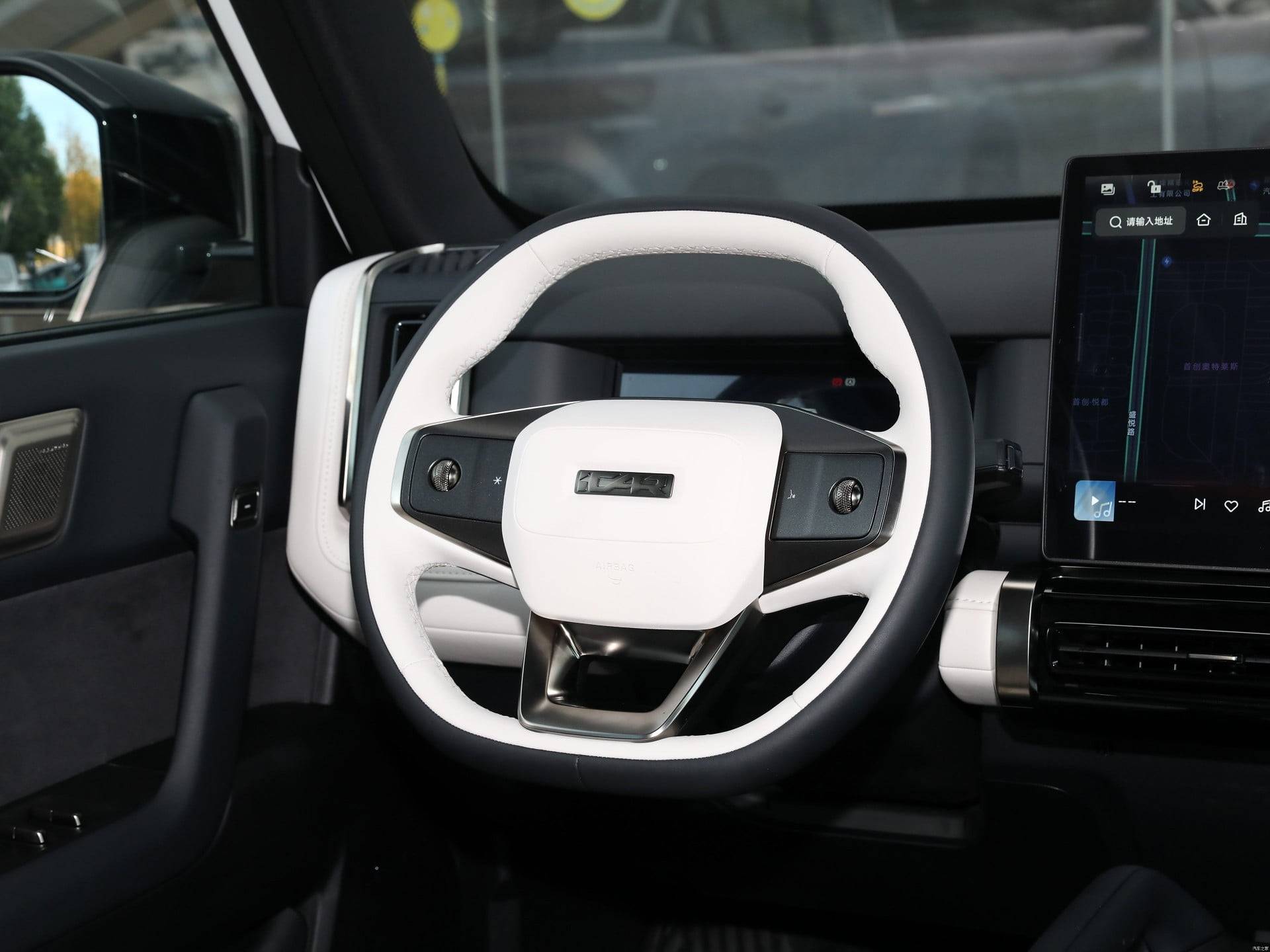

| Steering wheel material | โ Leather | โ Leather |
| Steering Wheel Adjustment | โ Manual | โ Manual |
| Adjustable up and down | Adjustable up and down | |
| Adjustable front and rear | Adjustable front and rear | |
| Steering wheel functions | โHeating | โHeating |
| :: Multifunctionality | :: Multifunctionality | |
| center armrest | โForward | โForward |
| โ Post | โ Post | |

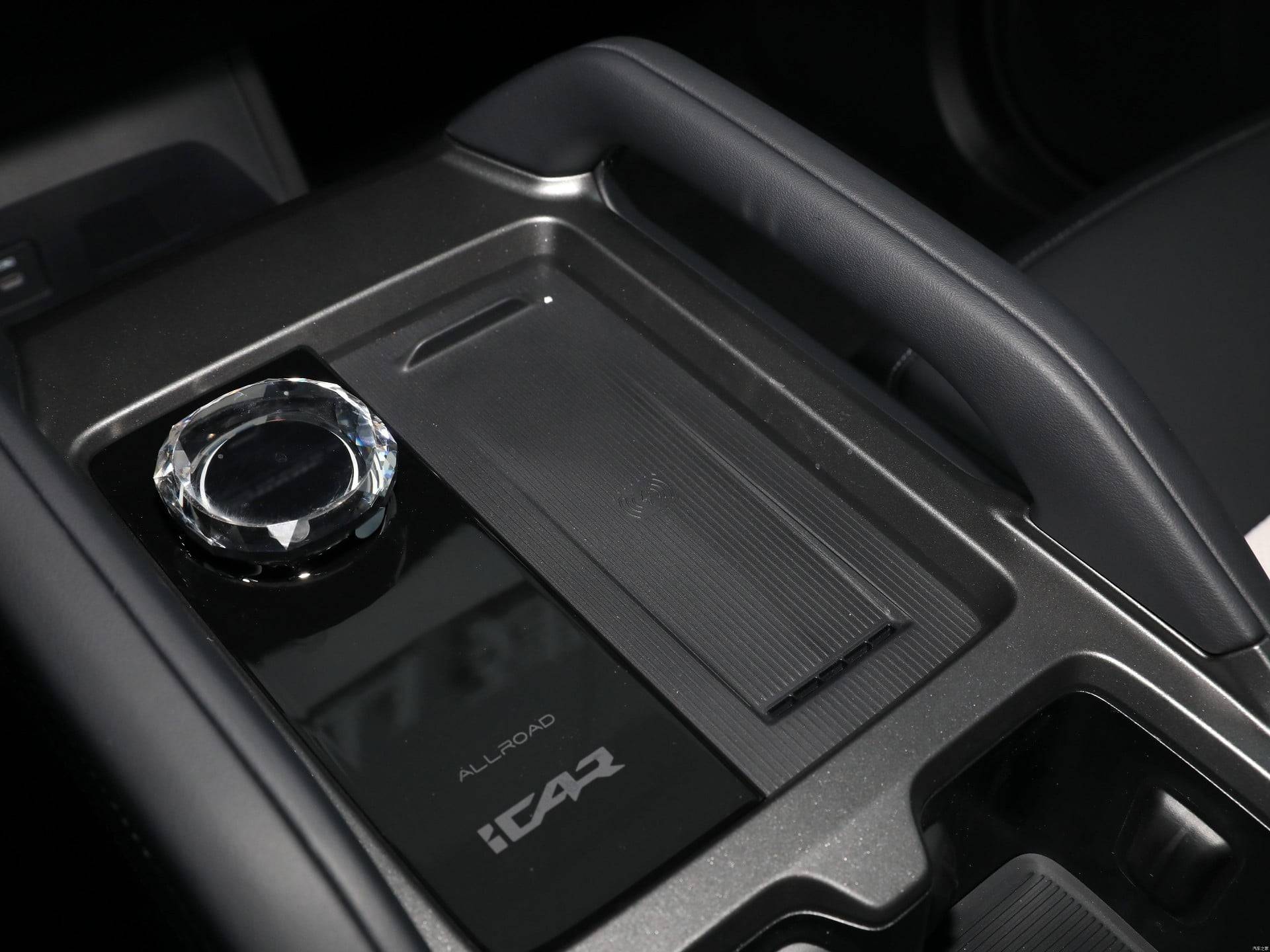

| Gear Shift Form | โElectronic pocket shifter | โElectronic pocket shifter |
| Sun visor vanity mirror | โ | โ |
| Liquid crystal instrument size | 9.2 in. | 9.2 in. |
| Built-in car recorder | โ | โ |
| Wireless charging function for cell phones | โ Front row | โ Front row |
| Intelligent Hardware | ||
| Forward Sensing Camera | โTwin Eyes | โTwin Eyes |
| Number of cameras | :: 4 | :: 4 |
| โ7 | โ7 | |
| Number of ultrasonic radars | :: 8 | :: 8 |
| Number of millimeter-wave radars | โ3 | โ3 |
| seating | ||
| Seat Material | :: Imitation leather | :: Imitation leather |
| Main Driver's Seat Function | :: Memory | :: Memory |
| :: Ventilation | :: Ventilation | |
| โHeating | โHeating | |
| Passenger seat function | :: Memory | :: Memory |
| :: Ventilation | :: Ventilation | |
| โHeating | โHeating | |

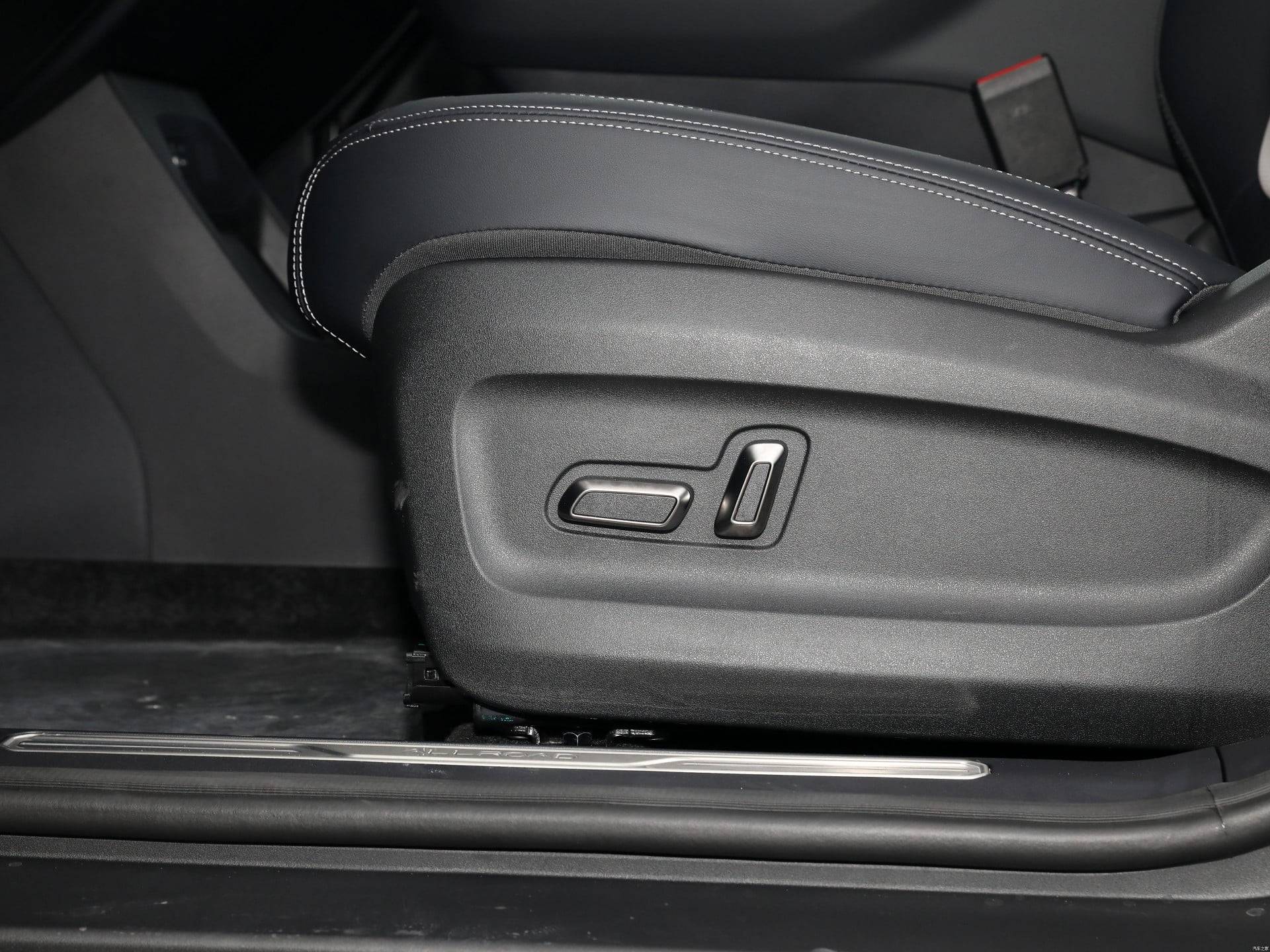

| Seat electric adjustment | โPrincipal Driver | โPrincipal Driver |
| โPassenger | โPassenger | |
| Integral adjustment of the main driver's seat | โBefore and after | โBefore and after |
| โBackrests | โBackrests | |
| โHigh/Low (2-way) | โHigh/Low (2-way) | |
| Passenger seat overall adjustment | โBefore and after | โBefore and after |
| โBackrests | โBackrests | |

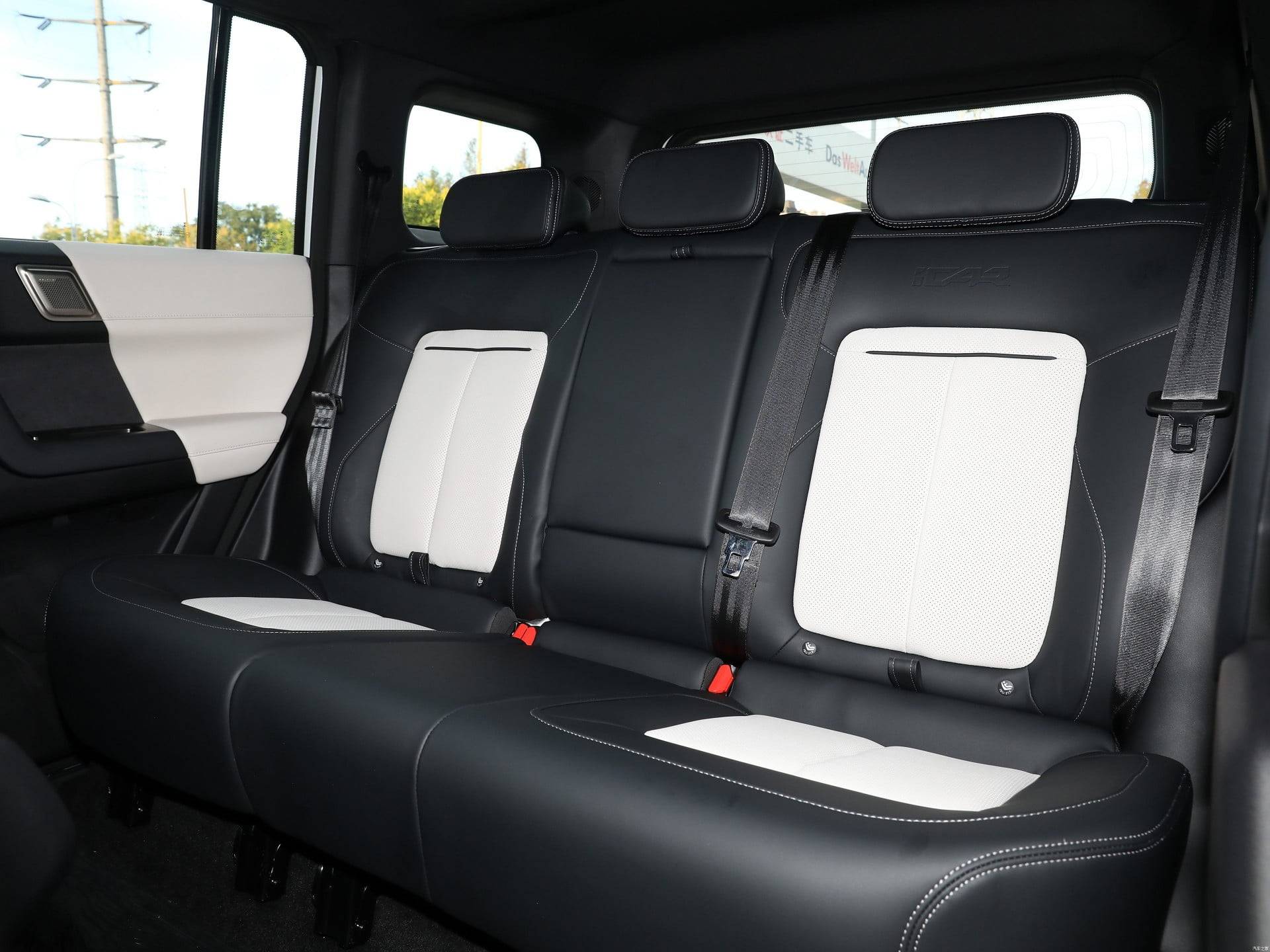

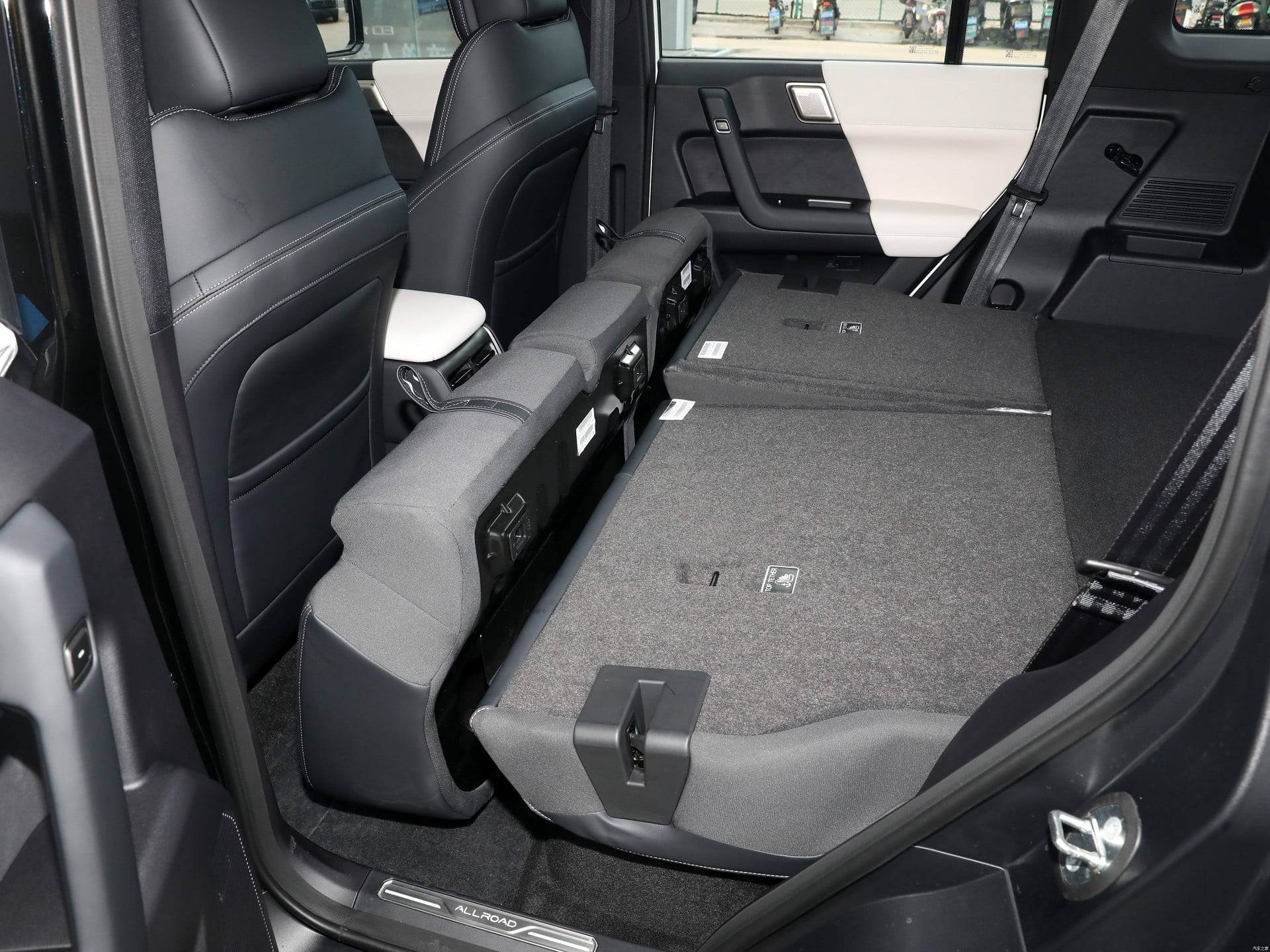

| Second row seat adjustment | โProportional lowering | โProportional lowering |

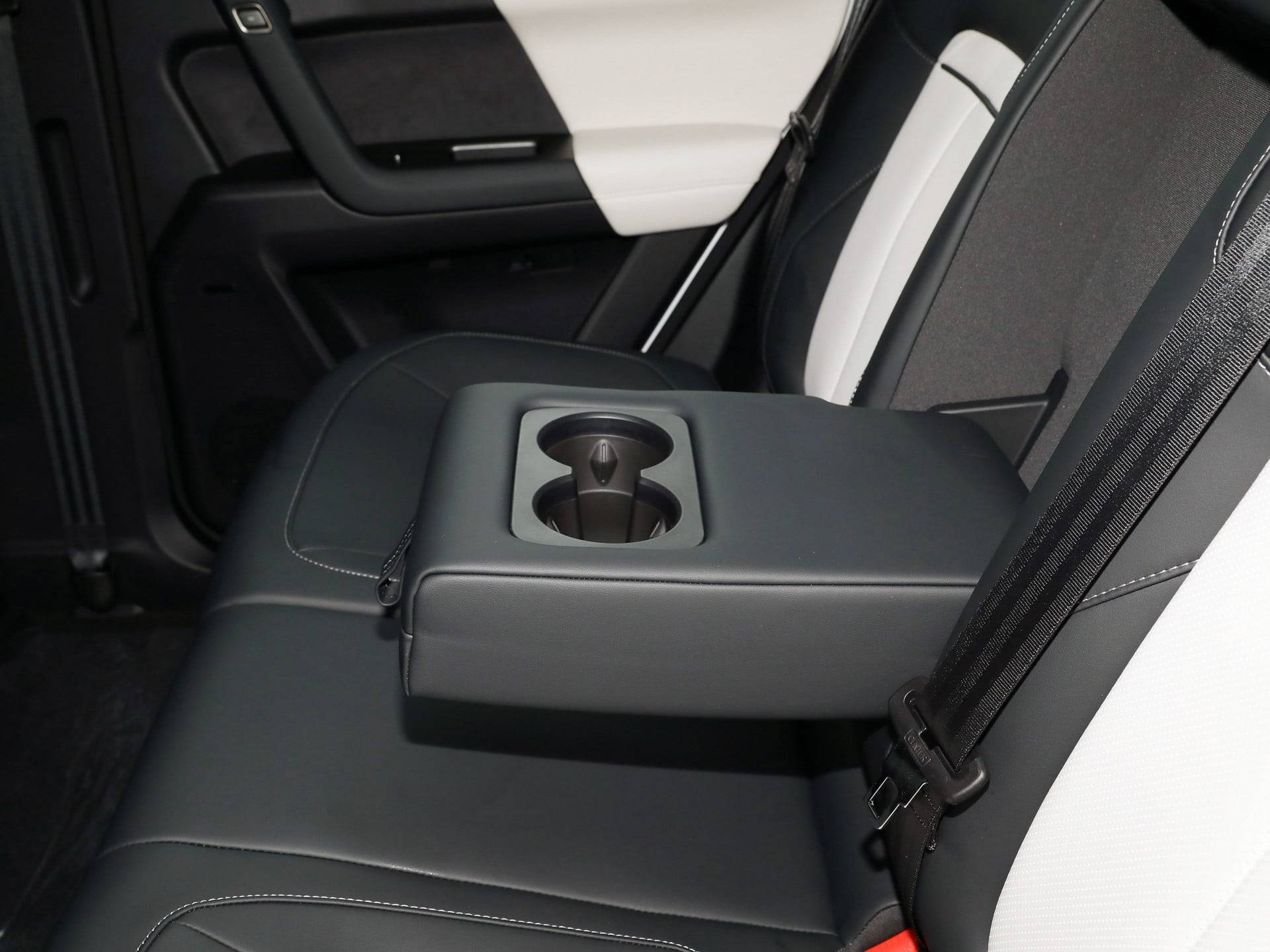

| Rear Cup Holder | โ | โ |
| multimedia | ||
| Large color screen in the center console | โTouch LCD | โTouch LCD |
| satellite navigation system | โ | โ |
| Navigating the road information display | โ | โ |
| Map Branding | โGold | โGold |
| โTencent | โTencent | |
| In-vehicle Intelligent System | โi-VA | โi-VA |
| Automotive Intelligence Chip | Qualcomm Snapdragon 8155 | Qualcomm Snapdragon 8155 |
| Bluetooth/Car Phone | โ | โ |
| Cell phone connectivity/mapping | โSupport HUAWEI HiCar | โSupport HUAWEI HiCar |
| Number of audio speakers | 8 | 8 |
| Voice Recognition Control System | :: Multimedia systems | :: Multimedia systems |
| :: Navigation | :: Navigation | |
| :: Telephone | :: Telephone | |
| :: Air conditioning | :: Air conditioning | |
| โSunroof | โSunroof | |
| โ Window | โ Window | |
| Center screen size | โ15.6 inches | โ15.6 inches |
| 4G/5G networks | โ4G | โ4G |
| Telematics | โ | โ |
| OTA upgrade | โ | โ |

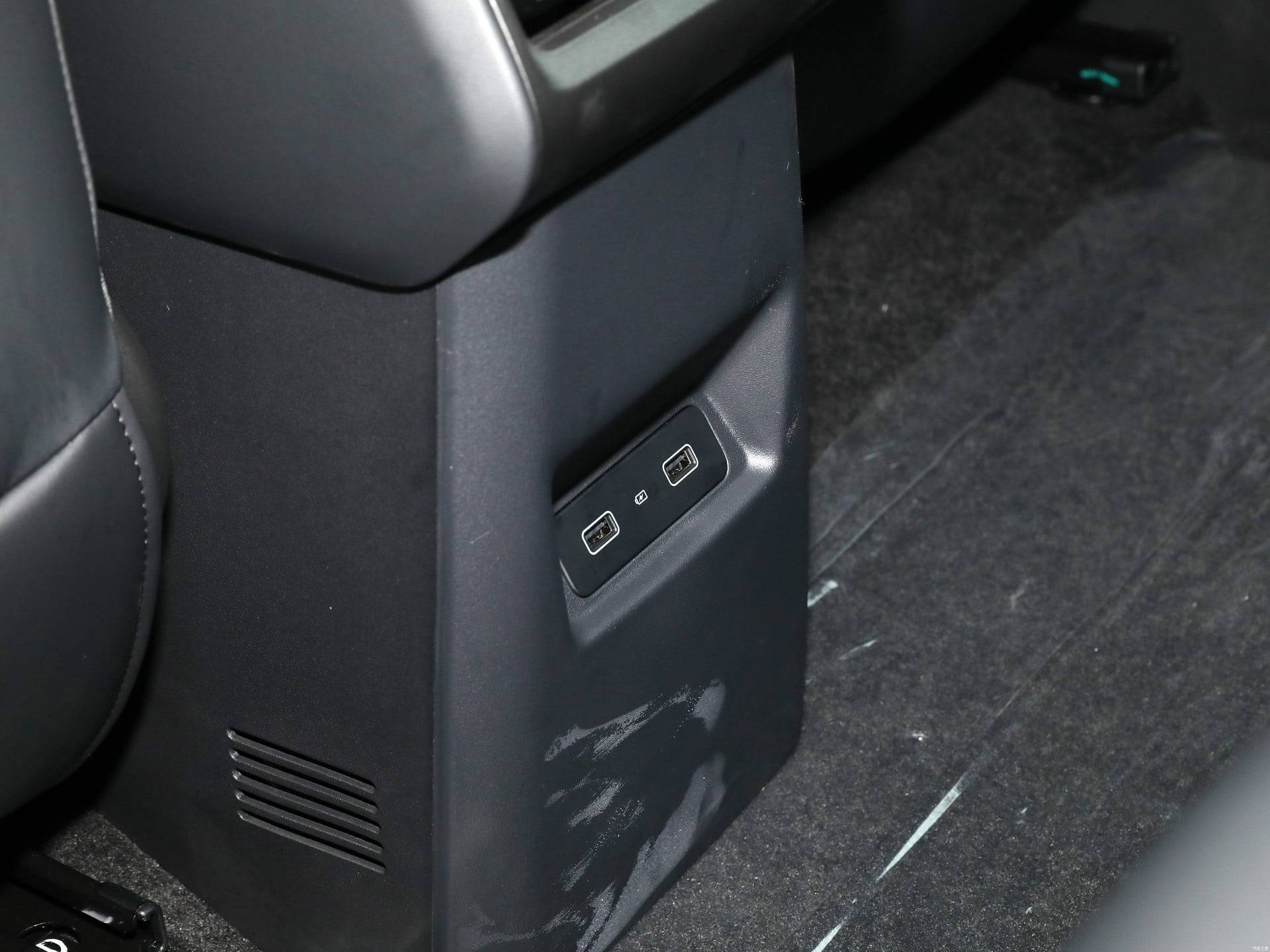

| Interface Support | โ USB port | โ USB port |
| โType-C port | โType-C port | |
| Power Support | โLuggage compartment 12V power supply | โLuggage compartment 12V power supply |
| (stage) lighting | ||
| low beam (headlights) | โLED | โLED |
| high beam (headlights) | โLED | โLED |
| LED daytime running lights | โ | โ |
| Adjustable headlights | โ | โ |
| Automatic headlights | โ | โ |
| Delayed headlight off | โ | โ |
| front fog lights (of a motor vehicle) | โ | โ |
| Glass/Mirror | ||

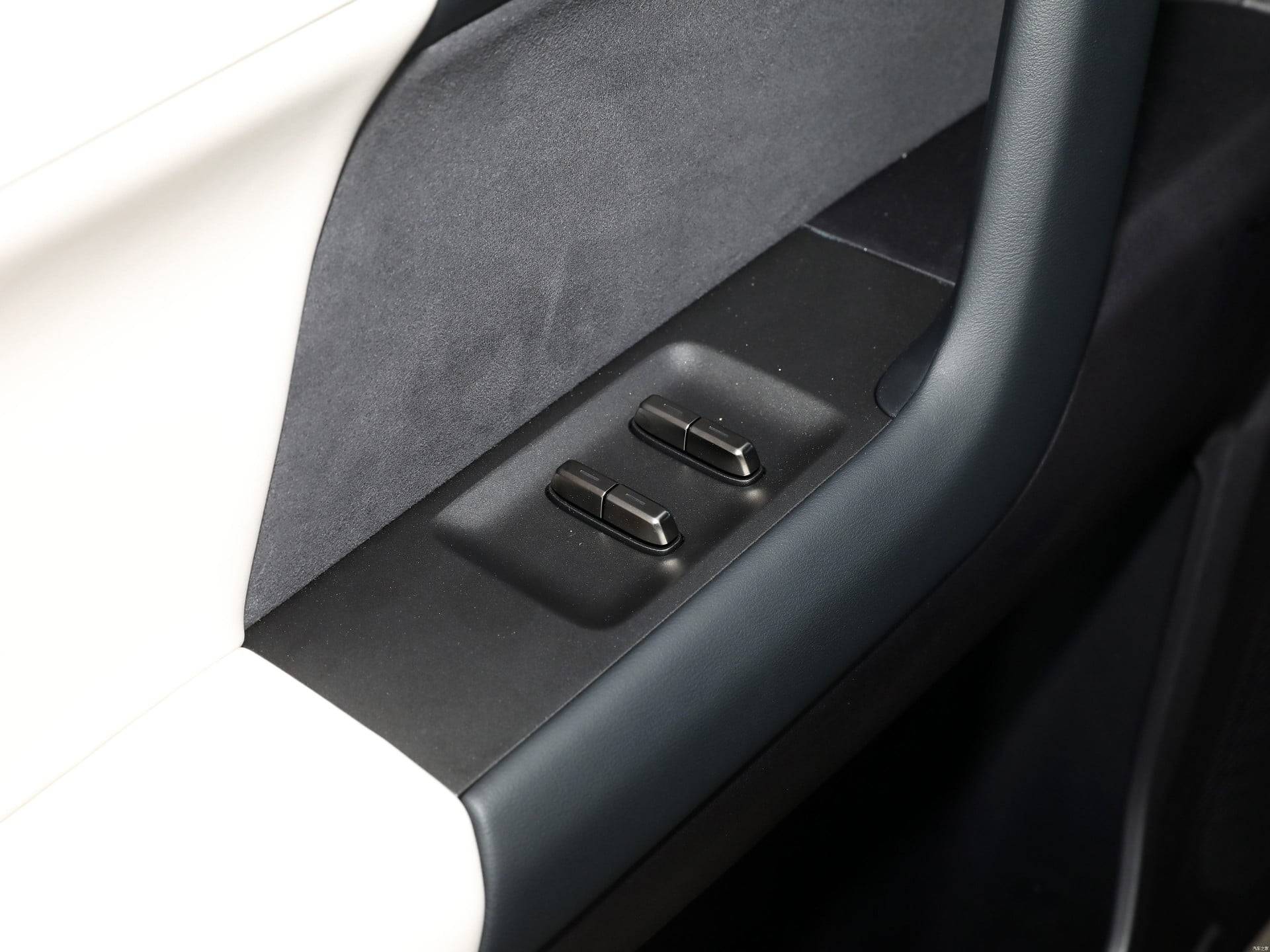

| power window | โFront | โFront |
| โ Post | โ Post | |
| One-touch window lifting | โ Full vehicle | โ Full vehicle |
| Anti Window Pinch Handle | โ | โ |
| outside rearview mirror | โMotorized adjustment | โMotorized adjustment |
| :: Electric folding | :: Electric folding | |
| :: Memory | :: Memory | |
| โHeating | โHeating | |
| โAutomatic folding for locking the car | โAutomatic folding for locking the car | |
| โAutomatic reversing down | โAutomatic reversing down | |
| rearview mirror | โManual anti-glare | โManual anti-glare |
| Glass Functions | :: Multi-layer soundproofing | :: Multi-layer soundproofing |
| inductive wiper | โ | โ |
| Air conditioners/refrigerators | ||
| Air conditioning control method | โ Automatic control | โ Automatic control |

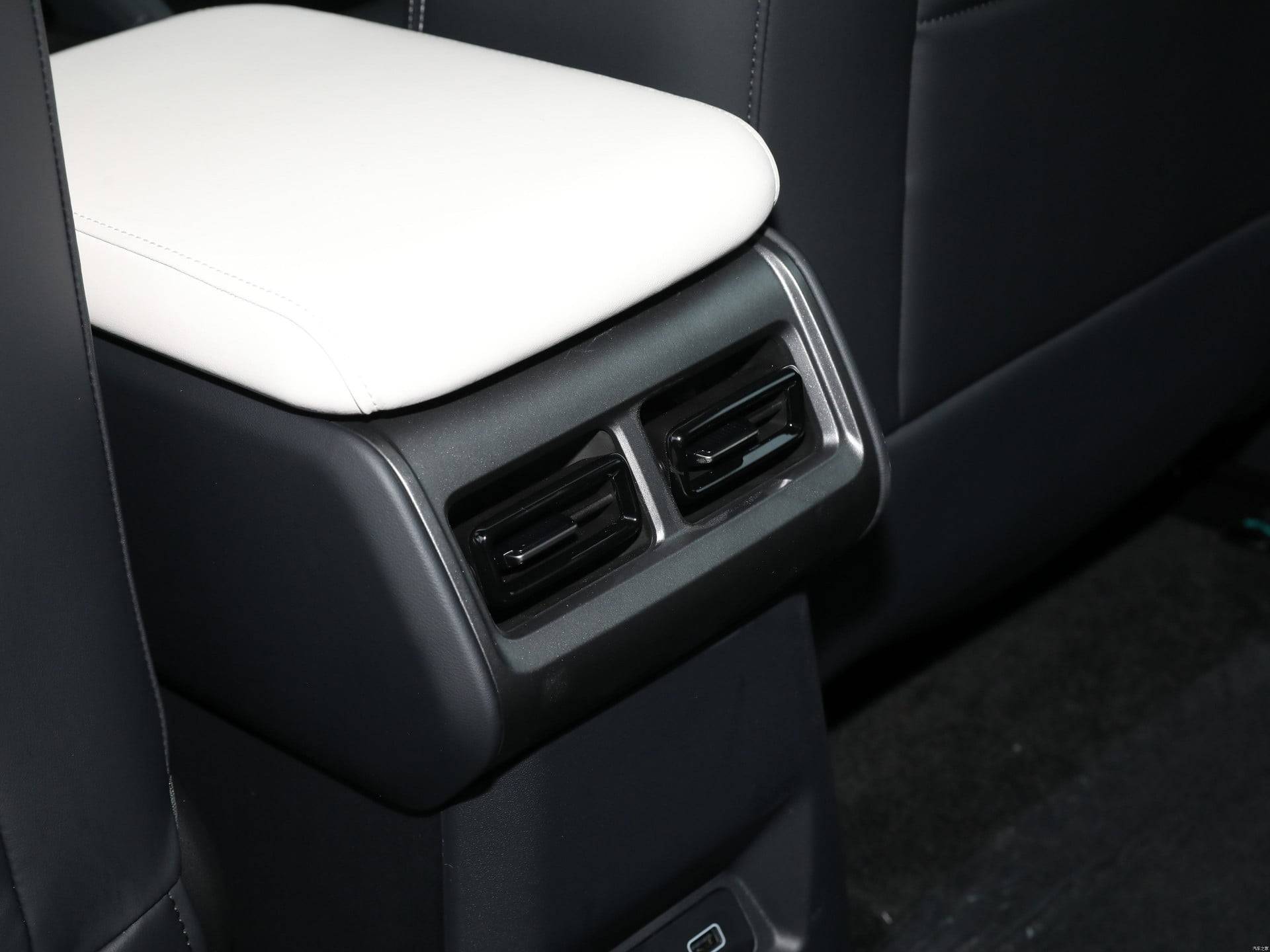

| rear air vent | โ | โ |
| Temperature zone control | โ | โ |
| PM2.5 filtration | โ | โ |
